C H A P T E R 1
About your interactive flat panel

Left side view

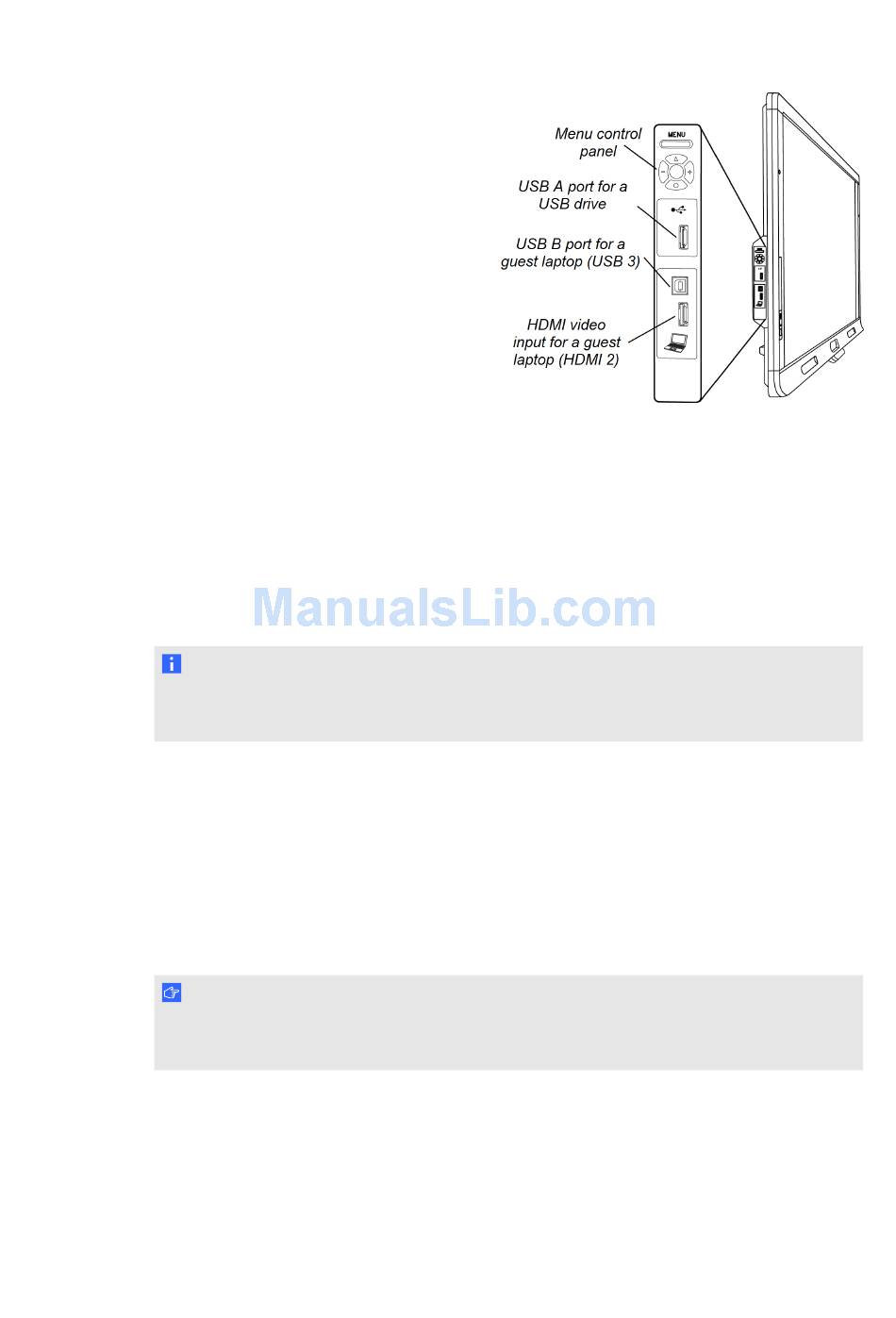

The left side of your interactive flat panel has
the menu control panel and the side terminal
panel.

Menu control panel

The menu control panel enables you to access the on-screen display menu to adjust display and
audio settings.For more information on the on-screen display menu, see Adjusting video settings
with the on-screen display menu on page 69.

USB port

The USB port takes a USB type A connector, such as a USB memory drive.For more information
on this port, see Using the USB port on page 42.
N O T E
You can disable this USB port so that a computer cannot access it.For instructions, see
Disabling the USB port on the side terminal panel on page 19.

Side terminal panel

The side terminal panel has USB and HDMI ports for connecting a guest laptop.For more
information on the side terminal panel, see Connecting a guest laptop on page 43.

Back view

The back of the interactive flat panel includes the bottom terminal panel, the inside terminal panel
and the speaker wire connections.
I M P O R T A N T
Connect all required cables before you wall-mount your interactive flat panel. Some connectors
could be inaccessible after wall mounting.
