Infrared Remote Control Sensor - Smarttech SMART Board 8055i User Manual

C H A P T E R 5
Using your interactive flat panel
g
To install batteries in the remote control
1. Press the tab on the underside of the remote control and then open the cover.
2. Remove the batteries if they are present.
3. Insert two new 1.5V AA batteries in the remote control.Ensure that the + and - markings on
the batteries align with the markings in the remote control.
4. Replace the cover.

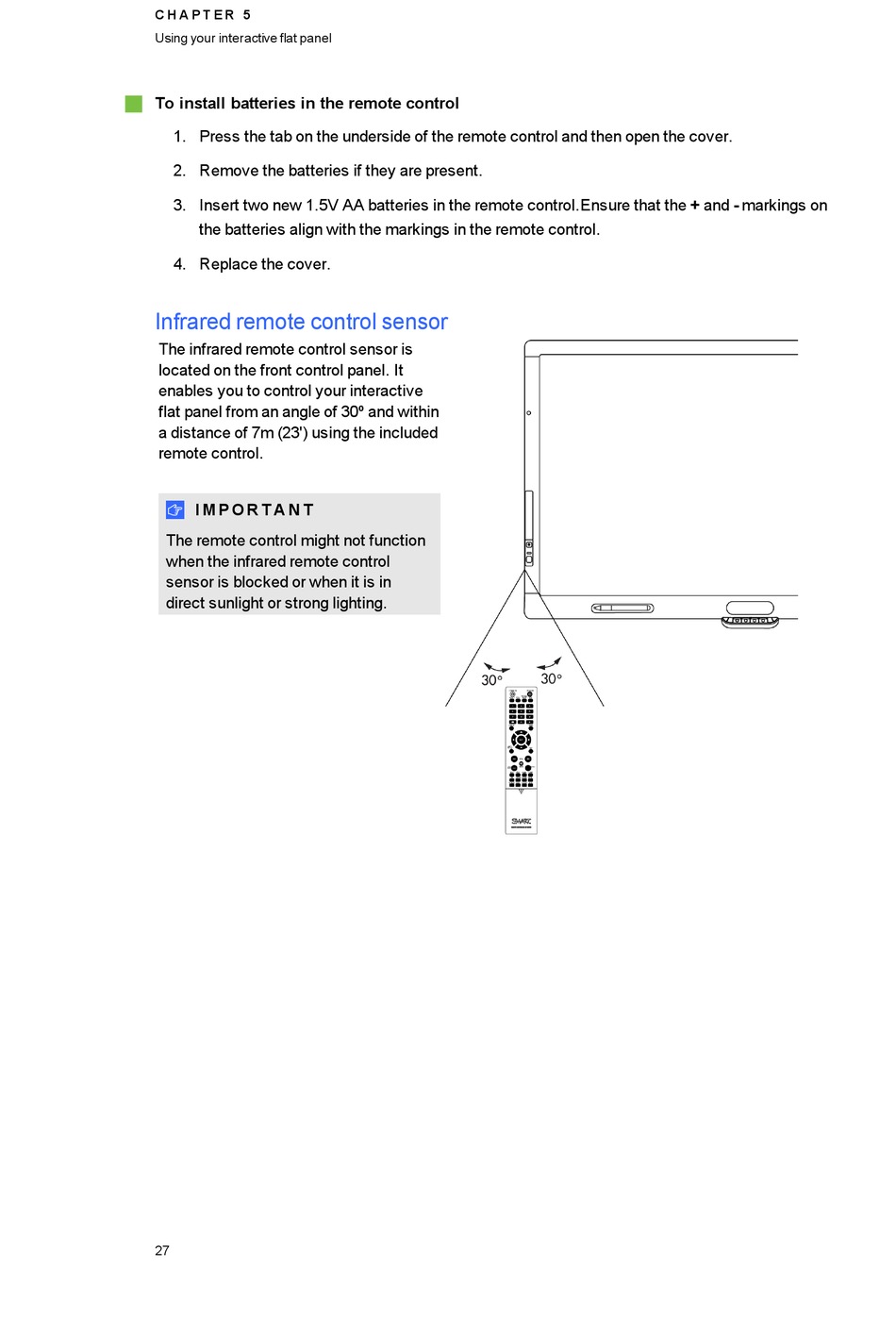

Infrared remote control sensor

The infrared remote control sensor is
located on the front control panel. It
enables you to control your interactive
flat panel from an angle of 30º and within
a distance of 7m (23') using the included
remote control.
I M P O R T A N T
The remote control might not function
when the infrared remote control
sensor is blocked or when it is in
direct sunlight or strong lighting.
27
