EdgeWave iPrism Web Security Administration Manual page 133

iPrism
If you are using a Management Interface, select a Mode (Auto, 100, or 1000) from the Mode
9.
dropdown list in the Management Interface frame. If you are not using the Management
Interface, leave the Mode as Disabled.
iPrism constantly resolves Internet host names to their IP address, as well as reverse map IP
10.
addresses to their host names. If iPrism's installed environment allows direct Internet access, it
will (by default) use its built-in name resolver to perform all DNS tasks. However, some
installations require that iPrism defer all DNS lookups to another name server, called the
forwarder name server. In these cases, you'll need to designate the IP address of this forwarder
name server.
Chapter 7 System Settings

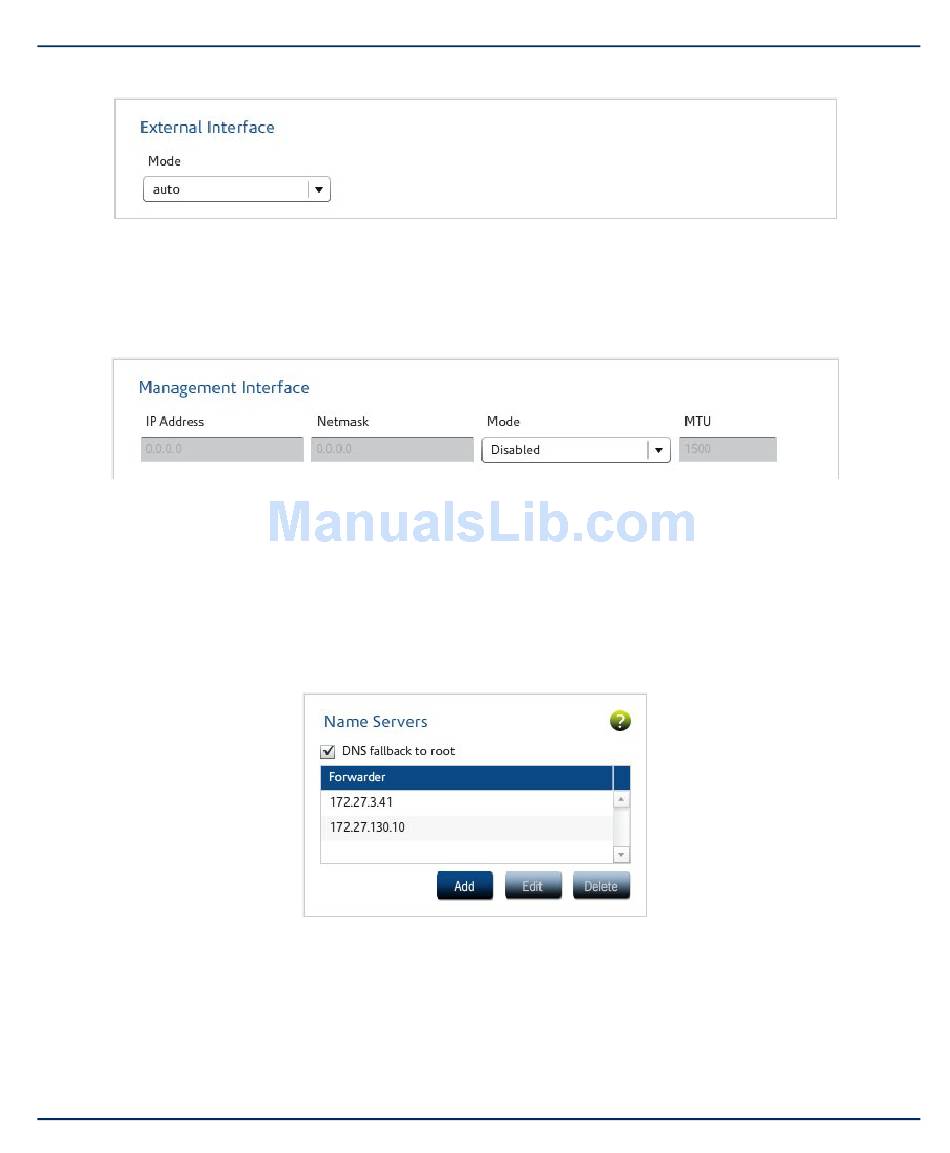

Figure 79. External Interface
Figure 80. Management Interface
Figure 81. Name Servers
Administration Guide
122
