iPrism
To set up iPrism on your network:
From the iPrism home page, select System Settings, then Network ID.
1.
In the Host Name field, type the fully qualified domain name of your iPrism host.
2.
Select a mode in which to configure your iPrism (Bridge (transparent) or Proxy (single-
3.
interface)).
In the Internal Interface frame, type the IP address of your iPrism's internal interface in the IP
4.
Address field. To verify which port is the internal interface, refer to the
In the Netmask field, type the netmask you want to use (e.g., 255.255.255.0).
5.
Select a mode (Auto, 10, or 100) from the Mode dropdown list.
6.
Type a value for the network parameter for Ethernet frame size in the MTU (maximum
7.
transmission unit) field if necessary (the default is 1500).
If you have checked Bridge (transparent) in step 3 above, the External Interface field frame will
8.
be enabled (if you have selected Proxy (single-interface), this frame will be disabled). Select a
Mode (Auto, 100, or 1000).
Chapter 7 System Settings

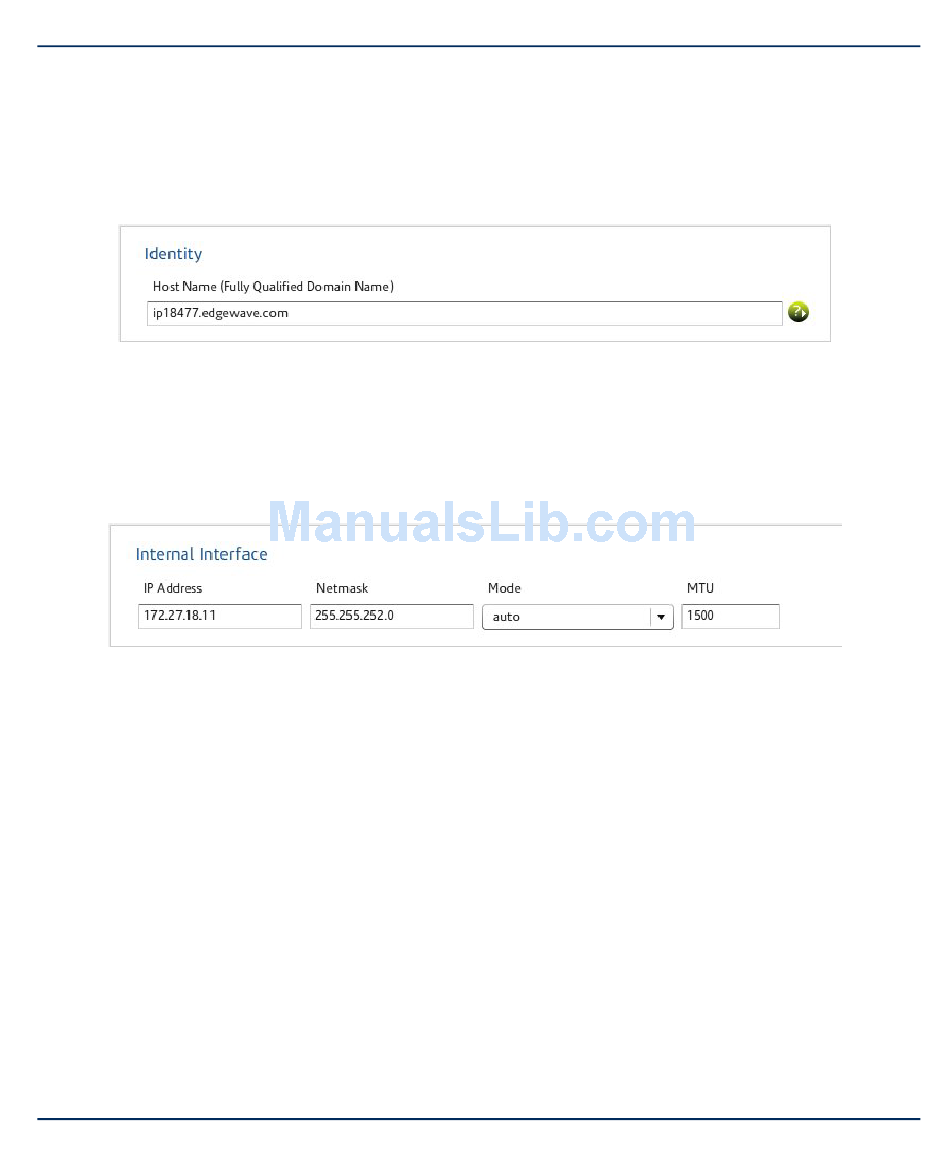

Figure 77. Network Identity
Figure 78. Internal Interface
Administration Guide
iPrism Installation Guide .
121
