iPrism
Click Test Settings to test LDAP server connectivity. Once connected, an LDAP bind attempt
5.
using administrative credentials is made to configure the base.
• If either the primary server or backup server test is successful, a notice indicating that the test
was successful is displayed.
• If the server test is successful, the backup server is not tested.
• If the server fails, then the backup server is tested.
• If there is an error with the connection or binding, a notice indicating at which point in the test
failed is displayed.
To test the server and ports, enter incorrect information for both the server and port and click
6.
Test Settings. When the server test fails due to the incorrect information, the backup server is
tested. The connect and bind process described above for the server test is attempted for the
backup server, and the appropriate success or error message is displayed.

Authentication from the User's Perspective

When a user first accesses the Internet, they are automatically authenticated if Auto-Login is
enabled and functioning. Otherwise, they see an authentication.
Type your username and password to be allowed onto the network.
1.
If necessary, select a domain from the Domain dropdown list.
2.
Type a session timeout (in minutes).
3.
Click Authenticate.
4.
Chapter 7 System Settings

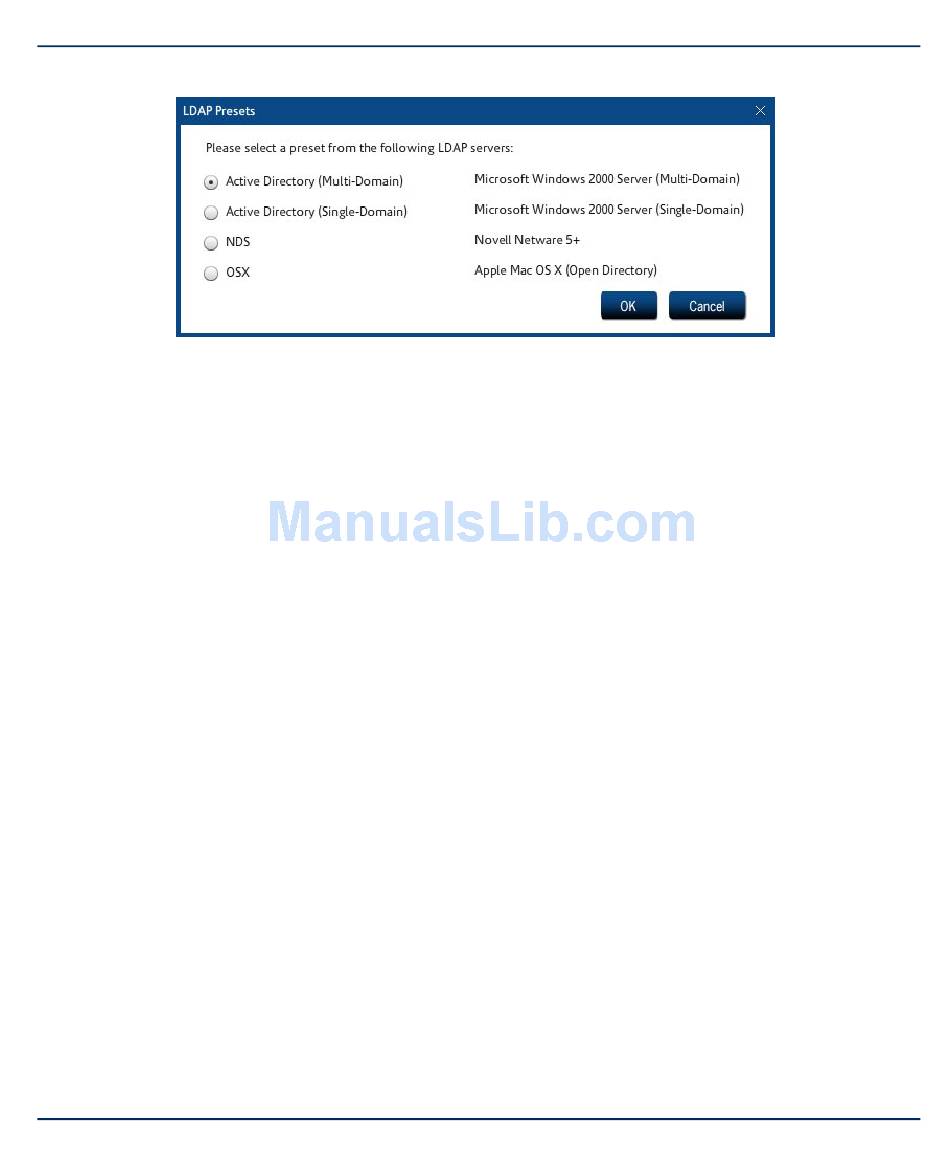

Figure 65. LDAP Presets
Administration Guide
105
