Xircom POCKET ETHERNET ADAPTER III User Manual page 30

\
(SOLID
RED)

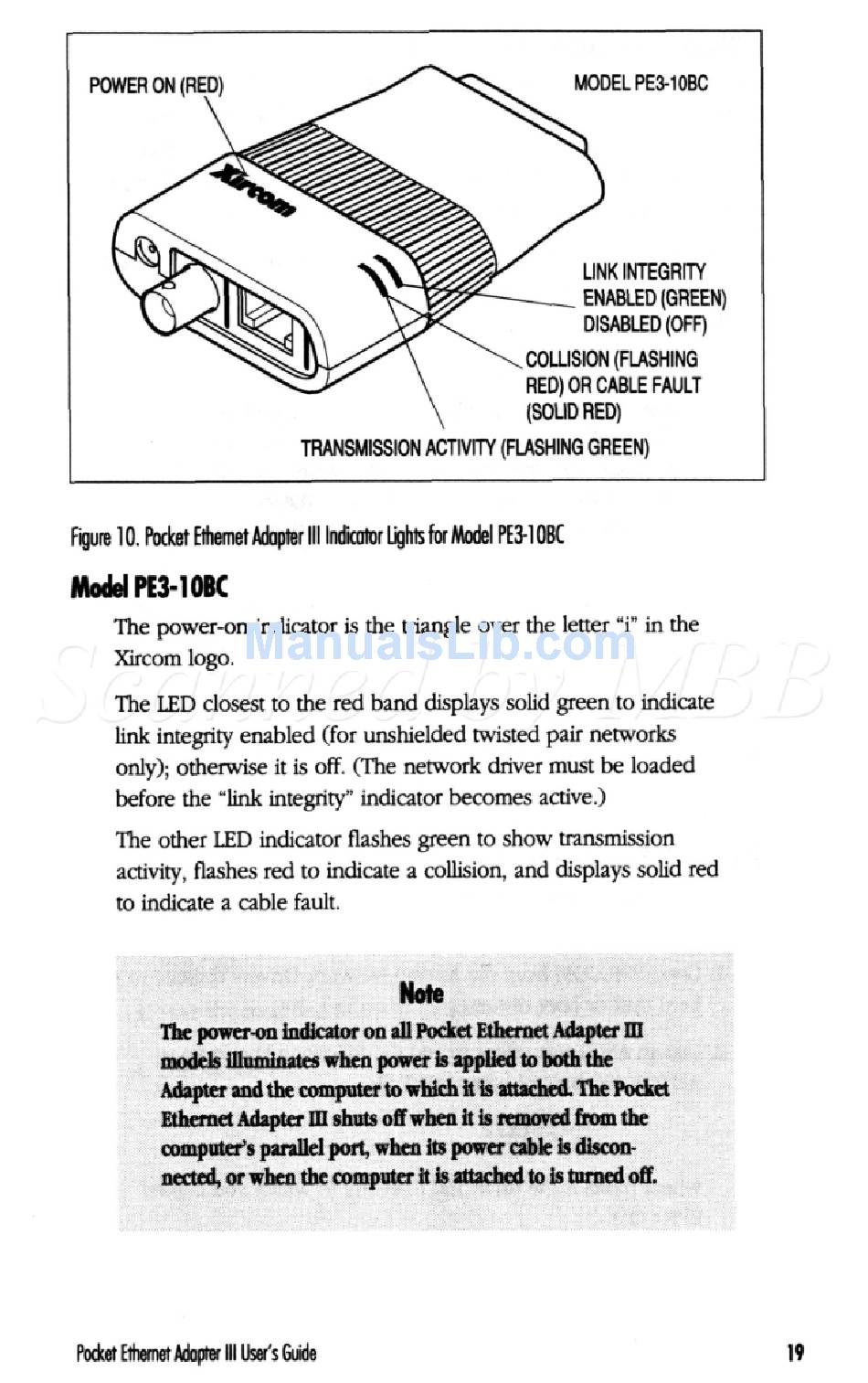

TRANSMISSION ACTIVITY (FLASHING GREEN)
Fi g ure
10.
Pocket Ei h emet
Adapter 111 l n d i i r hghis for
Model
P E 3 1 OBC
Model PE3-1
OBC
The power-on indicator
is
the triangle over the letter ' i " in the
Xircom logo.
The LED closest to the
red
band displays solid green to indicate
l i n k
integrity enabled (for unshielded twisted pair networks
only>
otherwise it
is
off.
m e
network driver must be loaded
before the " l i n k integrity" indicator becomes active.)
The other LED indicator
flashes
green to show
transmission
activity, flashes
red
to indicate a collision, and displays solid
red
to indicate a cable fault.
19
