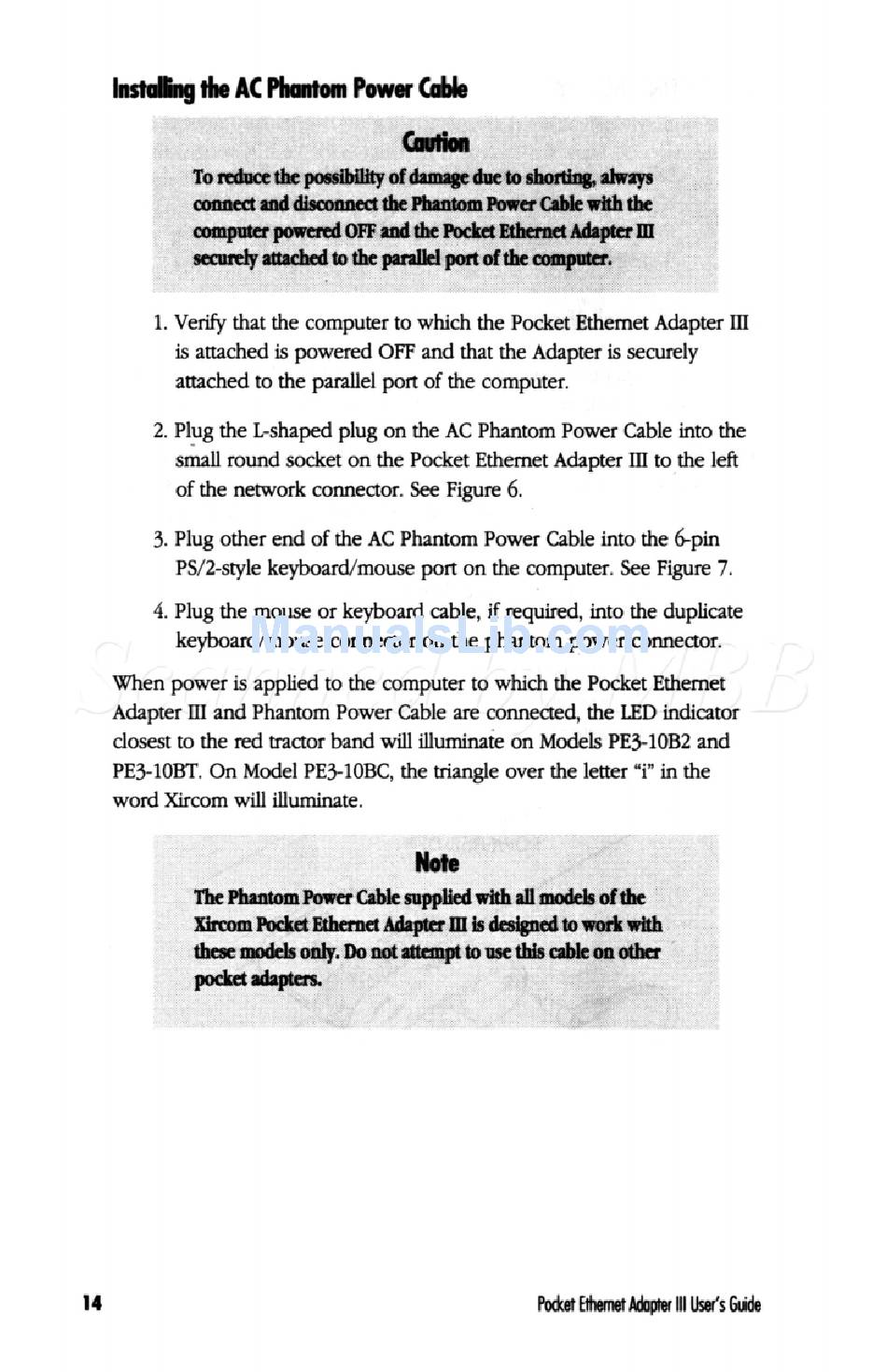

Xircom POCKET ETHERNET ADAPTER III User Manual page 25

lnstdhg
the
AC
phmtoln
Power Cabl e
m d ~ t h e w n n t o m p o n a ~ l e ~
OFFmdthePOC%CZEthennet
1.
Verify that the computer to which the Pocket Ethernet Adapter HI
is
attached
is
powered
O F F
and that the Adapter
is
securely
attached to the parallel
port
of the computer.
2. Plug the L-shaped plug on the AC Phantom Power Cable into the
s&
round socket on the Pocket Ethernet Adapter HI to the left
of the network connector.
See
Figure
6.
3. Plug other end of the AC Phantom Power Cable into the &pin
PS/2-style keyboadmouse port on the computer. See Figure 7.
4. Plug the mouse or keyboard cable, if
required, into the duplicate
keybodmouse connector on the phantom power connector.
When power is applied to the computer to which the Pocket Ethernet
Adapter III and Phantom Power Cable are connected, the LED indicator
closest to the red tractor band will illuminate on Models PE3-1OB2 and
PEIlOBT. On Model PEIlOBC, the triangle over the letter "i" in the
word Xircom will illuminate.
14
