CONFIGURATION AND DlAGNOSllCS
This section contains a detailed description of the Pocket Ethernet
Adapter I I I ' s diagnostic features, both hardware (diagnostic indicator
lights) and software (PE3TEST diagnostic program).
It
also includes an
explanation of how to disable
l i n k
integrity on Model PE3-1OBT, for
operation with non-IOBASE-T unshielded twisted pair networks. For
additional diagnostic information, see the error messages in Appendix A.

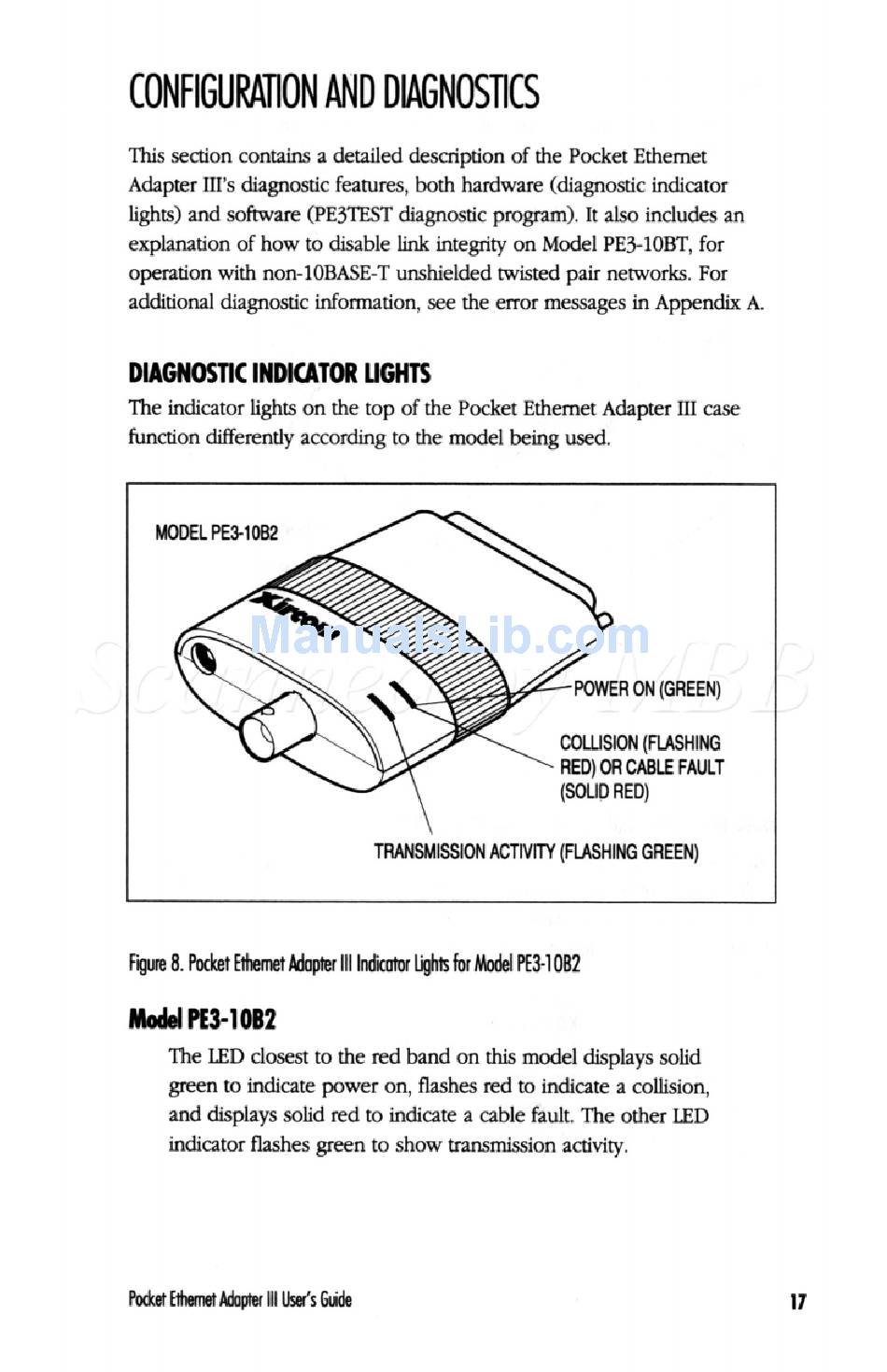

DIAGNOSTIC INDICATOR LIGHTS
The indicator lights on the top of the Pocket Ethernet Adapter III case
function differently according to the model being used.
COLLISION (FLASHING
RED) OR CABLE FAULT
TRANSMISSION ACTIVITY (FLASHING GREEN)
Fgure
8. Pocket Ethemet
Mapter
111 Indiir Li g hts for
Model
R3-1082
Modd
pE3-1
OB2
The L E D
closest
to the red band on this model displays solid
green
to indicate power on, flashes red to indicate a collision,
and displays solid red to indicate a cable fault. The other LED
indicator flashes green to show transmission activity.
17
