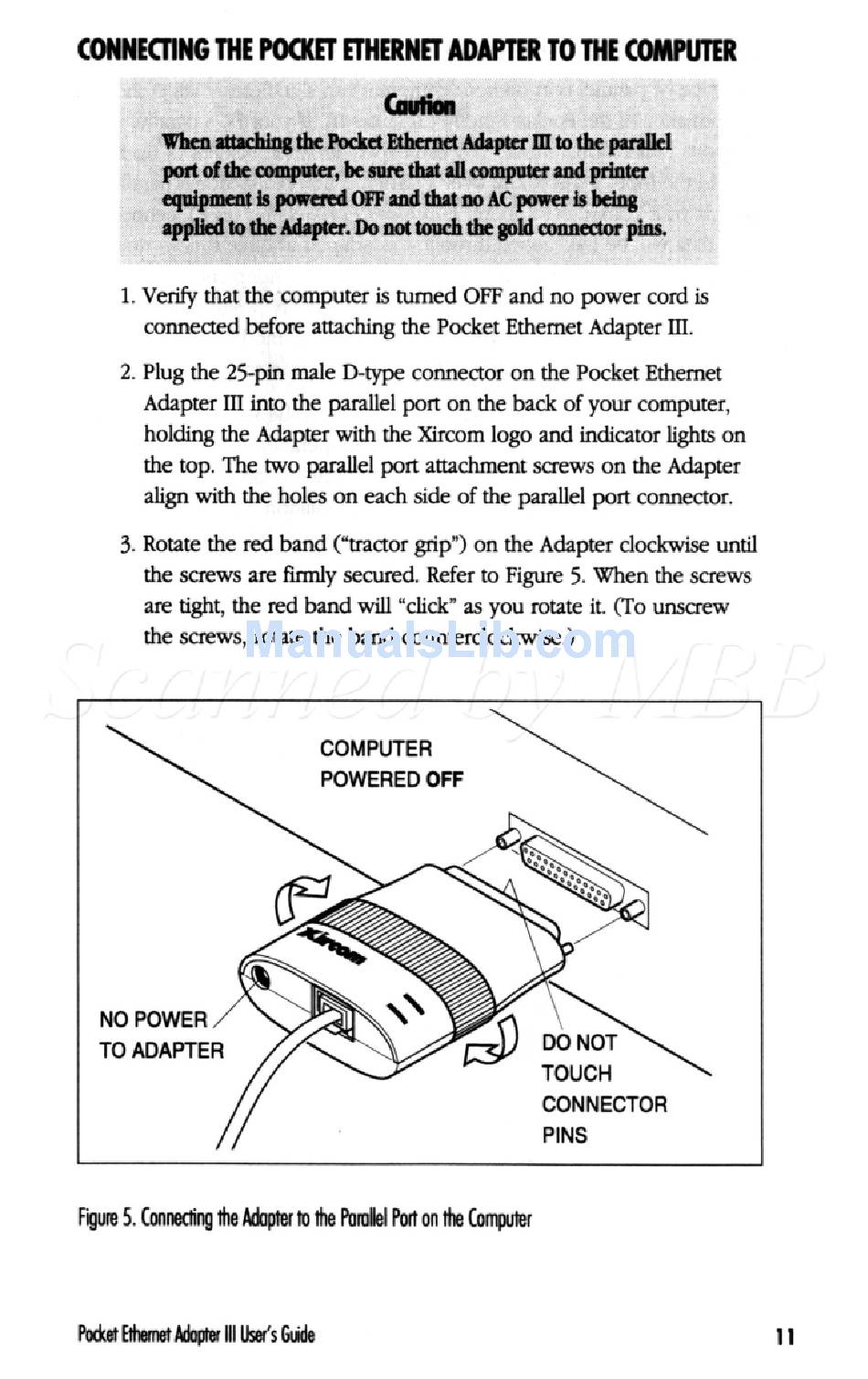

CONNECTI N G T H E POCKET EMRNET ADAPTER TO THE COMPWER
1.
Verify
that the computer is turned
O F F
and no power cord is
connected before attaching the Pocket Ethernet Adapter
III.
2. Plug the 25-pin male
D-type
connector on the Pocket Ethernet
Adapter
III
into the parallel port on the back of your computer,
holding the Adapter with the Xircom logo and indicator lights on
the top. The two parallel port attachment screws on the Adapter
align
with the holes
on each
side of the parallel port connector.
3.
Rotate the
red
band (''tractor grip") on the Adapter
clockwise
until
the screws are firmly secured. Refer to Figure 5. When the s c r e w s
are tight, the red band
will
"click"
as you rotate it.
(To
unscrew
the screws, rotate the band countercl&.)
POWERED OFF
CONNECTOR
PINS
Fi g ure
5. Connecling
the
Adapter
to
the
Poml l e l
port
on
the
Computer
Parketwamet~lll
wsw
11
