Model
pE3-1OBT
The
LED
closest to the
red
band displays solid orange to
indicate power on and l i n k integrity disabled.
It
displays solid
green when link integrity is enabled and the network driver has
been
loaded. The other LED indicator flashes
green
to show
transmission activivity.
TRANSMISSION ACTIVITY (FLASHING GREEN)

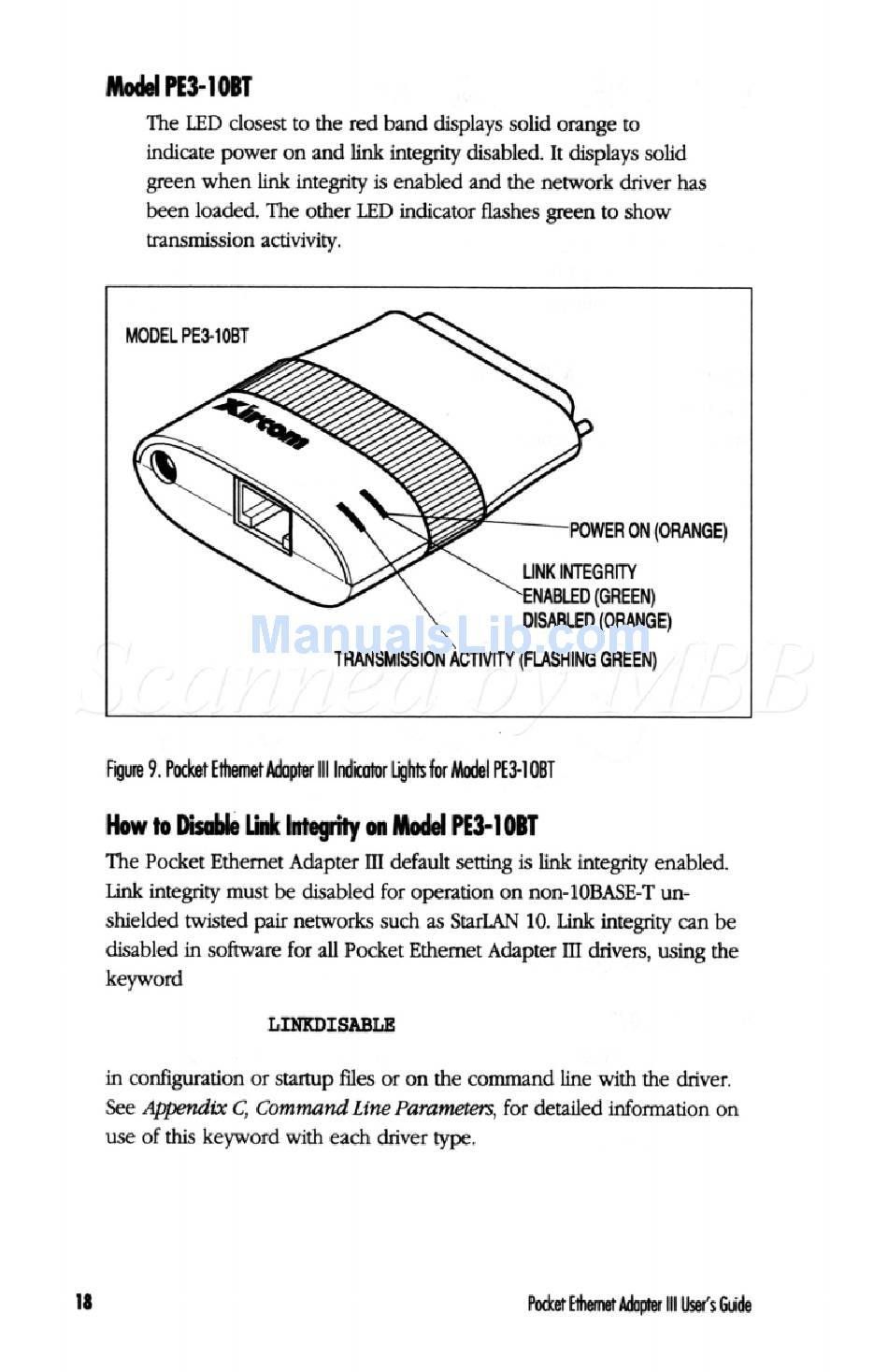

Fi g ure
9. Pocket
Eihetnet Adopter
111 Indicator l i g hts
for Model P E N
061
How
to Disable
Linklntegrity
OnModel
PE3-10BT
The Pocket Ethernet Adapter
III
default setting
is
link integrity enabled.
Link integrity must be disabled for operation on non-1OBASE-T un-
shielded twisted pair networks such as StarLAN 10. Link integrity can be
disabled in software for all Pocket Ethernet Adapter 111 drivers, using the
keyword
LINKDISABLE
in configuration or startup files or on the command line with the driver.
See Appendix C,
Command Line Pammeten, for detailed information on
use of this keyword with each driver type.
