A.9
Device Overview
The main components of the WideTEK
1:
Upper unit. The upper unit contains the cameras and the paper transport.
2:
Touchscreen. The touchscreen shows all menus to set up and control the scanner
3:
On/Off button. This button is used to power up the scanner from standby mode and
to power down the scanner to standby mode.
4:
USB connectors. Enable the user to connect qualified USB storage media to the
scanner.
A.9.1
Connectors at the back
Seen from the operators view (i.e. from the front of the scanner), the connectors are
positioned at the right back side of the housing.
A label beside the connectors shows and names each connector.
Page 20

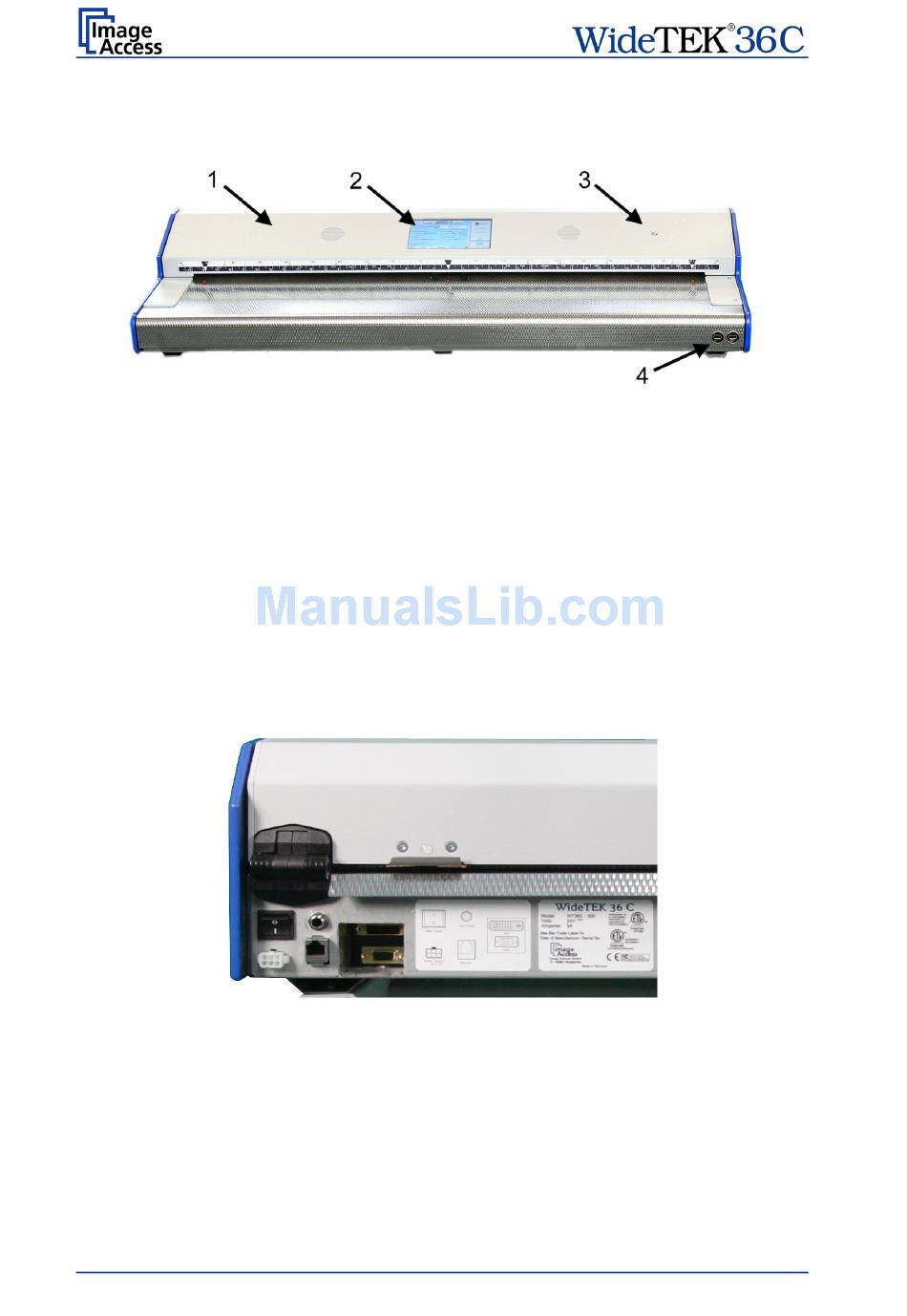

Picture 6: WideTEK 36C front view
36C
®
Picture 7: Main power switch and connectors
are:
