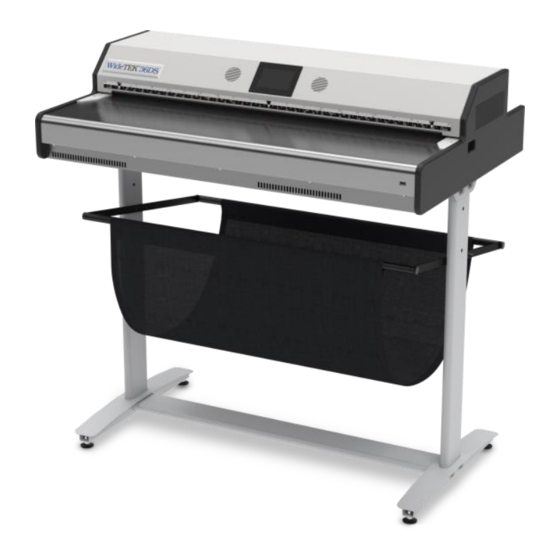

WideTEK® 36DS

Setup Instructions

English
03/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WideTEK 36DS and is the answer not in the manual?

Questions and answers

Related Manuals for Image Access WideTEK 36DS

Summary of Contents for Image Access WideTEK 36DS

  • Page 1: Setup Instructions

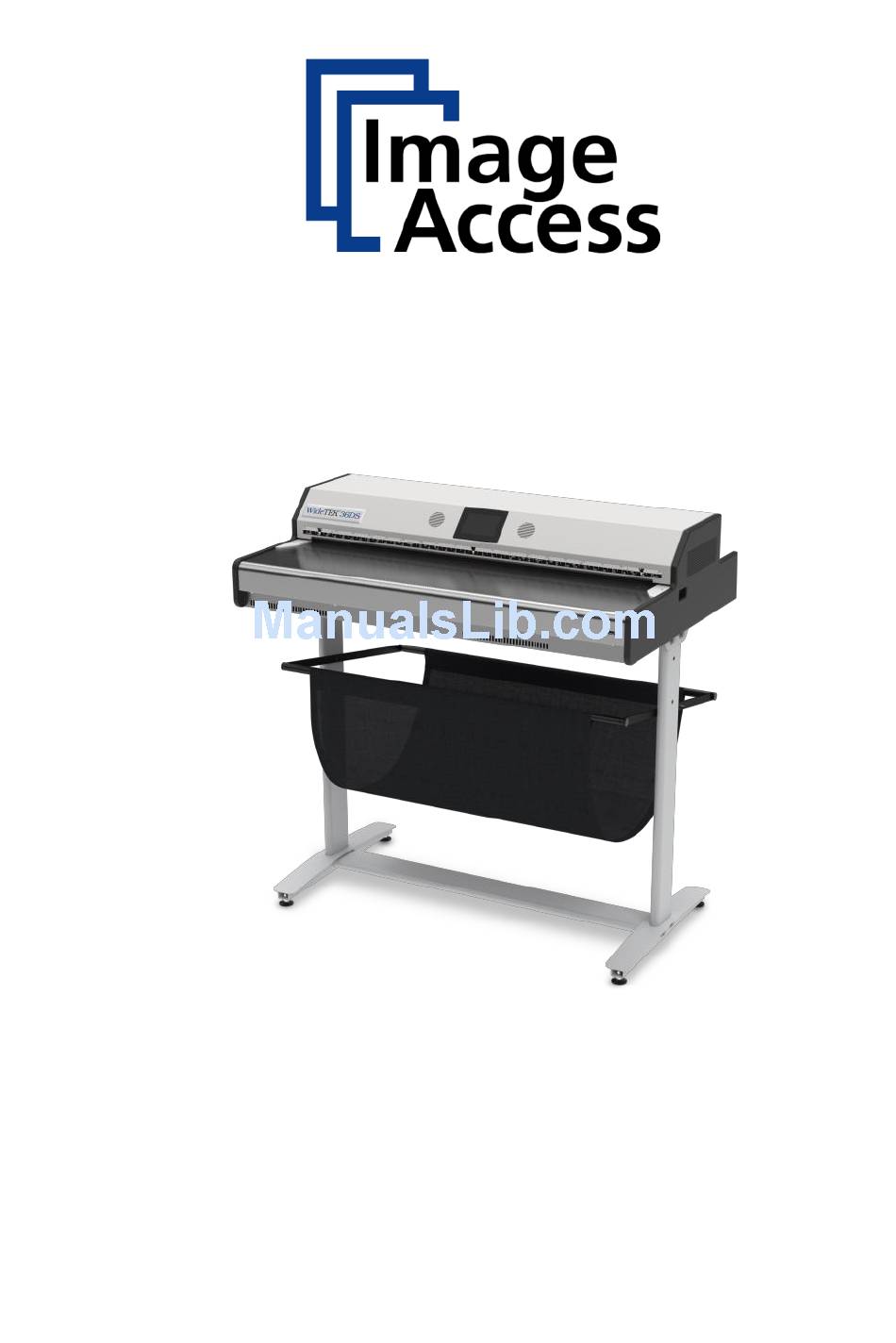

    WideTEK® 36DS Setup Instructions English 03/2017...

  • Page 2: Table Of Contents

    Contents Information about the Instructions and the Manufacturer ....... 4 Keep Instructions with the Scanner ............4 Design Features in Text ................5 Design Features in Pictures..............5 Associated Documents ................6 Copyright ....................6 Contact Data of the Manufacturer in Germany ........6 Technical Support ..................
  • Page 3 Connect the Optional Monitor .............. 19 Switch On the Scanner ................20 Switch Off the Scanner ................22 Perform Setup ..................24 Activate the Setup Menu ............... 24 Assign the IP Address ................25 Perform White Balance ................. 33 Lamp On/Off ..................37 Touch Adjust ..................

  • Page 4: Information About The Instructions And The Manufacturer

    Information about the Instructions and the Manufacturer Information about the Instructions and the Manufacturer These instructions show you how to safely prepare and perform the setup for the wide format scanner WideTEK® 36DS. The WideTEK® 36DS scanners are hereinafter referred to as "Scanner". Keep Instructions with the Scanner These instructions are a part of the scanner.

  • Page 5: Design Features In Text

    Information about the Instructions and the Manufacturer Design Features in Text Many text passages in these instructions have been formatted to indicate specific elements, as illustrated below: Normal text BUTTONS OF THE SCREEN PAGE "Menu names" ➢ Action steps • Enumeration of the first level Cross-references Tips contain additional information, such as special information to prepare for and perform the setup.

  • Page 6: Associated Documents

    42281 Wuppertal Phone: +49-202-27058-0 E-Mail: documentation@imageaccess.de Internet address: www.imageaccess.de Technical Support Image Access technical support can be reached at the e-mail address: support@imageaccess.de. Contact Data of the Manufacturer in the U.S. Image Access LP 745 Duffy Drive, Unit D Crystal Lake...

  • Page 7: Safety

    Safety Safety Intended Use The scanner is used for scanning images and documents. The documents must comply with the characteristics described in the technical specifications. The scanner is designed for use in enclosed spaces in the commercial sector. Intended use also includes observing and following all information provided in these instructions, especially the safety instructions.

  • Page 8: Avoiding Property Damage And Malfunctions

    ➢ Do not use the scanner if it is visibly damaged. In this case, unplug the power cord from the wall outlet. Contact Image Access technical support, see section Technical Support starting at page 6. Avoid Burns ➢...

  • Page 9: Responsibility Of The Owner

    Safety Responsibility of the Owner The scanner owner must ensure that only qualified personnel carry out the setup of the scanner. Staff Qualifications The staff that carries out the setup of the scanner must have knowledge in installing, connecting and putting computer accessories into operation.

  • Page 10: Design Features Of Warning Notices

    Safety Design Features of Warning Notices In these instructions, the following warning information can be found: WARNING Notices with the word WARNING warn about a dangerous situation that could lead to death or serious injuries. CAUTION Notices with the word CAUTION warn about a situation that could lead to light or medium-scale injuries.

  • Page 11: Description

    Description Description Purpose and Function The scanner is used for scanning images and documents. It is designed for use in enclosed spaces in the commercial sector. Intended use also includes observing and following all instructions in these instructions, especially the safety instructions. Any other use is considered to be improper and will void the warranty and liability claims.

  • Page 12: Left View

    Description Left View Name Foot switch connector Recovery key connector F Recovery key connector B Network connector F Network connector B 24 Vdc connector for external power supply F 24 Vdc connector for external power supply B Main switch Locking flap...

  • Page 13: Rear View

    Description Rear View The following diagram shows the rear view of the WideTEK® 36DS model. Name USB connector HDMI connector Connector for external accessories...

  • Page 14: Self Test Menu Overview Screens

    Description Self Test Menu Overview Screens Menu and Buttons Name SELF TEST 1 Menu name IP ADDRESS Button for network configuration ▲ Button to drive the document forward in the scanner WHITE BALANCE Button for white balance LAMP ON/OFF Button for lamp test ▼...
  • Page 15 Description Menu and Name Buttons SELF TEST 2 Menu name TOUCH ADJUST Button for touch adjust TOUCH TEST Button for touch test STITCH TEST Button for stitch test EMV TEST Button for EMV test SENSOR TEST Button for sensor test SHUTDOWN Button to switch the scanner into standby mode SCANNER...

  • Page 16: Rating Plate

    Description Rating Plate The rating plate is attached to the back of the scanner. The following figure shows the WideTEK® 36DS rating plate.

  • Page 17: Prepare For Setup

    Prepare for Setup Prepare for Setup Connect the Power Supply WARNING Risk of electric shock due to incorrect connection. ➢ Ensure that the power receptacles intended for the connection are properly grounded. ➢ Ensure that the power receptacles intended for the connection of the scanner are properly fused.

  • Page 18: Positioning The Scanner On The Optional Floor Stand

    Prepare for Setup To establish the network connections, proceed as follows: ➢ Connect one plug of the enclosed network cables to the network connector sockets on the left of the scanner. ➢ Connect the second plugs to the network sockets of an existing network.

  • Page 19: Connect The Optional Monitor

    Prepare for Setup Connect the Optional Monitor CAUTION Incorrect laying of the connection cables can cause tripping. Fractures, contusions and bruises can be the result. ➢ Place the connecting cables so that nobody can trip over them. To connect the optional monitor, proceed as follows: ➢...

  • Page 20: Switch On The Scanner

    ➢ Press the MAIN SWITCH (1) to the "I" position. The scanner is in standby mode. The touch panel is illuminated in a dimmed mode and shows the standby screen. The standby screen shows the Image Access logo and the blinking message Touch screen to power up.
  • Page 21 Prepare for Setup To start the scanner from standby mode, proceed as follows: ➢ Touch the touchscreen. The touch panel lights up and a rotating hourglass indicates that the start sequence is running. The scanner performs a system test. After a short wait, the "Start screen" is displayed.

  • Page 22: Switch Off The Scanner

    Prepare for Setup Switch Off the Scanner To switch the scanner to standby mode after performing the setup, proceed as follows: ➢ On the "Start screen" screen press and hold the button STOP (1). While STOP is being held, a counter in the button displays the time until the scanner is switched into standby mode: "Going to sleep in x seconds".
  • Page 23 Prepare for Setup To switch off the scanner for longer periods, proceed as follows: ➢ Make sure that the scanner is in standby mode. ➢ Press the MAIN SWITCH (1) in the "0" position.

  • Page 24: Perform Setup

    Perform Setup Perform Setup Activate the Setup Menu To activate the setup menu proceed as follows: ➢ During the start sequence tap exact three times onto the touchscreen (1). ✓ At the end of the start sequence the touchscreen shows the "Self Test 1"...

  • Page 25: Assign The Ip Address

    Perform Setup ➢ To select a submenu or a function from the screens "Self Test 1" and "Self Test 2", tap with your finger on the button of the screen. Assign the IP Address Manually Assign the IP Address To manually assign the IP address, proceed as follows: ➢...
  • Page 26 Perform Setup The "IP Address 1" screen is displayed. Menu and Buttons Name ADDRESS F.: The IP address for the front camera ADDRESS B.: The IP address for the back camera GATEWAY: Input field for the gateway address NETMASK: Input field for data on the subnet mask DHCP: Assign an IP address manually or automatically SAVE:...
  • Page 27 Perform Setup The "IP Address" window is displayed. ➢ Enter the new values with the shown numeric keyboard. The arrow keys < = left (1) and > right (2) move the cursor within the chosen row. The X key deletes the number at the cursor position. ➢...
  • Page 28 Perform Setup The screen "IP Address 2" is displayed. Menu and Buttons Name NETBIOS F.: Netbios data for the front camera NETBIOS B.: Netbios data for the back camera WORKGROUP: Workgroup name WINS: Wins data NTLMv2: Use of NTLMv2 (NT LAN Manager): Yes / No SAVE: Accept the network settings provided DEFAULT:...
  • Page 29 IP network addresses for the scanner, because they are already set up for the internal communication. These IP addresses can not be changed. ➢ Contact Image Access technical support, see section Technical Support starting at page 6.
  • Page 30 Perform Setup Automatically Assign the IP Address To automatically assign the IP address, proceed as follows: ➢ On the "Self Test 1" screen, tap on IP ADDRESS. The "IP Address 1" screen is displayed. Menu and Buttons Name ADDRESS F.: The IP address for the front camera ADDRESS B.: The IP address for the back camera...
  • Page 31 Perform Setup ➢ Tap the DHCP selection field and select Yes. The displayed entry in the DHCP selection box changes to Yes. If entries have been changed, the changes must be confirmed. ➢ Tap on SAVE to confirm the changes.
  • Page 32 IP network addresses for the scanner, because they are already set up for the internal communication. These IP addresses can not be changed. ➢ Contact Image Access technical support, see section Technical Support starting at page 6.

  • Page 33: Perform White Balance

    Perform Setup Perform White Balance ➢ On the "Self Test 1" screen, tap on WHITE BALANCE.
  • Page 34 Perform Setup The "White Balance" screen is displayed. Menu and Buttons Name WHITE BALANCE Menu name CONT. Start white balance ABORT Abort white balance < BACK Switch back to "Self Test 1" menu...
  • Page 35 Perform Setup The white balance is used to ensure the quality of the scan results. The white balance will be carried out using a test target. The test targets are marked as follows: • WT36C-Z-01-A for WideTEK® 36DS ATTENTION! Impairment of the scan quality can occur if an improper test target for the white balance is used.
  • Page 36 Perform Setup ➢ Tap on Cont.. The white balance starts and the calibration is performed. During the white balance, a rotating icon appears. The test target is transported forward and returned. The entire white balance sequence takes about 50 seconds. Then, the white balance result is displayed as shown on the example below.

  • Page 37: Lamp On/Off

    The Touch Adjust function should only be carried out by a technician certified by ImageAccess, as this may impair the functionality of the device. This function is not relevant for setting up the device. ➢ Contact Image Access technical support, see section Technical Support starting at page 6.

  • Page 38: Touch Test

    Perform Setup Touch Test This function is not relevant for setting up the device. ➢ On the "Self Test 2" screen, tap on Touch Test (2). After selecting this function, the touchscreen displays an empty area. Use a suitable stylus to draw some arbitrary characters on the touchscreen.

  • Page 39: Stitch Test

    Perform Setup Stitch Test This function is only intended for technicians certified by Image Access and not relevant for setting up the device. EMV Test This function is only intended for technicians certified by Image Access and not relevant for setting up the device. Sensor Test This function is not relevant for setting up the device.

  • Page 40: Shutdown Scanner

    Perform Setup Paper detected by the sensor. Shutdown Scanner ➢ On the "Self Test 2" screen press the SHUTDOWN SCANNER button to switch the scanner to standby mode.

  • Page 41: Technical Specifications

    Technical Specifications Technical Specifications WideTEK® 36DS Scanner Specification Optical System WideTEK® 36DS Maximum document size 970 mm / 38,2 inch Scan width 915 mm / 36 inch Scanner resolution 1200 × 1200 dpi (optional 9600 × 9600 dpi interpolated) Optical resolution 1200 ×...

  • Page 42: Ambient Conditions

    Technical Specifications Optical System WideTEK® 36DS Maximum document size 970 mm / 38,2 inch Scan width 915 mm / 36 inch Scanner resolution 1200 × 1200 dpi (optional 9600 × 9600 dpi interpolated) Optical resolution 1200 × 600 dpi Pixel size 9,3 ×...

  • Page 43: Electrical Data

    Technical Specifications Electrical Data External Power Supplies Input voltage 100–240 Vac Frequency 47–63 Hz Output voltage 24 Vdc Output current 6,25 A ECO Standard CEC Level VI Scanner Input voltage 2 * 24 Vdc Input current (fused) 2 * max. 5 A Power consumption WideTEK®...

  • Page 44: Dimensions And Weight Widetek® 36Ds

    Technical Specifications Dimensions and Weight WideTEK® 36DS Scanner (H × W x D) 248 x 1094 x 685 mm Scanner with floor stand 1070 x 1094 x 685 mm (H × W x D) Scanner weight 64 kg Floor stand weight / including the 18,5/20,7 kg paper catch Transport box (H ×...
