Image Access WideTEK 36 Setup And Assembly Manual

Hide thumbs Also See for WideTEK 36:
Table of Contents

Advertisement

Quick Links

Download this manual
S
e
t
u
p
a
n
d
A
s
s
e
m
b
l
y
M
a
n
u
a
l
S
e
t
u
p
a
n
d
A
s
s
e
m
b
l
y
M
a
n
u
a
l
This device is
compliant.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WideTEK 36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Image Access WideTEK 36

Summary of Contents for Image Access WideTEK 36

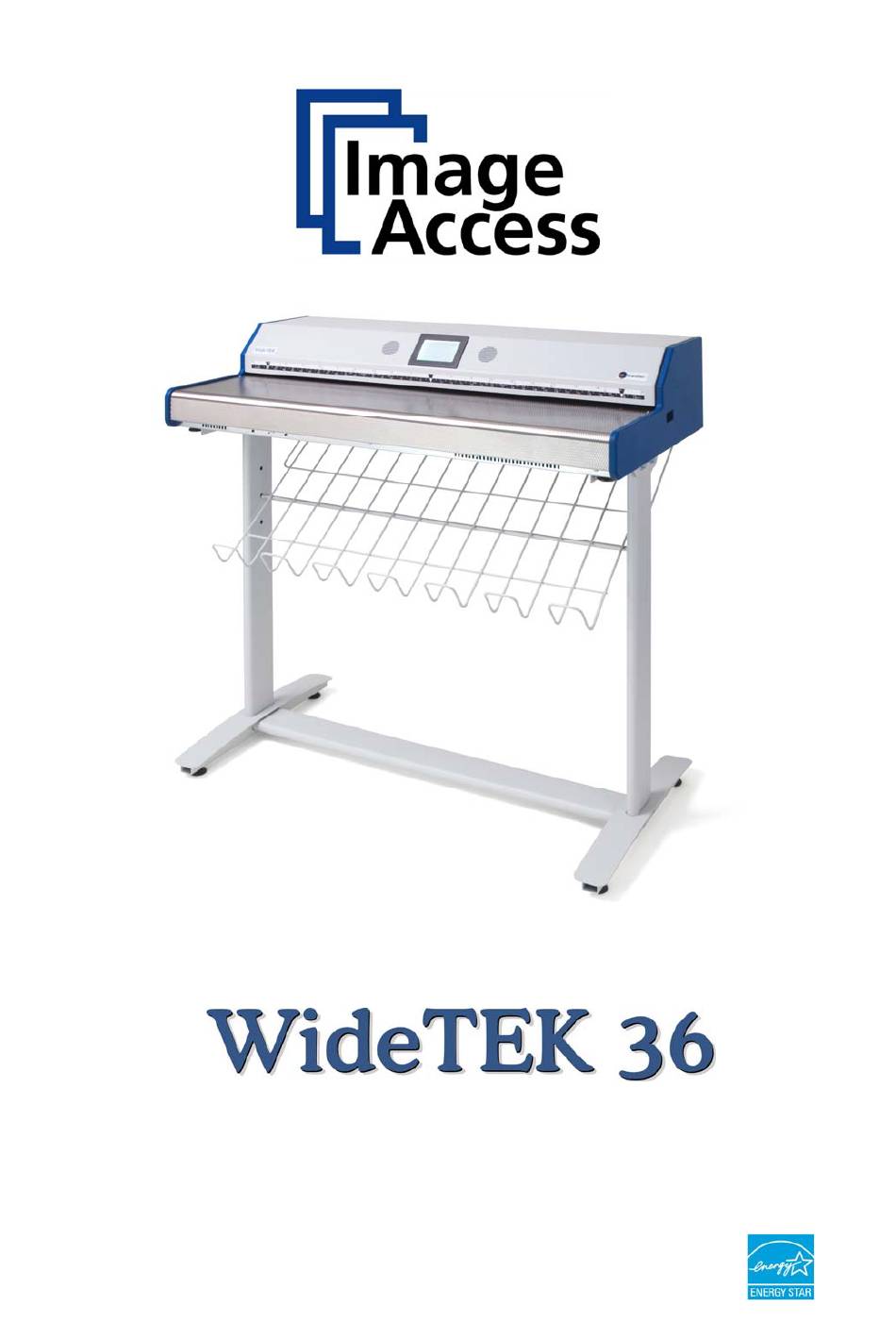

  • Page 1 This device is compliant.

  • Page 2: Table Of Content, Part

    File: WT36_SetupAndAssembly_F2.doc...
  • Page 3 Printed in Germany. All rights reserved. Reproduction in whole or in part in any form or medium without express written permission of Image Access is prohibited. Scan2Net is a registered trademark of Image Access. Other designated brands herein are trademarks of Image Access.

  • Page 4: Introduction

    Dear Customer, We congratulate you on the acquisition of this innovative product from Image Access. We at Image Access are proud of the work we do; it is the result of our extremely high standards of production and stringent quality control.

  • Page 5: About This Manual

    This device is a precision optical instrument and should be handled accordingly. Note: It is recommended to always use the WideTEK 36 in combination with the floor stand. Section B describes the software setup. It includes the optical adjustments necessary after the setup.

  • Page 6: Version History

    Version History Version Published in Content/Changes/Supplements February 2007 Preliminary version. Description of the device elements. Description of assembling steps. Description of Scan2Net Firmware Adjustment Procedure. Description of Recovery Function. May 2007 Additional information concerning cleaning, tests troubleshooting. August 2007 Some minor modifications in the text, some new screenshots because of new firmware release.

  • Page 7: Table Of Contents

    A.4.1 Connectors at the Scanner Powering up the WideTEK 36................27 WideTEK 36 Touch Panel ................... 27 A.6.1 Starting the WideTEK 36 from Stand-By Mode A.6.2 Turning-off the WideTEK 36 A.6.3 The Help Function Navigating through the Screens ................29 A.7.1...
  • Page 8 Table of Content, part 2 B Software Setup --------------------------------------------------------------- 34 Start Screen of the Scan2Net User Interface ............34 Setup Menu ......................35 B.2.1 Selecting the Login Level Poweruser Login Level ..................36 B.3.1 Setup Network IP Address B.3.2 Adjust Time & Date B.3.3 Sound Control B.3.3.1...
  • Page 9 Table of Content, part 3 D Technical Data---------------------------------------------------------------- 68 Scanner Specifications ..................68 Ambient Conditions....................68 Electrical Specifications ..................69 Dimensions and Weight..................69 Setup and Assembly Manual Page 9...
  • Page 10 Picture 17: Bottom side, back side left ................23 Picture 18: Fastening the scanner onto the floor stand............. 23 Picture 19: WideTEK 36 placed on floor stand, ready to use..........24 Picture 20: Connectors at WideTEK 36................26 Picture 21: Start menu screen................... 27 Picture 22: Touch panel while shut down in progress ............
  • Page 11 Table of Pictures, part 2 Picture 31: White balance result ..................33 Picture 32: Start screen .....................34 Picture 33: Login level screen....................35 Picture 34: Poweruser main menu..................36 Picture 35: Network parameters of the scanner ..............37 Picture 36: Adjust Time and Date Screen................38 Picture 37: Sound System screen ..................39 Picture 38: Volume level displayed..................40 Picture 39: List of sound files.....................41...
  • Page 12 Table of Pictures, part 3 Picture 61: Cable connector ....................55 Picture 62: Screw at back, left side ................... 56 Picture 63: Screw at back, right side ................. 56 Picture 64: Screw at front, left side..................56 Picture 65: Screw at front, right side ................. 56 Picture 66: Holding the glass plate rack ................
  • Page 13 Setup and Assembly Manual Page 13...

  • Page 14: A Hardware Setup

    Hardware Setup Content on Delivery The scanner is delivered in a wooden transport box. The transport box also contains the disassembled floor stand in a separate cardboard box and the paper catch basket. Picture 1: Transport box opened Paper catch basket Scanner White Reference Target Box with cable set and accessories.

  • Page 15: Contents Of Floor Stand Box

    A.1.1 Contents of Floor Stand Box The cardboard box of the floor stand contains all screws and washers, as well as the tools to assemble the floor stand, in a separate plastic bag. Picture 2: Floor stand box opened Picture 3: Assembling material Plastic bag with assembly material The plastic bag contains all screws, washers and tools to assemble the floor stand.

  • Page 16: Floor Stand Overview

    A.1.2 Floor Stand Overview The engineering drawing below shows all major elements of the floor stand. Picture 4: Technical drawing of floor stand The floor stand is built out of five different components and one round rod. No Qty Description Horizontal traverse.

  • Page 17: Parts Of Floor Stand

    A.1.3 Parts of Floor Stand Take all parts out of the box and place them as shown below and check for possible damages. Picture 5: Floor stand components The numbers in the picture above correspond to the numbers in the technical drawing. Setup and Assembly Manual Page 17...

  • Page 18: Assembling The Floor Stand

    Assembling the Floor Stand Start with the foot profile (component #3), the side pillar (component #2), and the traverse (component #1). Note: The three boreholes on the vertical leg (part #2) that are only on one side must face to the inner side of the floor stand. They should also be in the upper part of the leg.

  • Page 19: Picture 8: Inserting Screws With Washer

    Fasten the three components with two screws ISO 4016 – M8x50x22-WS. Place a washer on each screw. Picture 8: Inserting screws with washer Tighten the screws with the combination wrench, size 13, which comes with the floor stand. Note: All screws should only be hand-tightened at first. The components should have a little play until all parts are assembled.

  • Page 20: Picture 10: Top Bracket On Vertical Leg

    Place the top brackets on the vertical legs. The oval cut-out must face to the inner side. Picture 10: Top bracket on vertical leg Insert the second traverse between the side legs. Picture 11: Upper traverse inserted Assemble the traverse, the top brackets and the legs with two ISO 4016 – M8x50x22-WS screws and a washer on each side.

  • Page 21: Combining Floor Stand And Scanner

    Picture 12: Inserting the rod Combining Floor Stand and Scanner After assembling the floor stand, the WideTEK 36 scanner can easily be placed on it in a safe position. Note: For safety reasons, the scanner should be handled by two persons.

  • Page 22: Picture 14: Lift The Scanner To Remove The Foam Rubber Element

    Place the scanner on the ground for the next steps. To remove the foam rubber elements, lift the scanner on one of its small sides (Figure 1, Picture 14) and turn the foam rubber element sideward (Figure 2, Picture 14). Picture 14: Lift the scanner to remove the foam rubber element Turn the foam rubber element up to an angle of approximately 45°, then pull it out of the back side of the scanner.

  • Page 23: Picture 16: Bottom Side, Front Side Left

    The WideTEK 36 scanner has four pre-mounted rubber feet on its bottom side. The position of the rubber feet corresponds to the cut-outs at the top of the longitudinal girders. Place the WideTEK 36 on the floor stand so that the rubber feet are inserted into the cut- outs.

  • Page 24: Picture 19: Widetek 36 Placed On Floor Stand, Ready To Use

    Place it on the rod and fix it with the hooks on the rear side of the WideTEK 36. Picture 19: WideTEK 36 placed on floor stand, ready to use...

  • Page 25: Connecting To The Power Source

    Connecting to the Power Source Before connecting the WideTEK 36 scanner to the wall outlet check the following items: Ensure the wall outlet is in perfect condition and that it is properly grounded. Inspect the power cable and ensure that it is undamaged.

  • Page 26: Connectors At The Scanner

    Connectors at the Scanner The connectors are positioned at the left side of the housing, seen from the operators view (i.e. from the front of the scanner). Picture 20: Connectors at WideTEK 36 1: Power connector 2: Foot pedal connector...

  • Page 27: Powering Up The Widetek 36

    When the WideTEK 36 is powered up by using the main power switch, the touch panel is illuminated in a dimmed mode and shows the stand-by screen. The stand-by screen shows the Image Access logo and the blinking message Touch screen to power up.

  • Page 28: Turning-Off The Widetek 36

    To turn the WideTEK 36 off, press and hold the Stop button on the touch panel. While the Stop button is held, a counter in the button shows the remaining time until the WideTEK 36 is powered down.

  • Page 29: Navigating Through The Screens

    Navigating through the Screens Some of the screens show on the bottom line the buttons Returns to the former screen. Sometimes only the symbol < is displayed. Switches to the next logical screen, e.g. from Format Control 1 to Format Control 2. Sometimes only the symbol > is displayed. Resets all values in the respective screen to default value.

  • Page 30: Ip Address Setup

    A.8.1 IP Address Setup by Touch Panel Start the WideTEK 36 from stand-by mode by tapping on the touch panel. While the start sequence is running tapping on the touch panel at least three times switches the scanner to setup mode. After the start sequence is finished, the touch panel shows the Self Test 1 screen.

  • Page 31: Picture 26: Network Setup

    Touch the control field IP Address. The touch panel changes to a mask where IP Address, Gateway, and Netmask can be entered. Also the DHCP mode can be selected. Picture 26: Network setup Touch on the line to be changed, e.g. the Address line. The touch panel shows: Picture 27: Numeric key pad Enter the new values.

  • Page 32: Optical Adjustment

    A.9.1.1 Helpful information about the white balance adjustment The WideTEK 36 scanner has built-in light sources of known and stable quality consisting of state-of-the-art white LEDs. In the first step, the overall sensitivity of the scanner is adjusted in such a way that the brightest area results in an almost saturated output signal.

  • Page 33: Performing The White Balance Adjustment

    A.9.1.2 Performing the White Balance Adjustment Start the scanner as described in chapter A.6.1. While the start sequence is running, tap on the touch panel at least three times successively. At the end of the start sequence the touch panel shows the menu Self Test 1 (Picture 25). Tap on the field White Balance to activate the adjustment process.

  • Page 34: B Software Setup

    Software Setup Essentially, the scanner is a web server and comes with its own HTML-based user interface. To access a Scan2Net scanner, any standard web browser can be utilized. Start Screen of the Scan2Net User Interface Start your browser. Enter the IP address of the scanner. The default IP address of the scanner: 192.168.1.50 The start screen of the integrated user interface will be displayed.

  • Page 35: Setup Menu

    User This level allows the user to get some status information of the WideTEK 36 scanner. This are e.g. the firmware version, the remaining lamp operating time, system information, and many more. Furthermore it allows to set a few basic parameters.

  • Page 36: Poweruser Login Level

    Poweruser Login Level For the following setup steps choose the login level Poweruser . Default user name and default password for this login level are "Poweruser". Note: Please consider that both the user name and the password are case-sensitive and that the first letter of both the user name and password are upper case.

  • Page 37: Setup Network Ip Address

    Note: For a detailed description of the User Settings see the Operation Manual, chapter Setup Menu. B.3.1 Setup Network IP Address In the Poweruser main menu find the section Base Settings and click on the Network Configuration button. wt36_pwr-usr5xx_003.jpg Picture 35: Network parameters of the scanner Now change the IP address, subnet mask and gateway to a valid address in your network or select DHCP to obtain an IP address automatically.

  • Page 38: Adjust Time & Date

    B.3.2 Adjust Time & Date In the Poweruser main menu screen (Picture 34) locate the section Base Settings. Click on the button Adjust Time & Date . Picture 36: Adjust Time and Date Screen Select the time format. Enter in section NTP Server all parameters for the communication with a NTP server. Select the time zone and the daylight saving function.

  • Page 39: Sound Control

    B.3.3 Sound Control Locate the section Base Settings in the Poweruser main menu screen and click the Sound System button. Picture 37: Sound System screen This menu allows to  set the volume,  upload additional sound files to the scanner, ...

  • Page 40: Set Volume

    B.3.3.1 Set Volume Click on the button Set Volume . Picture 38: Volume level displayed To set the volume level, click on the desired percentage value in the list left beside the graphic symbol. The symbol color changes depending on the selected value. Up to 30% Up to 60% 70% or higher...

  • Page 41: Wave Files

    B.3.3.2 Wave Files Additionally sound files can be uploaded to the already installed sound files. The data format of the sound files is WAV. Click on the button Wave Files . Picture 39: List of sound files The list of the installed sound files will be displayed. Click on the button Search to search for the desired WAV sound files.

  • Page 42: Link Events

    B.3.3.3 Link Events A sound can be assigned to various action items. This will be played every time the condition occurs. The default setting can be overwritten. Click on the button Link Events Picture 40: Link Sounds to Events screen The list shows the event and the sound name which is linked to it.

  • Page 43: Firmware Update

    B.3.4 Firmware Update The Image Access Customer Service Portal at http://service.imageaccess.de offers downloads of firmware updates for every Scan2Net scanner. As a registered user, login with your personal login name and password. Select Actions S2N Device Updates to download the current firmware version. Enter the serial number of your scanner and the version number of the firmware installed on the scanner.

  • Page 44: Picture 42: Summary Of Successful Firmware Update

    Click the button Send File to update the scanner’s firmware. Important: Do not switch off the scanner while executing the firmware update! The update sequence can last a few minutes. When the update is running, no messages will be displayed on the screen. After the firmware is successfully updated, the screen displays a summary.

  • Page 45: Install Icc Profiles

    B.3.5 Install ICC Profiles Find the section Updates and Uploads in the Poweruser main menu screen and go to ICC Profile . Select either Scanner Profile or Printer Profile . Picture 43: ICC Profile screen ICC profiles will be integrated in the image file data. ICC profiles adapt the color space between scanner and image editing software or between scanner and printer.

  • Page 46: Picture 44: Upload Icc Profile Screen

    Browse for a new ICC profile and select it. If another ICC profile is already installed, it will be displayed. Selecting another profile will replace the previous file. Picture 44: Upload ICC Profile screen Click on Browse to select the desired ICC profile. Click on Send file to upload the selected profile.

  • Page 47: Install Option

    B.3.6 Install Option In the main menu screen, locate the section Updates and Uploads and go to Install Options . All option keys that are displayed in green are valid and installed. A new key must be entered completely without blanks or spaces followed by the Apply button. If it does not turn green, the key is invalid or does not belong to this specific scanner or option.

  • Page 48: White Balance

    B.3.7 White Balance In the Poweruser main menu screen, locate the section Adjustments & Support. Click the button Adjustments . Picture 47: Click the marked button In the next screen, locate the section White Balance Adjustments. In this section click on the button White Balance . Picture 48: Select „White Balance“...

  • Page 49: Picture 49: White Reference Target On Document Table

    The next screen shows how to place the White Reference Target WT36-Z-02-A on the document table. wt36_setup_eng_020_b.jpg Picture 49: White Reference Target on document table Click on Next Step to start the White Balance Adjustment sequence. After the White Balance Adjustment has finished, the results will be displayed in a status screen.

  • Page 50: Brightness Correction

    B.3.8 Brightness Correction This function enables the user to change the gains settings up to +/- 2 dB, while positive values make the scan look brighter. To set the Brightness Correction, click the button Brightness Correction in the section White Balance Adjustments.

  • Page 51: C Cleaning, Test And Troubleshooting

    To avoid those stripes it is recommended to clean the transport drums in regular intervals. Cleaning the drums is done very easily. When the WideTEK 36 is in stand-by mode, start it by tapping the touch panel on any arbitrary position. The touch panel lights up and a rotating hourglass indicates that the start sequence is running.

  • Page 52: Picture 53: Transport Drums At Front And Back

    Open the upper unit by clicking the locking lashes at the left and right side of the housing. Both transport drum are now visible. Transport drums Picture 53: Transport drums at front and back Press and hold one of the triangle arrows on the display to start rotating the transport drums.

  • Page 53: Cleaning The Glass Plate

    Cleaning the Glass Plate To clean the glass plate open the upper unit by clicking the locking lashes at the left and right side of the housing. Use the microfiber cloth which is delivered with the scanner or a fluff-free cloth to clean the glass plate.

  • Page 54: Picture 56: Lifting The Main Cover

    After removing the screws the main cover can be lifted. Note: Lifting of the main cover must be done carefully because of the cable which connects the TFT display and the mainboard. Picture 57 shows, how the main cover should be placed on the document table. Picture 56: Lifting the main cover Picture 57: Placing the main cover In the next step disconnect the cables from the connectors at the TFT display.

  • Page 55: Picture 60: Controller Connector

    Picture 60: Controller connector To open the last connector a hexagon ball shaped head screwdriver, size 2,5 mm, must be used. Notice the order of the elements on the screw: Lock washer  Cable connector  lock washer. This order must be the same when reconnecting the cables to the TFT display. Picture 61: Cable connector When all cables are disconnected, the main cover can be removed from the document table.

  • Page 56: Picture 62: Screw At Back, Left Side

    For the following step use an Allen wrench, size 2,5 mm. The upper unit must be opened to reach the four screws which hold the glass plate rack. It is recommended to begin with the two screws at the back. The next two pictures show the position of the screws at the glass plate rack back.

  • Page 57: Picture 66: Holding The Glass Plate Rack

    After removing the front screws, the glass plate rack hangs in the upper crossbeam. Hold it at its external ends and lift it a little upwards. Picture 66: Holding the glass plate rack Then it can be removed in direction of the document table. Picture 67: Removing the glass plate rack The new glass plate rack will be mounted in reverse order.

  • Page 58: Scan Test Targets

    Scan Test Targets With the help of this function, the user can scan either a CSTT target or an IT8 target. The targets are used to analyze specific features of the scanner’s camera and internal parameters. Some CSTT test target are delivered with the scanner. In the Poweruser main menu screen find the section Adjustments &...

  • Page 59: Scan It8 Test Target

    C.4.2 Scan IT8 Test Target When Scan IT8 Test Target is selected, the next screen shows how to position the target on the document table. Picture 69: Position of IT8 test target on the document table The test target will be scanned and the image will be saved to a directory which is defined by the user.

  • Page 60: Network Analyzer

    Network Analyzer This function provides information about the data transfer speed of the network where the Scan2Net scanner is installed. Locate the section Adjustments & Support in the Poweruser main menu screen and click the Network Analyzer button. Picture 70: Network Analyzer screen Click on the Perform Speed Test button and enter the IP address of the device which should be the target for the test.

  • Page 61: Recovery Function

    Recovery Function The recovery function helps to set all device parameters to factory defaults after a fatal system breakdown. The recovery key is necessary to invoke the recovery procedure. A recovery key is delivered with every device, it is marked with the label Recovery. Picture 72: Recovery Key Important: The recovery function resets the IP address to the factory default value of...

  • Page 62: How To Recover To Factory Defaults

    C.6.2 How to Recover to Factory Defaults 1. Power the device down with the stop button. 2. Remove the metal compensator. This is down within a few steps easily. At first open the upper unit by clicking the locking lashes at the left and right side of the housing.

  • Page 63: Picture 76: Compensator Plate On Document Table

    and place it on the document table. Picture 76: Compensator plate on document table In the next step, lift up two of the compensators at the right side. Because of elastic rubber elements compensator it could be necessary to fasten them temporarily.
  • Page 64 3. Power the device up via the start button. The device will start and, after it has found the recovery key to be present in the serial port, it will automatically execute the recovery sequence. All viable system data will be restored and necessary repair steps will be taken without the need of any user interaction.

  • Page 65: Error Codes

    Error Codes The scanner does report error conditions on the display and through the API. Some errors are only sent to the API. White background of the problem description indicates that the message is information only. A problem description with green background signals that operation of the scanner is still possible although the error will have an influence on the behavior or quality of the scanner.
  • Page 66 Error codes, part 2 Error Error message shown in Error message sent to Problem description the display application File format not supported. The specified file format is not supported or it is invalid in combination with the color mode. The application specified an invalid Preview not possible.

  • Page 67: Warnings

    Error codes, part 3 Error Error message shown in Error message sent to Problem description the display application Error 70: ADC error camera 2 Camera 2 adc error. Test data transfer through analog digital converter failed. Check cables / connectors to camera 2. Error 71: ADC error camera 3 Camera 3 adc error.
  • Page 68 Technical Data Scanner Specifications Optical System Maximum Document Width 38 inch / 965 mm Scan Width: Max. 36 inch / 915 mm Optical Resolution 1200 x 600 dpi 3 linear CCD, encapsulated and dust-proof Sensor Type: 12bit grayscale (internal resolution) 36bit color (internal resolution) Sensor Resolution: 68.400 pixels (3x 22.800)
  • Page 69 Electrical Specifications This device is Energy Star compliant. Voltage 100–240V AC Frequency 50/60 Hz Power Consumption Stand-by 0.1 W Start Procedure 190 W Ready to scan, lamps off 115 W Scanning 190 W Dimensions and Weight Scanner outer dimensions 220 x 1094 x 555 mm (H x W x D) Scanner outer dimensions (incl.
