Monitor Connector; Recovery Key Connector; A.9.2 Monitor Connector - Image Access WideTek 36C Manual

A.9.2

Monitor Connector

To show previews of the scanned documents an external monitor can be connected to the
WideTEK ® 36C.
Two video connectors allow connecting the monitor either to the VGA connector or to the
HDMI connector.
Please note: Due to the internal wiring only one external monitor is allowed to be
connected to the scanner.
A.9.3

Recovery Key Connector

Seen from the operators view (i.e. from the front of the scanner), the Recovery Key
connector is positioned at the left back side of the housing.

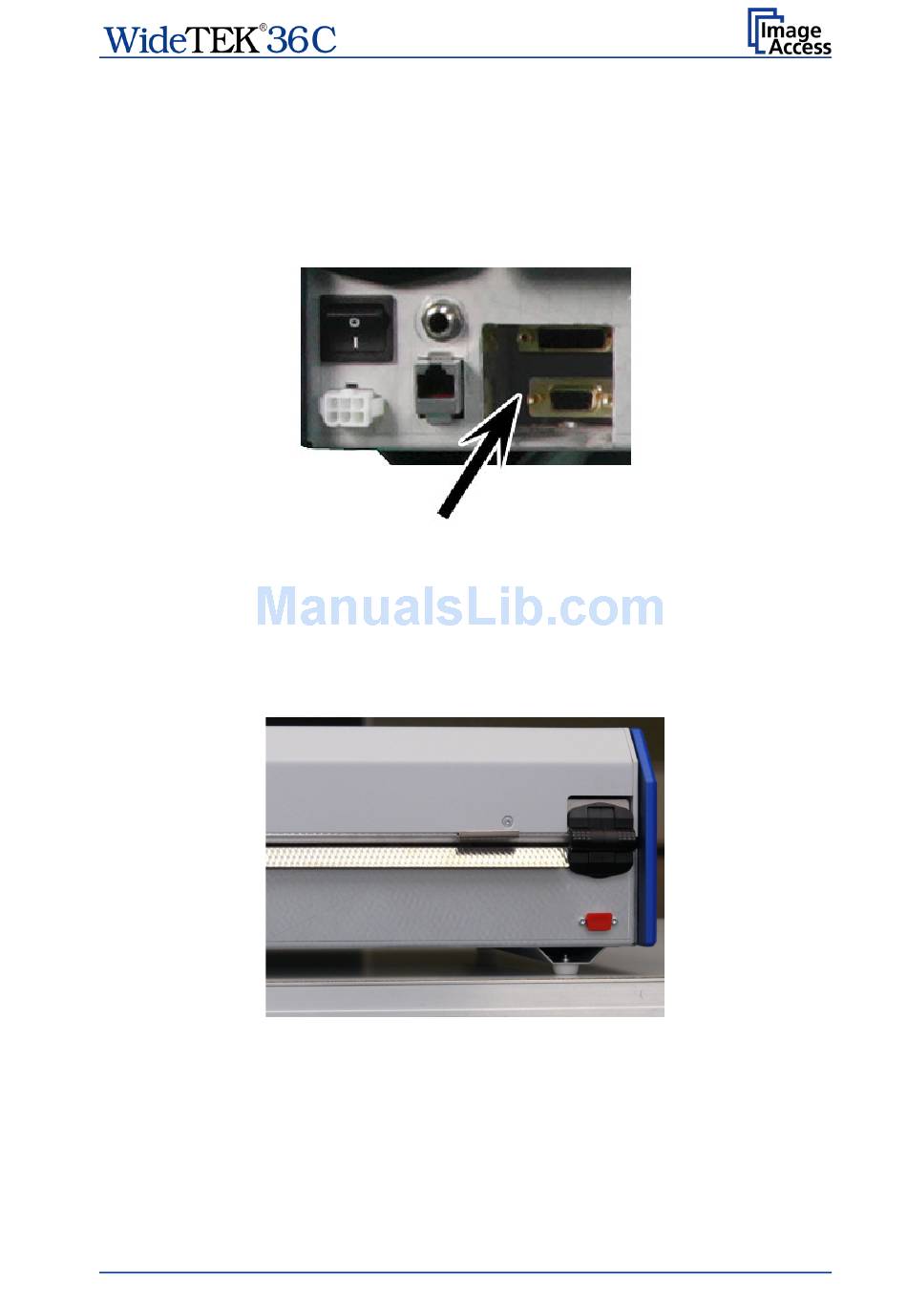

Picture 9: Recovery Key connector, covered with plastic cap
Detailed information about the recovery function can be found in the separate
Setup And Assembly Manual.
Please note: The recovery function should only be activated by an administrator!
