C H A P T E R 2
Installing your interactive whiteboard system
Use the mechanical adjustments described in the installation document and the image alignment
screen to adjust the projected image size, shape and location so that you can see the full projected
image clearly. Don't use other images, which might be cropped or scaled by the projector and result in
a misleading projected image size, shape and location.
When adjusting keystone (tilt), ensure that the top and bottom edges of the image are horizontal
before you position the left and right edges of the image relative to your interactive whiteboard.
To fine-tune the image, you might need to repeat all steps described in the installation document in
smaller increments.

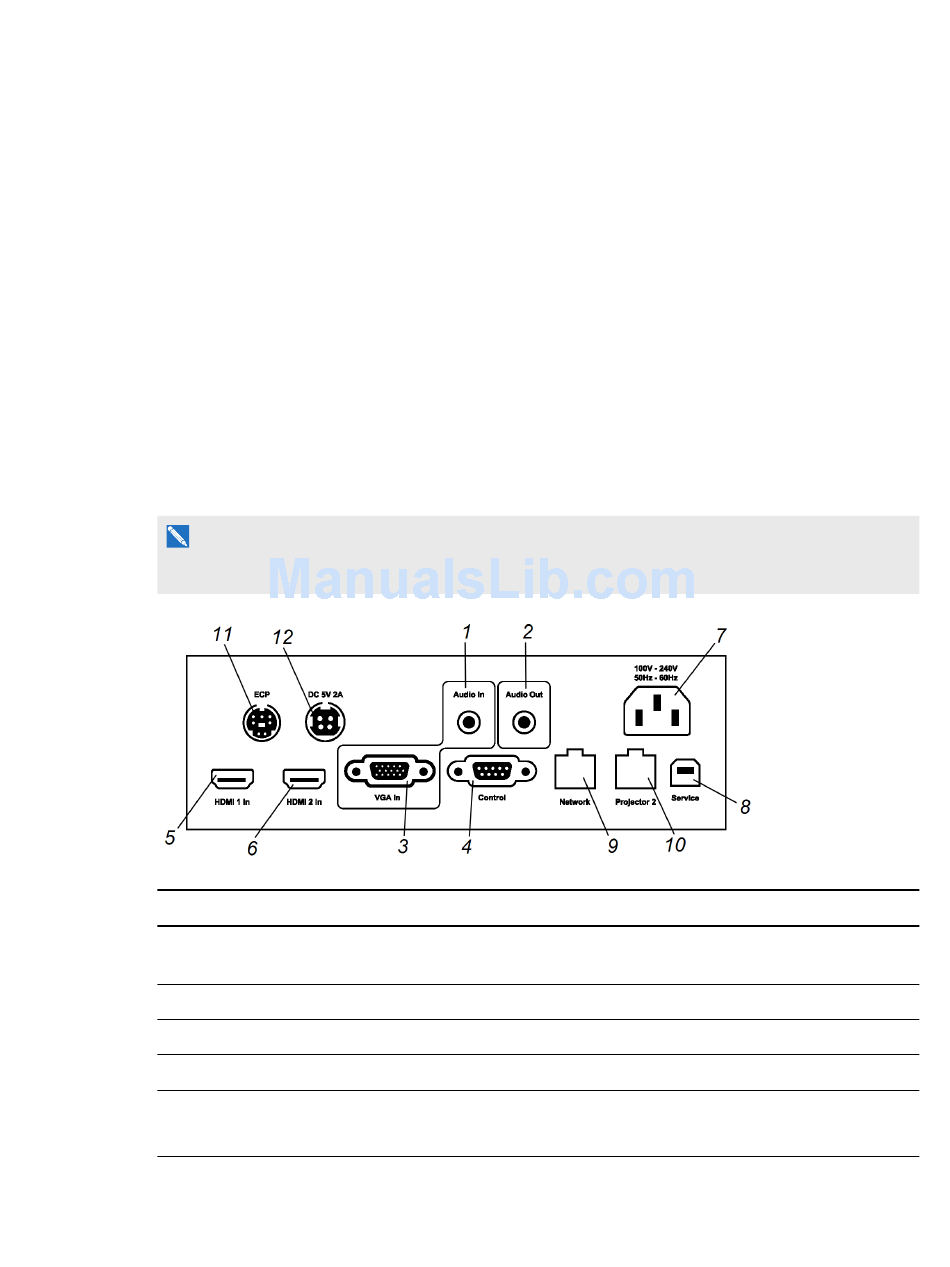

Projector connection diagram

You can connect a variety of peripheral devices to your projector, including DVD/Blu-ray players,
document cameras, and other high-definition sources, as well as peripheral device outputs such as a
secondary projector or other displays, and powered speakers.
N O T E
You might need to purchase third-party adapters to connect certain peripheral devices.
No. Connector
1 3.5 mm phone jack audio input
2 3.5 mm phone jack audio output
3 DB15F RGB VGA video input
4 DB9F RS-232
5 HDMI 1 In
11 smarttech.com/kb/170453
Connect to:
Audio sources associated with the computer
connected to the VGA video input source.
External speakers (optional, not included)
Secondary computer (optional, not included)
ECP cable harness
Primary computer high-definition media (audio and
video) source (not included)
