SMART Board® 885ix-SMP interactive whiteboard system cabling guide

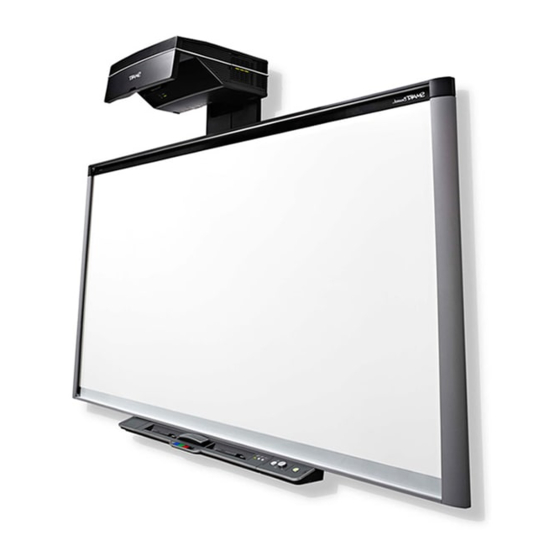

Your SMART Board 885ix-SMP interactive whiteboard
includes:
• an integrated extended control panel (ECP) that controls
power, source selection and volume. The ECP also acts as
an integrated USB hub, enabling you to switch seamlessly
between two connected computers.
• a USB A connection for an easily accessible USB connection
for your in-room computer.
• a USB cable to connect a dedicated in-room computer.
• a SMART Meeting Pro™ software download for the
in-room computer.
• a SMART GoWire™ auto-launch cable with SMART
Meeting Pro software to connect to a guest laptop.
• a VGA connection kit for easy access to a VGA connection
point on the SMART Board interactive whiteboard.
• a CAT 5 USB extender for SB800 series cable to extend
your USB connection up to 50' (15 m).
Cables included in your SMART Board 885ix-SMP interactive whiteboard system
a Power (country-specific)
b SBX800 CAT5-XT
e f Stereo cable
USB A / USB mini-B
16' (5 m)
Cables not included
k Cat 5
j VGA
×2
m n
Cat 5 HDMI
≤ 50' (15 m)
smarttech.com/support
smarttech.com/contactsupport
© 2012 SMART Technologies ULC. All rights reserved. SMART Board, SMART Meeting Pro, SMART GoWire, smarttech, the SMART logo and all SMART taglines are
trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All other third-party product and company names may be trade-
marks of their respective owners. One or more of the following patents: US6320597; US6326954; US6540366; US6563491; US6741267; US6803906; US6829372;
US6919880; US6954197; US7151533; US7184030; US7236162; US7411575; US7532206; US7619617; US7643006; US7692625; US7757001; US7880720;
USD612396; USD616462; USD617332; USD633546; USD635189; USD636183; USD636784. Other patents pending. Contents are subject to change without notice.
01/2012.
SMART UX60
projector
SMART Board 885
interactive whiteboard
ECP
Pen tray
SBX800
CAT5-XT
SMART GoWire
d USB B to R/A mini-B
c
Video connector cable
h ECP control and power
g SMART GoWire
RS-232 room control i
p RCA kit r
CAT5-XT-1100
*1016956*
100-240V AC
LAN 50-60 Hz
a
k
Guest laptop
VGA 2
i
j
b
s
Cat 5
m
90' (27 m)
≤
SB800 CAT5-XT
1016956 Rev 01
Standard cable connections
SMART UX60 projector
connection panel
SMART UX60
projector
Internal
cameras
SB885
(×4)
f
c
ECP
Pen tray SBX800
CAT5-XT
Back view of pen tray
Dedicated in-room
computer
VGA 1
j e h
ECP
