SMART Board 880-SMP Cabling Manual

SMART Board® 880-SMP and 885-SMP interactive whiteboard cabling guide
Your SMART Board 880-SMP or 885-SMP interactive
whiteboard includes the following:
• A pen tray with an integrated power button. The pen tray's
other buttons activate the pen's color, on-screen keyboard,
right-click, Orientation and Help functions.
• A SMART Meeting Pro™ software download information card
for your computer.
• A SMART GoWire™ auto-launch cable with SMART
Meeting Pro software to connect to your guest laptop.
• A CAT 5 USB extender for SB800 series to extend your
USB connection up to 50' (15 m).
Cables included with your SMART Board 800-SMP and 885-SMP interactive whiteboard
a Power (country-specific)
b Power adapter
smarttech.com/support
smarttech.com/contactsupport
© 2012 SMART Technologies ULC. All rights reserved. SMART Board, SMART Meeting Pro, SMART GoWire, smarttech, the SMART logo and all SMART taglines are
trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All third-party product and company names may be trademarks of
their respective owners. One or more of the following patents: US6320597; US6326954; US6540366; US6563491; US6741267; US6803906; US6829372; US6919880;
US6954197; US7151533; US7184030; US7236162; US7411575; US7532206; US7619617; US7643006; US7692625; US7757001; US7880720; USD612396;
USD616462; USD617332; USD635189; USD636183; and USD636784. Other patents pending. Contents are subject to change without notice. 01/2012.
SBX800 CAT5-XT
c
Cables not included
e
VGA
*1016944*

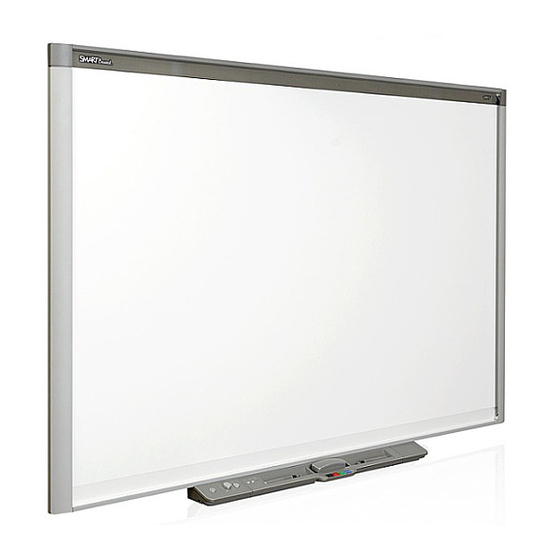

SMART Board 880-SMP
