SMART Board 880i5 User Manual

Interactive whiteboard system
Hide thumbs

Advertisement

Quick Links

Download this manual
SMART Board™ 880i5/880i5-MP and 885i5/885i5-MP
interactive whiteboard system
For cautions, warnings and other important product information see Important Information for SMART
Board™ 885i5 and 885i5-MP interactive whiteboard system users, (smarttech.com/kb/131396).

Advertisement

loading
Need help?

Need help?

Do you have a question about the 880i5 and is the answer not in the manual?

Questions and answers

Related Manuals for SMART Board 880i5

Summary of Contents for SMART Board 880i5

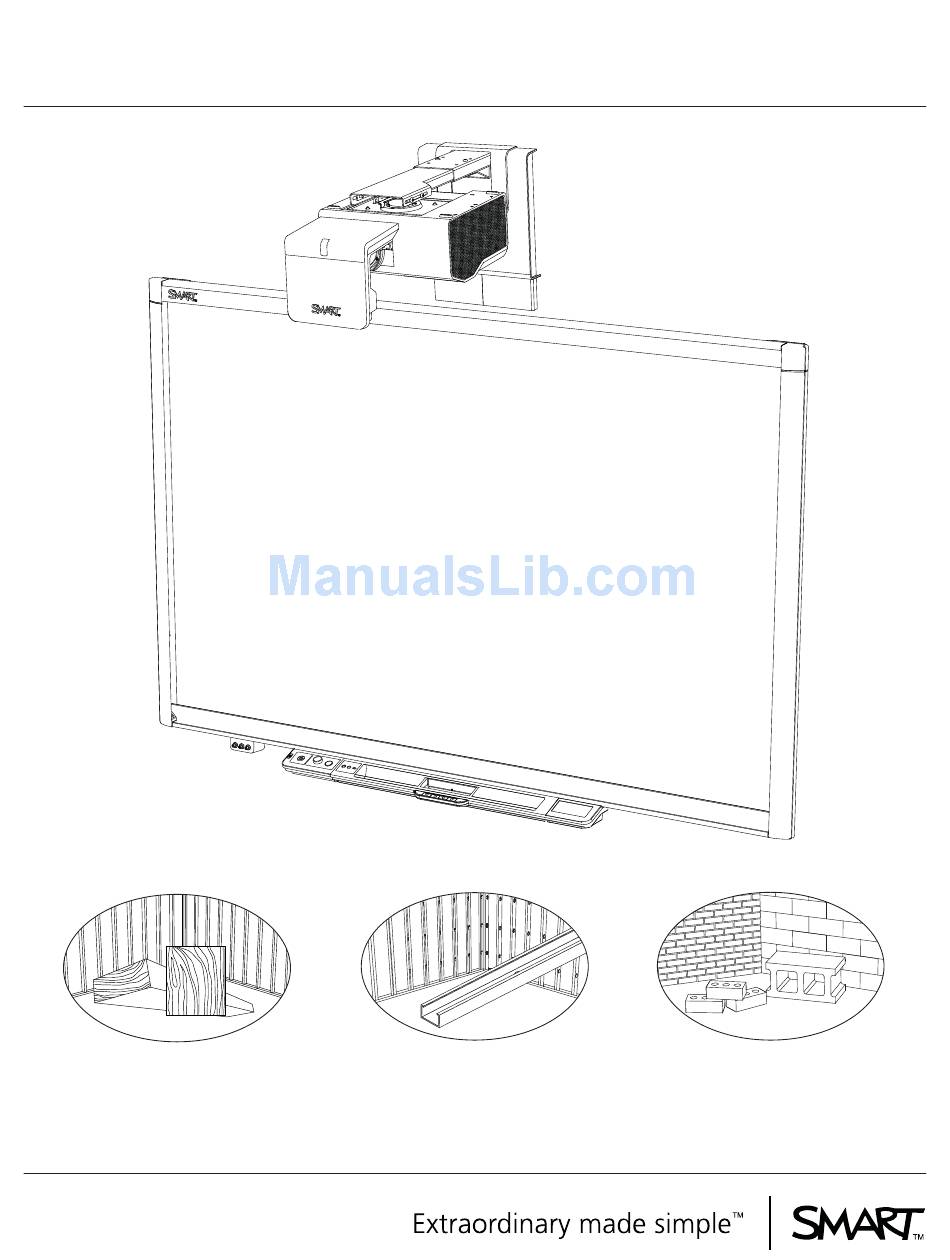

  • Page 1 SMART Board™ 880i5/880i5-MP and 885i5/885i5-MP interactive whiteboard system For cautions, warnings and other important product information see Important Information for SMART Board™ 885i5 and 885i5-MP interactive whiteboard system users, (smarttech.com/kb/131396).
  • Page 2 99-01121-21 A1...
  • Page 3 í kami a st ny s ur itého druhu zdiva. V p ípad , že pot ebujete nainstalovat váš produkt SMART na st ny ze železobetonu, st ny ze sádrokartonu, st ny neobvyklé konstrukce a jiné druhy st n, obra te se na váš místní...
  • Page 4 Au cas où vous deviez installer votre produit SMART sur un mur en béton armé, sur un mur de lattis, sur un mur de structure inhabituelle ou un autre type de mur, consultez votre service de l'urbanisme pour qu'il vous fournisse des instructions, des recommandations et vous dise comment travailler en toute sécurité.
  • Page 5 Seu produto SMART inclui instruções e peças para instalação em paredes de metal e viga de madeira e somente em determinados tipos de parede de alvenaria.
  • Page 6 SMART Board 880i5/880i5-MP and 885i5/885i5-MP interactive whiteboard system SB880/SB885 SB880/SB885 SB880 a (×2) b (×2) c (×5) d (×5) SB885 ×2 a (×2) b (×2) c (×10) d (×10) ×2 SB880i5-MP and SB885i5-MP SMART GoWire ™ auto-launch cable SMART GoWire™ Auto-Launch Cable...
  • Page 7 SMART UF75/UF75w projector system 94” 77” 87” " 64” " " " CR-2025 Vol. e (×2) f (×2) g (×7) h (×7) k (×3) m (×2) q (×7) n (×1) ×2 SB800i5/SB885i5 extended control panel (ECP) u (×2) w (×2) p (×2)
  • Page 8 ×2 3/32" (2.5 mm) 7/32" (5 mm) RJ-45 1/4" (6 mm) 1/2" (13 mm) SB880 z (×7) y (×7) SB885 z (×12) y (×12) 99-01121-21 A1...
  • Page 9 99-01121-21 A1...
  • Page 10 94” 77” 87” 64” " " " " All of the lines that you draw to install the SB8 must be straight and level on a plumb wall. You must install the unit straight, level and plumb for it to operate properly. Všechny áry, které...
  • Page 11 Todas las líneas que dibuje para instalar el SB8 deben ser rectas y niveladas, y en una pared vertical. Para que la unidad funcione correctamente, debe instalarse recta, nivelada y vertical. Las líneas que trace para instalar la pizarra SB8 deben estar bien derechas y a nivel respecto de la pared.
  • Page 12 78 1/2" (199 cm) 99-01121-21 A1...
  • Page 13 99-01121-21 A1...
  • Page 14 1/2" (13 mm) q (×4) 1/2" (13 mm) 1/4" (6 mm) q (×7) 99-01121-21 A1...
  • Page 15 If you have a metal stud wall, drill the holes twice according to these instructions. Jestliže máte kovové p í ky, vyvrtejte díry dvakrát dle tohoto návodu. Hvis du har en væg med metalstolper, skal der bores huller, som er dobbelt så store som angivet i disse instruktioner.
  • Page 16 1 3/4" (45 mm) 1/4" (6 mm) f (×7) h (×2) h (×3) g (×3) k (×1) 1/4" (6 mm) 99-01121-21 A1...
  • Page 17 94” 77” 87” 64” " " " " 99-01121-21 A1...
  • Page 18 h (×2) k (×2) h (×4) g (×4) 99-01121-21 A1...
  • Page 19 99-01121-21 A1...
  • Page 20 m (×2) " " " " SB880 m (×2) " " " " SB885 SB880 SB885 99-01121-21 A1...
  • Page 21 99-01121-21 A1...
  • Page 22 99-01121-21 A1...
  • Page 23 99-01121-21 A1...
  • Page 24 SB880 SB880 c (×5) d (×5) y (×5) z (×5) SB885 SB885 ×2 ×2 c (×10) d (×10) y (×10) z (×10) SB885 SB880 4″ (10.2 cm) 99-01121-21 A1...
  • Page 25 5×/10× 1/4" (6 mm) 5×/10× 5×/10× 5×/10× 5×/10× 99-01121-21 A1...
  • Page 26 4× 99-01121-21 A1...
  • Page 27 99-01121-21 A1...
  • Page 28 RJ-45 SB880 SB885 99-01121-21 A1...
  • Page 29 smarttech.com/kb/142552 p (×2) 99-01121-21 A1...
  • Page 30 u (×2) 3/32" (2.5 mm) 99-01121-21 A1...
  • Page 31 99-01121-21 A1...
  • Page 32 ×2 SB880 SB885 99-01121-20 A0...
  • Page 33 1/4" (6mm) 99-01121-21 A1...
  • Page 34 y (×2) a (×2) z (×2) b (×2) 99-01121-21 A1...
  • Page 35 99-01121-21 A1...
  • Page 36 RJ-45 3.5 mm Input Menu Hide Display Mode Mute 99-01121-21 A1...
  • Page 37 ×4 ×4 99-01121-21 A1...
  • Page 38 99-01121-21 A1...
  • Page 39 7/32" (5 mm) 94” 77” 7 7 7 87” 64” 99-01121-21 A1...
  • Page 40 99-01121-21 A1...
  • Page 41 99-01121-21 A1...
  • Page 42 99-01121-21 A1...
  • Page 43 99-01121-21 A1...
  • Page 44 99-01121-21 A1...
  • Page 45 99-01121-21 A1...
  • Page 46 SB880i5 SB880i5-MP SB885i5 SB885i5-MP 99-01121-21 A1...
  • Page 47 SMART Board™ X885i5 interactive whiteboard system User’s guide smarttech.com/kb/154548 99-01121-21 A1...
  • Page 48 Batteries are regulated in many countries. Check with your reseller to find out how to recycle used batteries. There are special regulations that must be met when shipping a product that has a lithium ion battery packaged with the product or shipping a lithium ion battery. When returning a SMART...
