SMART Board® 800i6
Interactive whiteboard systems
Configuration and user's guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 800i6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMART Board 800i6

Summary of Contents for SMART Board 800i6

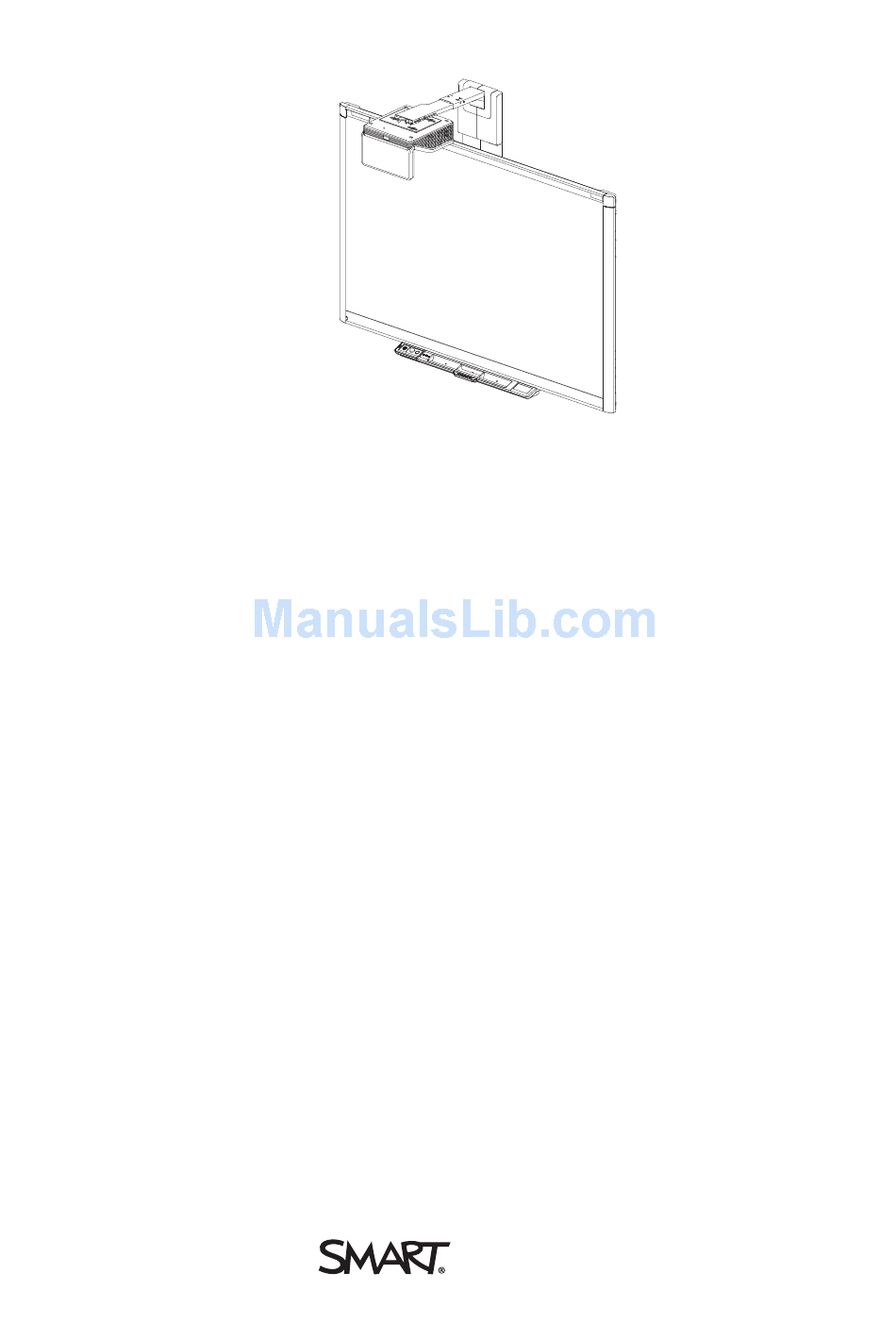

  • Page 1 SMART Board® 800i6 Interactive whiteboard systems Configuration and user’s guide...
  • Page 3 FCC warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the US Federal Communications Commission Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications.

  • Page 4: Important Information

    Important information Before you install and use your SMART Board® 480i6 interactive whiteboard system, read and understand the safety warnings and precautions in this user’s guide and the included warnings document. These safety warnings and precautions describe the safe and correct operation of your interactive whiteboard system and its accessories, helping you to prevent injuries and equipment damage.
  • Page 5 SMART Board interactive whiteboard. I M P O R T A N T Use the SMART Board 800i6-SMP interactive whiteboard system installation guide (smarttech.com/kb/157703) and theSMART Board 800i6-SMP interactive whiteboard system quick installation guide (smarttech.com/kb/170TBA) to install your interactive...
  • Page 6 I M P O R T A N T I N F O R M A T I O N The SMART Board 880i6 and 885i6 interactive whiteboard system textless installation guide is also available online (smarttech.com/kb/170499). Make sure an electrical socket is near your SMART product and remains easily accessible during use.

  • Page 7: Other Precautions

    If you own a SMART product other than a SMART Board 880i6 and 885i6 series interactive whiteboard system, refer to the installation manual for your product for relevant warnings and maintenance instructions. Environmental requirements Before you install your SMART Board 480 interactive whiteboard system, review the following environmental requirements. Environmental Parameter...

  • Page 8: Table Of Contents

    Safety warnings, cautions and important information Installation Operation Other precautions Environmental requirements Chapter 1: About your interactive whiteboard system SMART Board 480i6 interactive whiteboard system features SMART Board 800 series interactive whiteboard SMART UF70 or SMART UF70w projector Extended Control Panel (ECP) Included accessories Remote control...
  • Page 9 C O N T E N T S Chapter 3: Using your interactive whiteboard system Using your projector Using your remote control Replacing the remote control battery Using the remote control buttons Adjusting projector settings Focusing the image Adjusting the image Projector connection diagram Using your interactive whiteboard Using the Extended Control Panel (ECP)
  • Page 10 C O N T E N T S Replacing the projector lamp Removing and replacing the projector lamp module Resetting the lamp hours Chapter 6: Troubleshooting your interactive whiteboard system Before you start Locating status lights Locating serial numbers Determining your interactive whiteboard system’s status Resolving interactive whiteboard issues Resolving operation issues Resolving connection issues...
  • Page 11 C O N T E N T S Appendix A: Remotely managing your system through a network interface Webpage management Accessing webpage management Home Control panel Control panel II USB Control settings Network settings Email alerts Password settings Simple Network Management Protocol (SNMP) Appendix B: Remotely managing your system through an RS-232 serial interface Connecting your room control system to the ECP Serial interface settings...
  • Page 12 C O N T E N T S Command/response definitions Field definitions Command/response definitions Field definitions Command/response definitions Field Definitions Command/response definitions Field definitions Command/response definitions Appendix C: Remote control code definitions Appendix D: Hardware environmental compliance Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives) Batteries Perchlorate material...

  • Page 14: Chapter 1: About Your Interactive Whiteboard System

    Eraser VGA connection kit SMART Board 480i6 interactive whiteboard system accessories RCA connector pod Your SMART Board 480i6 interactive whiteboard system combines the following components: SMART Board 800 series interactive whiteboard Wall-mounted, short-throw SMART UF70 or SMART UF70w projector Accessories and optional equipment This chapter describes the features of your interactive whiteboard and provides information about product parts and accessories.

  • Page 15: Smart Board 480I6 Interactive Whiteboard System Features

    When you use SMART software with your SMART Board 480i6 interactive whiteboard system, you can write or draw over the projected computer image in digital ink using a pen tray pen or your finger, and then save these notes to a .notebook file or directly into any Ink Aware application.

  • Page 16: Smart Uf70 Or Smart Uf70W Projector

    C H A P T E R 1 About your interactive whiteboard system Other features of your interactive whiteboard include: A modular pen tray that automatically detects when you pick up a pen tray pen or the eraser Pen tray buttons that activate the pens’ colours and the on-screen keyboard, right- click, Orientation and Help functions A durable hard-coated surface that is...

  • Page 17: Extended Control Panel (Ecp)

    C H A P T E R 1 About your interactive whiteboard system A secure mounting and installation system that includes the following: An optional projector padlock ring to prevent removal of the projector from the boom Accessory mounting hardware for solid masonry or framed wall installations kit part number 1007416 Templates and instructions for positioning the system safely Projector information...

  • Page 18: Vga Connection Kit

    SMART Board 480i6 interactive whiteboard system accessories The following accessory is included with SMART Board 480i6 interactive whiteboard systems. RCA connector pod The RCA connector pod includes two RCA jacks for dual-channel audio input and one for composite video input.

  • Page 20: Chapter 2: Installing Your Interactive Whiteboard System

    Securing the projector to the boom Routing the cables Installing SMART software Consult the SMART Board 480i6 interactive whiteboard system installation document included with your product for instructions on how to install and secure your system. I M P O R T A N T Use the SMART Board 800i6-SMP interactive whiteboard system installation guide...
  • Page 21 C H A P T E R 2 Installing your interactive whiteboard system W A R N I N G Refer to your interactive whiteboard system’s specifications (available at smarttech.com/support) for its weight. Check your local building regulations to ensure that your wall can support this weight and use appropriate mounting hardware for your wall type.

  • Page 22: Securing Your Interactive Whiteboard System

    C H A P T E R 2 Installing your interactive whiteboard system Securing your interactive whiteboard system This section explains how to secure the different components of your interactive whiteboard system. Locking the pen tray to your interactive whiteboard To learn how to lock the pen tray to your interactive whiteboard, see the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817).

  • Page 23: Installing Smart Software

    C H A P T E R 2 Installing your interactive whiteboard system Installing SMART software You must install SMART software, such as SMART Meeting Pro™ software or SMART Notebook™ collaborative learning software on the computer connected to your interactive whiteboard system to access all of its features. Download SMART software from smarttech.com/software.

  • Page 24: Chapter 3: Using Your Interactive Whiteboard System

    Chapter 3 Using your interactive whiteboard system Using your projector Using your remote control Replacing the remote control battery Using the remote control buttons Adjusting projector settings Focusing the image Adjusting the image Projector connection diagram Using your interactive whiteboard Using the Extended Control Panel (ECP) Using the RCA connector pod This chapter describes the basic operation of your interactive whiteboard system and explains...

  • Page 25: Replacing The Remote Control Battery

    C H A P T E R 3 Using your interactive whiteboard system Replacing the remote control battery Follow this procedure to replace the remote control battery. W A R N I N G Reduce the risk associated with a leaking battery in the projector’s remote control by following these practices: Use only the specified CR2025 coin-cell battery.

  • Page 26: Using The Remote Control Buttons

    C H A P T E R 3 Using your interactive whiteboard system Using the remote control buttons The projector remote control enables you to access on-screen menus and change projector settings. Use the Power button on the remote control or ECP to put the projector into Standby mode or to turn it on.

  • Page 27: Adjusting Projector Settings

    C H A P T E R 3 Using your interactive whiteboard system N O T E The Mute,Volume Up andVolume Down buttons work only if there is an audio source connected to the projector for the currently selected video input source. Adjusting projector settings The remote control’s Menu button enables you to access the on-screen display to adjust the projector settings.
  • Page 28 C H A P T E R 3 Using your interactive whiteboard system Setting Notes V-Position Moves the vertical position Don’t adjust this setting unless you’re advised of the source video up or to by SMART Support. down from -5 to 5 (relative to Apply this setting only after you make all boom the projected image).
  • Page 29 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Projector Functions menu Auto Signal Enables or disables signal The default is off. Detect searching of input Select On to have the projector continuously connectors. switch inputs until it finds an active video source.
  • Page 30 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Projector ID Displays the projector’s You can refer to or change this number when unique ID number (from 0 to using the network remote management feature 99) within your (see Remotely managing your system through organisation’s network.
  • Page 31 C H A P T E R 3 Using your interactive whiteboard system Setting Notes DHCP Displays the status of the The default is on. network’s Dynamic Host On enables a DHCP server on the network to Configuration Protocol automatically assign an IP address to the (DHCP) as On or Off.
  • Page 32 C H A P T E R 3 Using your interactive whiteboard system Setting Notes Location Displays the projector’s You can set the projector’s location using the location as set by an remote management features (see Remotely administrator (maximum 16 managing your system through a network characters).

  • Page 33: Focusing The Image

    C H A P T E R 3 Using your interactive whiteboard system Setting Notes Network Displays the projector’s If you haven’t enabled the Network and VGA Version network communications Out setting, this setting is unable to display processor firmware version the projector’s network communications in x.x.x.x format.

  • Page 34: Adjusting The Image

    C H A P T E R 3 Using your interactive whiteboard system Adjusting the image Refer to these notes when adjusting the projected image as described in the SMART Board 880i6 and 885i6 interactive whiteboard system installation guide included (smarttech.com/kb/170499). Whilst adjusting the projected image size, shape and location, use the projector’s default background so that you can see the full projected image clearly.
  • Page 35 C H A P T E R 3 Using your interactive whiteboard system Connector Connect to: Power Mains power supply 7-pin mini-DIN ECP cable harness 4-pin power mini-DIN 5V/2A output ECP cable harness HDMI input High-definition video and audio source (not included) DB15F RGB video input (VGA 1) Primary computer (not included)

  • Page 36: Using Your Interactive Whiteboard

    C H A P T E R 3 Using your interactive whiteboard system Using your interactive whiteboard For information about how to use your interactive whiteboard, refer to the SMART Board 800 series interactive whiteboard user's guide (smarttech.com/kb/144817). When you connect your SMART Board interactive whiteboard to a computer with SMART software, you can access the full capabilities of your interactive whiteboard.
  • Page 37 C H A P T E R 3 Using your interactive whiteboard system The following diagram and table describe the components of the ECP. Number Function Left side USB A port (for USB drives) N O T E USB drives that you connect to this port are only accessible to the room computer (the computer connected to the USB1 port).

  • Page 38: Using The Rca Connector Pod

    C H A P T E R 3 Using your interactive whiteboard system Using the RCA connector pod The RCA connector pod enables you to connect DVD/Blu-ray players and similar devices. The following diagram and table describe the components of the RCA connector pod. Number Function RCA composite video input jack (for peripheral devices such as a DVD/Blu-ray...

  • Page 40: Appendix 4: Integrating Other Devices

    SMART UF70 projector SMART UF70w projector Connecting peripheral sources and outputs This appendix provides information on integrating your SMART Board 480i6 interactive whiteboard system with peripheral devices. Video format compatibility Your projector has a native video format and various video format compatibility modes. You can change image appearances for certain formats and compatibilities.

  • Page 41: Video Format Compatibility

    C H A P T E R 4 Integrating other devices Video format compatibility The following tables list the projectors’ compatible VESA RGB video formats by resolution, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 14.

  • Page 42: Smart Uf70W Projector

    C H A P T E R 4 Integrating other devices Resolution Mode Aspect ratio Refresh rate Match Input (Hz) appearance 1600 x 900 1.44M9 16:9 59.946 Letterbox 1600 × 1200 UXGA Full screen 1680 x 1050 1680x1050 50 16:10 49.974 Letterbox 1680 x 1050...
  • Page 43 C H A P T E R 4 Integrating other devices Resolution Mode Aspect Refresh Match Input Match Input ratio rate (Hz) appearance appearance (16:10 aspect (16:9 aspect ratio mode) ratio mode) 1280 × 1024 SXGA3 75 75.025 Pillarbox Pillarbox 1600 ×...

  • Page 44: Hd And Sd Signal Format Compatibility

    C H A P T E R 4 Integrating other devices HD and SD signal format compatibility The following tables list the projectors’ high definition (HD) and standard definition (SD) format signal compatibility, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 14.

  • Page 45: Video System Signal Compatibility

    C H A P T E R 4 Integrating other devices Video system signal compatibility The following tables list the projectors’ video system signal compatibility, particularly for signals delivered over S-Video and Composite video connectors, which the projector adjusts automatically when you use the aspect ratio commands described in Adjusting projector settings on page 14.

  • Page 46: Connecting Peripheral Sources And Outputs

    RCA connector pod are for input only. These RCA jacks don’t provide an output signal. To connect a laptop to a SMART Board 480i6 interactive whiteboard system 1. Connect a USB cable from the laptop computer to the ECP.

  • Page 48: Chapter 5: Maintaining Your Interactive Whiteboard System

    Chapter 5 Maintaining your interactive whiteboard system Maintaining your interactive whiteboard Cleaning the projector Focusing and adjusting the projector image Replacing the projector lamp Removing and replacing the projector lamp module Resetting the lamp hours This chapter includes methods for properly cleaning and preventing damage to your SMART Board 480i6 interactive whiteboard system.

  • Page 49: Focusing And Adjusting The Projector Image

    C H A P T E R 5 Maintaining your interactive whiteboard system Do not spray cleaners, solvents or compressed air directly on the projector. Do not use spray cleaners or solvents near any part of the projector because they can damage or stain the unit.

  • Page 50: Replacing The Projector Lamp

    C H A P T E R 5 Maintaining your interactive whiteboard system Replacing the projector lamp This section provides instructions for replacing the projector lamp module. Removing and replacing the projector lamp module Eventually the lamp will dim and a message will appear reminding you to replace it. Make sure that you have a replacement lamp module before proceeding with the following instructions.
  • Page 51 C H A P T E R 5 Maintaining your interactive whiteboard system When replacing the projector lamp module: Put the projector into Standby mode and wait 30 minutes for the lamp to cool completely. Do not remove any screws other than those specified in the lamp replacement instructions.
  • Page 52 C H A P T E R 5 Maintaining your interactive whiteboard system 5. Use a Phillips screwdriver to loosen the two captive screws from the bottom of the lamp module and gently remove lamp module. N O T E Don’t try to remove these screws.

  • Page 53: Resetting The Lamp Hours

    C H A P T E R 5 Maintaining your interactive whiteboard system 6. Press the Power button once on the remote control or ECP to confirm that the projector is operating and that the lamp module is correctly installed. 7.
  • Page 54 C H A P T E R 5 Maintaining your interactive whiteboard system 3. Press the Menu button on the remote control. The SMART UF 70 Settings menu appears. 4. Select to confirm that Lamp Hour is reset to zero.

  • Page 56: Chapter 6: Troubleshooting Your Interactive Whiteboard System

    Chapter 6 Troubleshooting your interactive whiteboard system Before you start Locating status lights Locating serial numbers Determining your interactive whiteboard system’s status Resolving interactive whiteboard issues Resolving operation issues Resolving connection issues Resolving controller module issues Resolving projector issues Resolving projector errors Resolving image issues Loss of signal Partial, scrolling or incorrectly displayed image...

  • Page 57: Before You Start

    C H A P T E R 6 Troubleshooting your interactive whiteboard system This chapter provides basic troubleshooting information for your interactive whiteboard system. For issues not covered in this chapter, consult the SMART Support website (smarttech.com/support) or contact your authorised SMART reseller (smarttech.com/where). Before you start Before you troubleshoot your interactive whiteboard system or contact SMART Support or your authorised SMART reseller for assistance, you need to do the following:...

  • Page 58: Locating Serial Numbers

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Locating serial numbers The SMART Board 800 series interactive whiteboard serial number is located on the lower-right edge of your interactive whiteboard’s frame. For more information, see the SMART Board 800 series interactive whiteboard user’s guide (smarttech.com/kb/144817).

  • Page 59: Determining Your Interactive Whiteboard System's Status

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Determining your interactive whiteboard system’s status Use the following table to determine the status of your interactive whiteboard system: Projected Touch and Status and related image pen control troubleshooting Projector Projector...

  • Page 60: Resolving Interactive Whiteboard Issues

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Projected Touch and Status and related image pen control troubleshooting Projector Projector ECP light Interactive Power light Service whiteboard light Ready light Solid amber Flashing red None There’s an issue with the projector lamp.

  • Page 61: Resolving Connection Issues

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Resolving connection issues To resolve connection issues, complete the following tasks: Confirm that the ECP cable harness’s 4-pin power mini-DIN connector is properly connected to the DC 5V 2A connector on the projector. Confirm that the ECP cable harness’s DB9M RS-232 connector is properly connected to the Control connector on the projector.

  • Page 62: Resolving Projector Issues

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Resolving projector issues Resolving projector errors Resolving image issues To resolve common image issues, complete the following tasks: Ensure the computer or other video source is on and set to display a resolution and refresh rate supported by the projector (see Video format compatibility on page 27).

  • Page 63: Partial, Scrolling Or Incorrectly Displayed Image

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Partial, scrolling or incorrectly displayed image N O T E This procedure may vary depending on your version of Windows operating system or Mac OS X operating system software and your system preferences. The following procedures apply to Windows 7 operating systems and Mac OS X 10.8 operating system software.

  • Page 64: Frozen Image

    Adjust the projected image. See the included SMART Board 800i6 interactive whiteboard system...

  • Page 65: Resolving Audio Issues

    Make sure that there are no obstructions behind the projector’s wall-mounting bracket and that the bracket is firmly secured to the wall according to the installation instructions. Adjust the projected image. See the included SMART Board 800i6 interactive whiteboard system installation guide (smarttech.com/kb/170TBA) and Adjusting the image on page 21.

  • Page 66: Resolving Network Communication Issues

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Resolving network communication issues If you don’t have network access, perform the following procedure to troubleshoot your system. To resolve network communication issues 1. Ensure that your network cable is properly connected to the RJ45 connection on the projector’s connection panel.

  • Page 67: Retrieving Your Password

    C H A P T E R 6 Troubleshooting your interactive whiteboard system Retrieving your password If you forget the projector’s password, you can retrieve it by accessing the projector service menu directly from the projector or from the password settings menu on your projector’s webpage (see Password settings on page 62).

  • Page 68: Appendix A: Remotely Managing Your System Through A Network Interface

    Email alerts Password settings Simple Network Management Protocol (SNMP) This chapter includes detailed instructions on how to remotely manage your SMART Board 480i6 interactive whiteboard system settings through a network interface. Webpage management You can access advanced setup features via the projector’s webpage. This webpage enables you to manage the projector from a remote location using any computer connected to your intranet.

  • Page 69: Accessing Webpage Management

    A P P E N D I X A Remotely managing your system through a network interface Accessing webpage management Before you can access the webpage, connect your projector to the network and then enable the projector’s network functions using the projector’s menu. An IP address appears on the on- screen display.
  • Page 70 A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Mute Turns the mute settings on or off. Select On to mute the projector’s sound and Off to turn off mute. Volume Control Enables volume control on the on-screen display.
  • Page 71 A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Lamp Mode Adjusts lamp brightness to Standard or Economy. Standard displays a high-quality, bright image. Economy increases the lamp life by decreasing the brightness of the image. Auto Power Off Sets the length of the auto power off countdown timer between 1 and 240 minutes.

  • Page 72: Control Panel Ii

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description High Speed Fan Adjusts the speed of the projector’s fan. Select High orNormal. N O T E Use the High setting when the projector’s temperature is high or the altitude is above 1800m (6000').

  • Page 73: Network Settings

    A P P E N D I X A Remotely managing your system through a network interface Network settings This menu allows you to use or not use Dynamic Host Control Protocol (DHCP) and to set the network-related addresses and names when DHCP is not used. Submenu setting Description DHCP...

  • Page 74: Email Alerts

    A P P E N D I X A Remotely managing your system through a network interface Submenu setting Description Trap Destination Address Displays or allows you to set the IP address of the network’s SNMP TRAP manager in values between 0.0.0.0 and 255.255.255.255.

  • Page 75: Password Settings

    A P P E N D I X A Remotely managing your system through a network interface Password settings This menu provides a security function that allows an administrator to manage projector use and enable the Administrator Password function. Submenu setting Description Password When the password function is enabled, the administrator...

  • Page 76: Appendix B: Remotely Managing Your System Through An Rs-232 Serial Interface

    Field Definitions Command/response definitions Field definitions Command/response definitions This appendix includes detailed instructions on how to set up your computer or room control system to remotely manage your SMART Board 480i6 interactive whiteboard system settings through an RS-232 serial interface.

  • Page 77: Connecting Your Room Control System To The Ecp

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Connecting your room control system to the By connecting a computer or room control system to the 4-pin connector on the ECP, you can select video inputs, start up or shut down your interactive whiteboard system and request information such as projector lamp use, current settings and network addresses.

  • Page 78: Projector Programming Commands

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface 3. Configure your serial interface settings using the values from the table in the previous section and then press ENTER. An “invalid cmd= ? for help” message appears, and the > character appears as a command prompt on the following line.

  • Page 79: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field definitions Field Possible values Description This is an optional field and can simply be off option skipped. When specified, it forces the device to shut down –...

  • Page 80: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Responds when powered off get usb2source usb2source=[current] Field definitions Field Possible values Description The input source to switch to. None is a non- current input VGA1 selectable input and is returned in response to...

  • Page 81: Video Control

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface > set input=vga1 input = vga1 > set input=next input = composite > get videoinputs videoinputs = vga1, composite, hdmi1 > get usb1source usb1source = vga1 >...

  • Page 82: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface set sharpness [target] sharpness =[current] get sharpness sharpness =[current] set hposition [target] hposition =[current] get hposition hposition =[current] set vposition [target] vposition =[current] get vposition vposition =[current] set whitepeaking [target]...
  • Page 83 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target displaymode = SMART The ranges must match the OSD ranges Presentation = Bright room = Dark room = sRGB = User current displaymode SMART The ranges must match the OSD ranges...
  • Page 84 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target tint + val The ranges must match the OSD ranges – val = 0 ~ 100 current tint = 0 ~ 100 The ranges must match the OSD ranges target sharpness + val...
  • Page 85 A P P E N D I X B Remotely managing your system through an RS-232 serial interface target cyan + val The ranges must match the OSD ranges – val = 0 ~ 100 current cyan = 0 ~ 100 The ranges must match the OSD ranges target magenta + val...

  • Page 86: Audio Control

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface brightness=65 This sets the brightness of the specified source. >set brightness vga1 = 65 brightness vga1 = 65 This sets the brightness of the vga1 regardless of whether the projector is on this source or not. The operational parameters are ‘vga1’, ‘composite’, ‘hdmi1’.

  • Page 87: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field definitions Field Possible values Description Specifying + or – will cause volume to be target volume + val incremented or decremented from its current –...
  • Page 88 A P P E N D I X B Remotely managing your system through an RS-232 serial interface volume=0 >set volume=-10 volume=-10 >set volume +5 volume=-5 >set volume -15 volume=-20...

  • Page 89: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Network information Various network information. Command/response definitions Command Response Powered off get netstatus netstatus =[current] set network network=[current] get network network=[current] set dhcp [target] dhcp =[current] get dhcp dhcp =[current]...
  • Page 90 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target network Enable/Disable network module and VGA output current dhcp = on Enable/Disable for DHCP Networking = off target dhcp Enable/Disable for DHCP Networking current ipaddr...

  • Page 91: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface System Information Various system information. Command/response definitions Command Response Powered off set autosignal [target] autosignal =[current] get autosignal autosignal =[current] set lampreminder lampreminder = [target] [current]...
  • Page 92 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Powered off get startupscreen startupscreen = [current] set restoredefaults restoredefaults= [current] get lamphrs lamphrs=[current] set lamphrs [target] lamphrs=0 get syshrs syshrs=[current] get resolution resolution=[current]...

  • Page 93: Field Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Command Response Powered off set videomute [target] videomute=[current] get videomute videomute=[current] set vgaoutnetenable vgaoutnetenable = [target] [current] get vgaoutnetenable vgaoutnetenable = [current] emergencyalertmsg = emergencyalertmsg [current]...
  • Page 94 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target autopoweroff + val The ranges must match the OSD ranges – val = 0 ~ 240 current autopoweroff + val The ranges must match the OSD ranges –...
  • Page 95 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current = front The ranges must match the OSD ranges = ceiling projectionmode = rear = rear ceiling target startupscreen = smart The ranges must match the OSD ranges...
  • Page 96 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current language Arabic Must match the OSD setting Czech German Danish Greek Letters English Spanish Finnish French Norwegian (Norsk) Italian Japanese...
  • Page 97 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current videomute The ranges must match the OSD ranges target videomute = on The ranges must match the OSD ranges = off current Current status of the VGA Out Enable and...

  • Page 98: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Service Information These are commands used in servicing and manufacturing of the unit. They should be hidden from the user during normal operation. Command/response definitions Command Response...
  • Page 99 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target testpattern Set the test pattern to pattern number X (1~4). If only one test pattern, call it test pattern 1. current testpattern 1: Grid Current test pattern being displayed.
  • Page 100 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description current highspeedfan high The ranges must match the OSD ranges normal current statereporting Current state reporting value target statereporting = on State reporting value desired.

  • Page 101: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Engineering commands These commands are to be part of the RS232 list but not viewable by the “?” command Command/response definitions Command Response Powered off set dbmsgon [target]...
  • Page 102 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Field Possible Values Description target Whilst setting to on, whilst high speed fan temperaturereport mode turn on, will send out system temperature each 5 seconds target done Auto program waveform while standby...

  • Page 103: Command/Response Definitions

    A P P E N D I X B Remotely managing your system through an RS-232 serial interface Additional commands These commands & behaviours are to provide backward compatibility for legacy control interfaces. Command/response definitions Command Execute command: Behaviour set input=VGA1 set input=VGA1 switch to VGA1 port set input=HDMI...
  • Page 104 A P P E N D I X B Remotely managing your system through an RS-232 serial interface Unknown command If an unknown command is received, the projector must identify this to the user. This is accomplished by sending the following response back to the user. Please note that there is a space between “Invalid”...

  • Page 106: Appendix C: Remote Control Code Definitions

    Appendix C Remote control code definitions IR signal format: NEC1 Repeat Vendor code Key code format Byte 1 Byte 2 Byte 3 Byte 4 Input Power ( ) Menu Up ( ) Left ( ) Enter ( ) Right ( ) Down ( ) Hide Volume up ( )

  • Page 108: Appendix D: Hardware Environmental Compliance

    Appendix D Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives) Electrical and electronic equipment and batteries contain substances that can be harmful to the environment and to human health.

  • Page 110: Index

    Index document cameras 33 drywall 8 dust iv 3.5mm audio connectors 22 DVDs 33 About 1 accessories about 4 included 4 lights and status of 53 additional commands 90 using 23 alarms 59 electrostatic discharge iv application 66 email alerts 61 aspect ratios 17, 27-28, 31-32, 58 emergency alerts 59 audio 73...
  • Page 111 I N D E X image native video formats 27 adjusting 21 network 76 focusing 20 network communication 22, 53, 60 resolving issues with 49 network information 76 important information i information i input selection 24, 59 installation original packaging 54 choosing a height 8 choosing a location 7 securing 9...
  • Page 112 45 service information 85 service menu 53 warnings iii signal loss 49 water and fluid resistance iv SMART Board interactive webpage management 55 whiteboard See interactive WEEE and Battery Directives 95 whiteboard whiteboard See interactive whiteboard SMART UF70 or UF70w projector See projector...
