Matrix User Guide

7.2.2 Disarming the Panel

Present a pre-programmed card or tag to the MX-Prox reader for 1 second (wait until the proximity reader
beeps).
The operation LED will turn off indicating that you are in arm/disarm mode.
Remove the card to disarm the panel.
7 . 3 M u l t i - P a r t i t i o n O p e r a t i o n
The MX PROX has four status LEDs. In multi partition operation these four LEDs display the partition number,
1,2,3 or 4.
Operation

7.3.1 Arming the Panel

Present a pre-programmed card or tag to the MX-Prox reader for a pre-determined time period (each second is
indicated with a beep).
The operation LED will turn off indicating that you are in arm/disarm mode.
Presenting the card for 1 second will select partition 1 (RED LED illuminates).
Presenting the card for 2 seconds will select partition 2 (YELLOW LED illuminates).
Presenting the card for 3 seconds will select partition 3 (GREEN LED illuminates).
Presenting the card for 4 seconds will select partition 4 (ORANGE LED illuminates).
(This cycle will repeat a number of times or until you remove the card from the reader)
Remove the card to start arming the currently selected partition.
The partition will start arming in arm mode A and a high tone counting the exit time will be emitted.
Repeat to arm more partitions.
Page 50

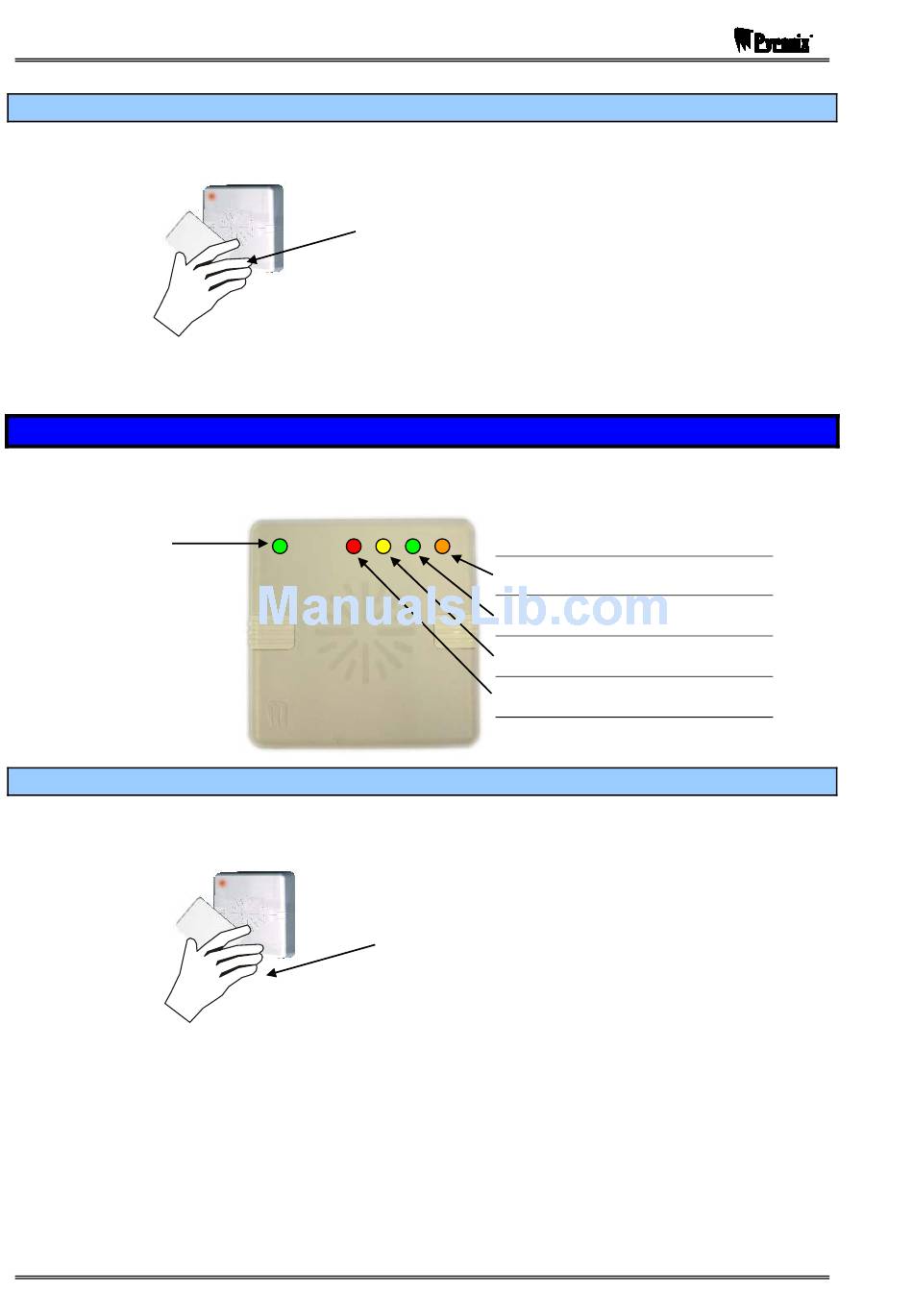

Presenting the card
PROXIMITY READER
Presenting the card
S LED
TATUS
P 4 (O
ARTITION RANGE
P 3 (G
ARTITION REEN
P 2 (Y
ARTITION ELLOW
Partition 1 (Red LED)
S
LED)
LED)
LED)
RINS915-2
