Matrix User Guide

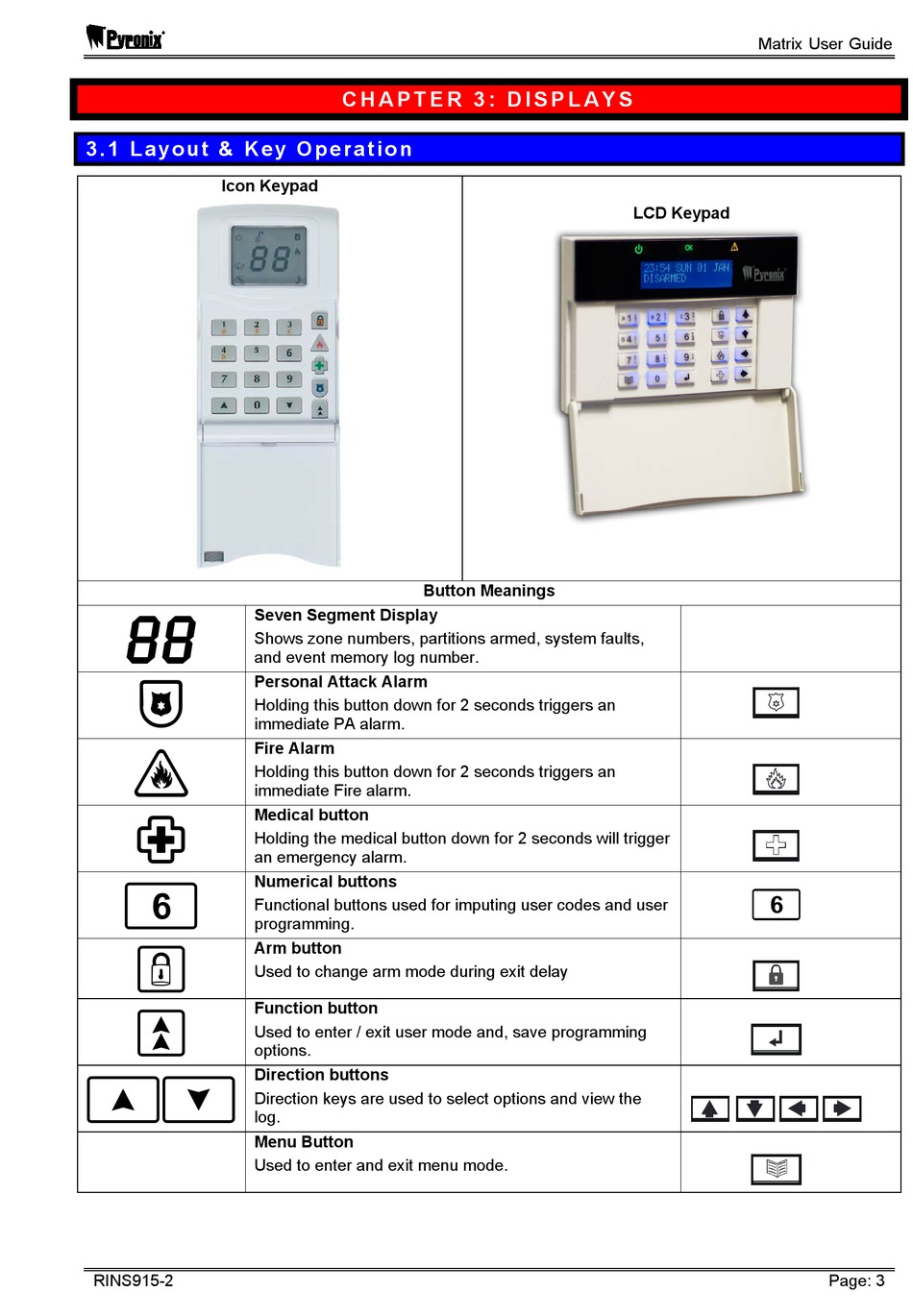

C H A P T E R 3 : D I S P L A Y S
3 . 1 L a y o u t & K e y O p e r a t i o n
Icon Keypad
LCD Keypad
Button Meanings
Seven Segment Display
Shows zone numbers, partitions armed, system faults,
and event memory log number.
Personal Attack Alarm
Holding this button down for 2 seconds triggers an
immediate PA alarm.
Fire Alarm
Holding this button down for 2 seconds triggers an
immediate Fire alarm.
Medical button
Holding the medical button down for 2 seconds will trigger
an emergency alarm.
Numerical buttons
Functional buttons used for imputing user codes and user
programming.
Arm button
Used to change arm mode during exit delay
Function button
Used to enter / exit user mode and, save programming
options.
Direction buttons
Direction keys are used to select options and view the
log.
Menu Button
Used to enter and exit menu mode.
RINS915-2 Page: 3
