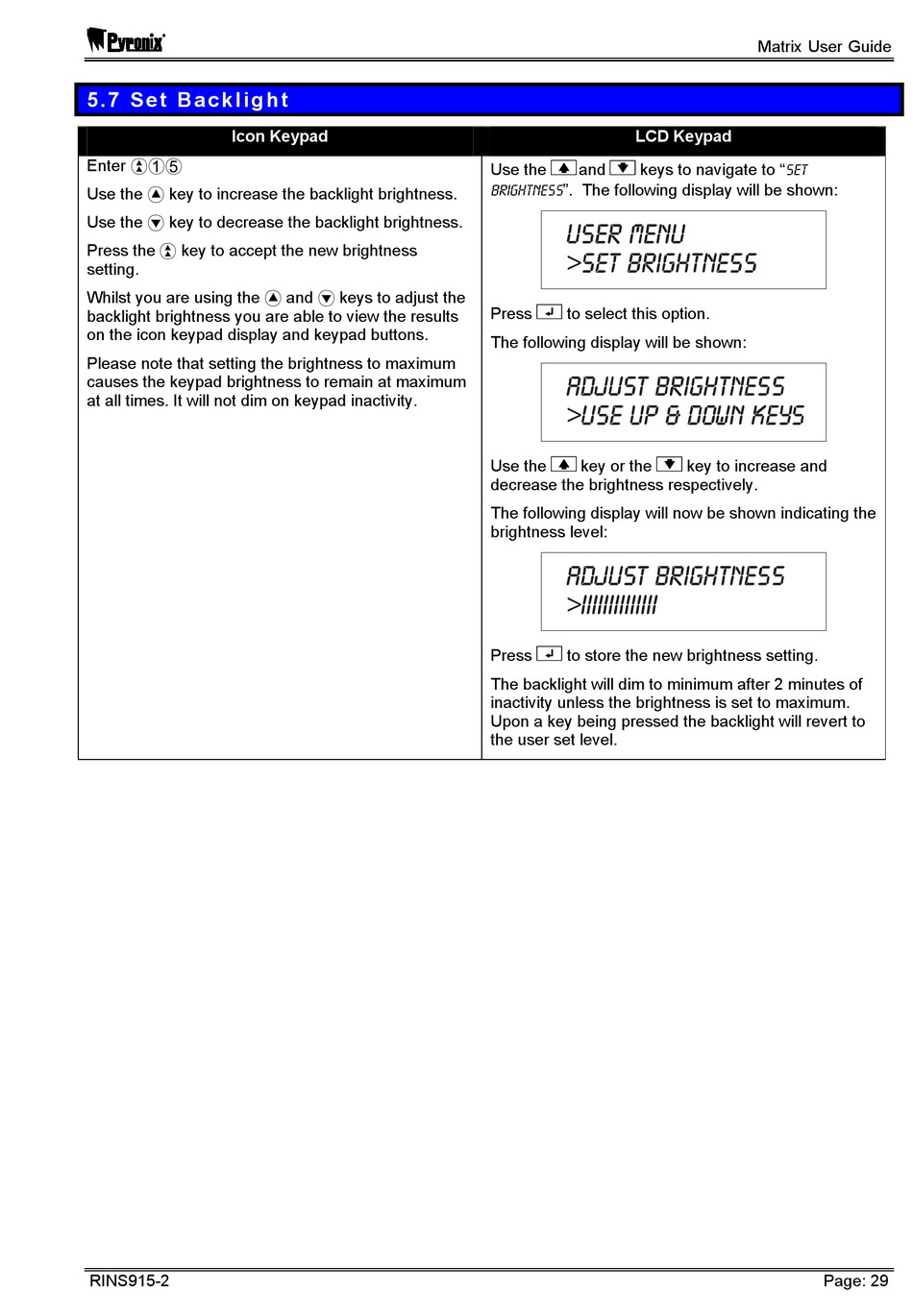

5 . 7 S e t B a c k l i g h t
Icon Keypad
Enter W
Use the > key to increase the backlight brightness.
Use the ? key to decrease the backlight brightness.
Press the key to accept the new brightness
setting.
Whilst you are using the > and ? keys to adjust the
backlight brightness you are able to view the results
on the icon keypad display and keypad buttons.
Please note that setting the brightness to maximum
causes the keypad brightness to remain at maximum
at all times. It will not dim on keypad inactivity.
RINS915-2
LCD Keypad
Use the and keys to navigate to "SET
BRIGHTNESS". The following display will be shown:
Press to select this option.
The following display will be shown:
Use the key or the
decrease the brightness respectively.
The following display will now be shown indicating the
brightness level:
Press to store the new brightness setting.
The backlight will dim to minimum after 2 minutes of
inactivity unless the brightness is set to maximum.
Upon a key being pressed the backlight will revert to
the user set level.
Matrix User Guide
key to increase and
Page: 29
