Matrix User Guide

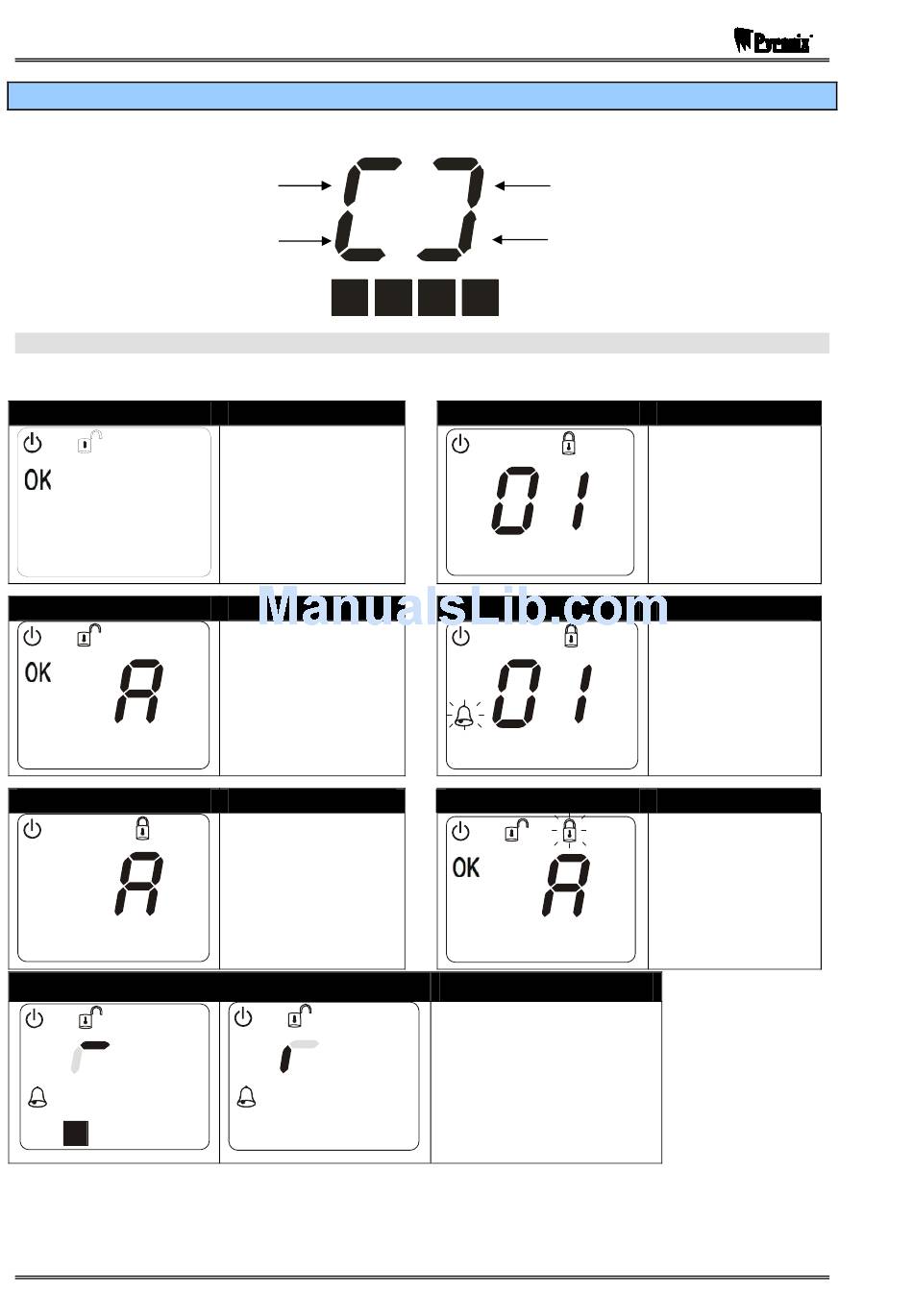

3.9.2 Icon Keypad

As well as the P1 – P4 icons, partition information is shown on the 7-segment displays, as this is easily visible
from a distance. Each of the two corner segments are assigned to a partition as shown below.
Single Partition Indications
The following displays are shown on the Icon keypad when the keypad is used to arm or disarm the panel when
configured as a single-partition system.
Disarmed
Arming
Armed
Anti-Code Reset / Engineer Reset
(( ))
P1
Page 10
Partition 1
Partition 3
P1 P2 P3 P4
The DISARMED and
OK icons are
displayed.
The panel is ready for
arming.
The DISARMED and
OK icons are
displayed.
The panel is arming in
arm mode A
The ARMED icon is
displayed.
The panel has armed
in mode A
(( ))
Partition 2
Partition 4
In Alarm
First To Alarm (FTA)
(( ))
Arming with Omits
Partition 1 segments flash
alternately as shown.
The last open zone
number is displayed.
(Zone 1)
The BELL icon
flashes.
Zone 1 was the First
zone To Alarm (FTA)
The armed icon
flashes indicating
that the panel is
arming with omitted
zones.
RINS915-2
