7 . 1 I N T R O D U C T I O N
The MX-Prox reader is a card reader designed to work with the Matrix 832 / 832+ / 424 alarm panels. By
presenting a card or tag to the proximity reader you are able to arm or disarm the system without using a
keypad.
You will have been supplied either cards (MX-PCARDS), or tags (MX-TAGS), or both, for use with your
proximity reader.
Before the cards or tags can be used, they must be allocated to users. This is achieved though the master user
function Adding Proximity Cards/Tags, detailed on page 42.
7 . 2 S i n g l e P a r t i t i o n O p e r a t i o n

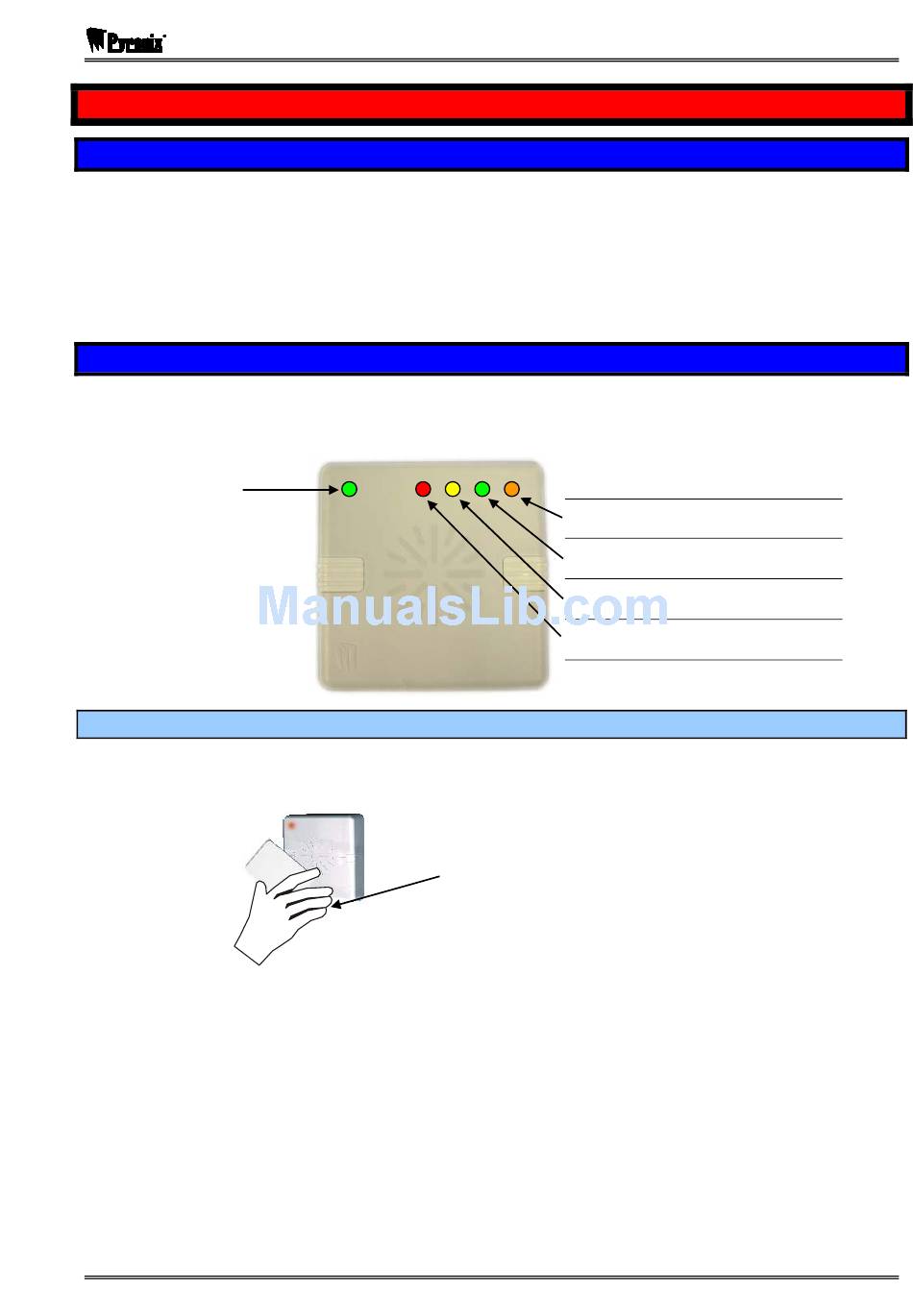

The MX PROX has four status LEDs. In single partition operation these four LEDs display the arm mode, A, B,
C or D.
Operation

7.2.1 Arming the Panel

Present a pre-programmed card or tag to the MX-Prox reader for a pre-determined time period (each second is
indicated with a beep).
The operation LED will turn off indicating that you are in arm/disarm mode.
Presenting the card for 1 second will select arm mode A (RED LED illuminates).
Presenting the card for 2 seconds will select arm mode B (YELLOW LED illuminates).
Presenting the card for 3 seconds will select arm mode C (GREEN LED illuminates).
Presenting the card for 4 seconds will select arm mode D (ORANGE LED illuminates).
(This cycle will repeat a number of times or until you remove the card from the reader)
Remove the card to start the currently selected arm mode.
The panel will start arming in your chosen arm mode and a high tone counting the exit time will be emitted. This
will continue until the panel arms.
RINS915-2
C H A P T E R 7 : P R O X I M I T Y R E A D E R
PROXIMITY READER
Presenting the card
S LED
TATUS
A D (O
RM MODE RANGE
A C (G
RM MODE REEN
A B (Y
RM MODE ELLOW
Arm mode A (Red LED)
Matrix User Guide
S
LED)
LED)
LED)
Page: 49
