Matrix User Guide

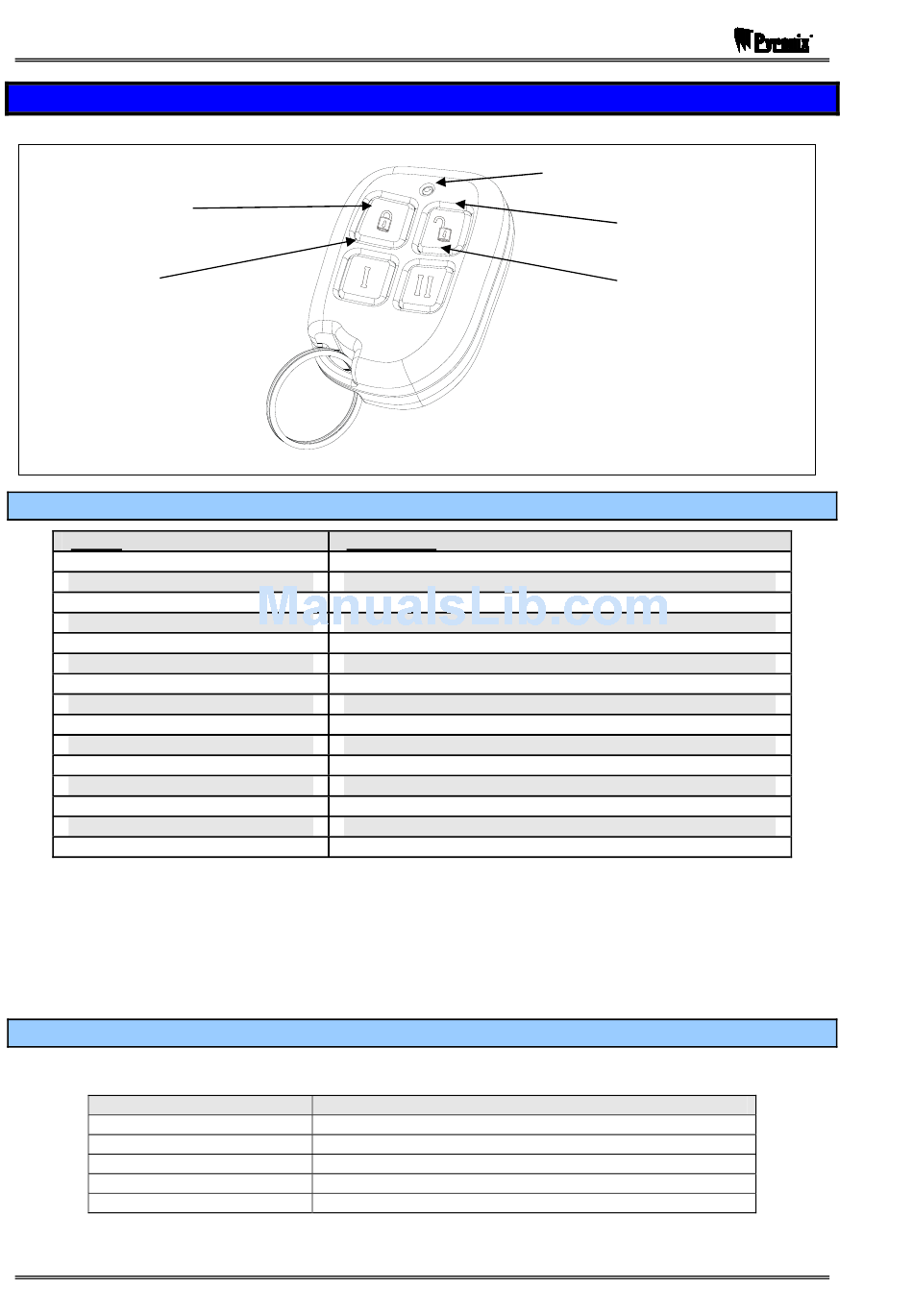

3 . 5 K e y f o b S y m b o l s a n d M e a n i n g s ( K F 4 D W )
LOCK Button
(Button 1)
I Button
(Button 3)

3.5.1 The KF4DW Actions

Action
Arm Mode A
Arm Mode B
Arm Mode C
Arm Mode D
Disarm
RKP Controlled Output
Keyfob Controlled Output
Fire Alarm
Medical Alarm
Personal Attack
Not Used
Quick Arm Mode A
Quick Arm Mode B
Quick Arm Mode C
Quick Arm Mode D
*Note 1: Key fob Controlled is a new programmable output type that can be only be assigned to key fob button
presses.
*Note 2: Quick arm is a new arming method. It does not display open zones whilst arming.
All programmed button actions are on a per partition basis. This means that Partitions 1, 2, 3 & 4 can have
totally different sets of button actions from each other. This also means that key fobs assigned to users will only
be active in one partition (the first partition if assigned to multiple partitions).

3.5.2 STATUS LEDS

The status LED on the key fob shows the status of the panel when any arm or disarm button is pressed. The
indications are shown below:
Panel Status
Disarmed
Arming
Armed
In Alarm
In FTA (First To Alarm)
Page 6
Description
Arm the panel in Arm Mode A
Arm the panel in Arm Mode B
Arm the panel in Arm Mode C
Arm the panel in Arm Mode D
Disarm the panel (if currently armed or in First to Alarm)
RKP controlled output*
Keyfob controlled output*
Creates a Fire Alarm
Creates a Medical Alarm
Creates a Personal Attack
No Action
Quick arm part set A**
Quick arm part set B**
Quick arm part set C**
Quick arm part set D**
LED Indication
Green for 3 seconds
Toggles Green/Red in 3 second bursts until armed
Red for 3 seconds
Flashing Green for 3 seconds
Flashing Green for 3 seconds
Status LED
UNLOCK Button
(Button 2)
II Button
(Button 4)
RINS915-2
