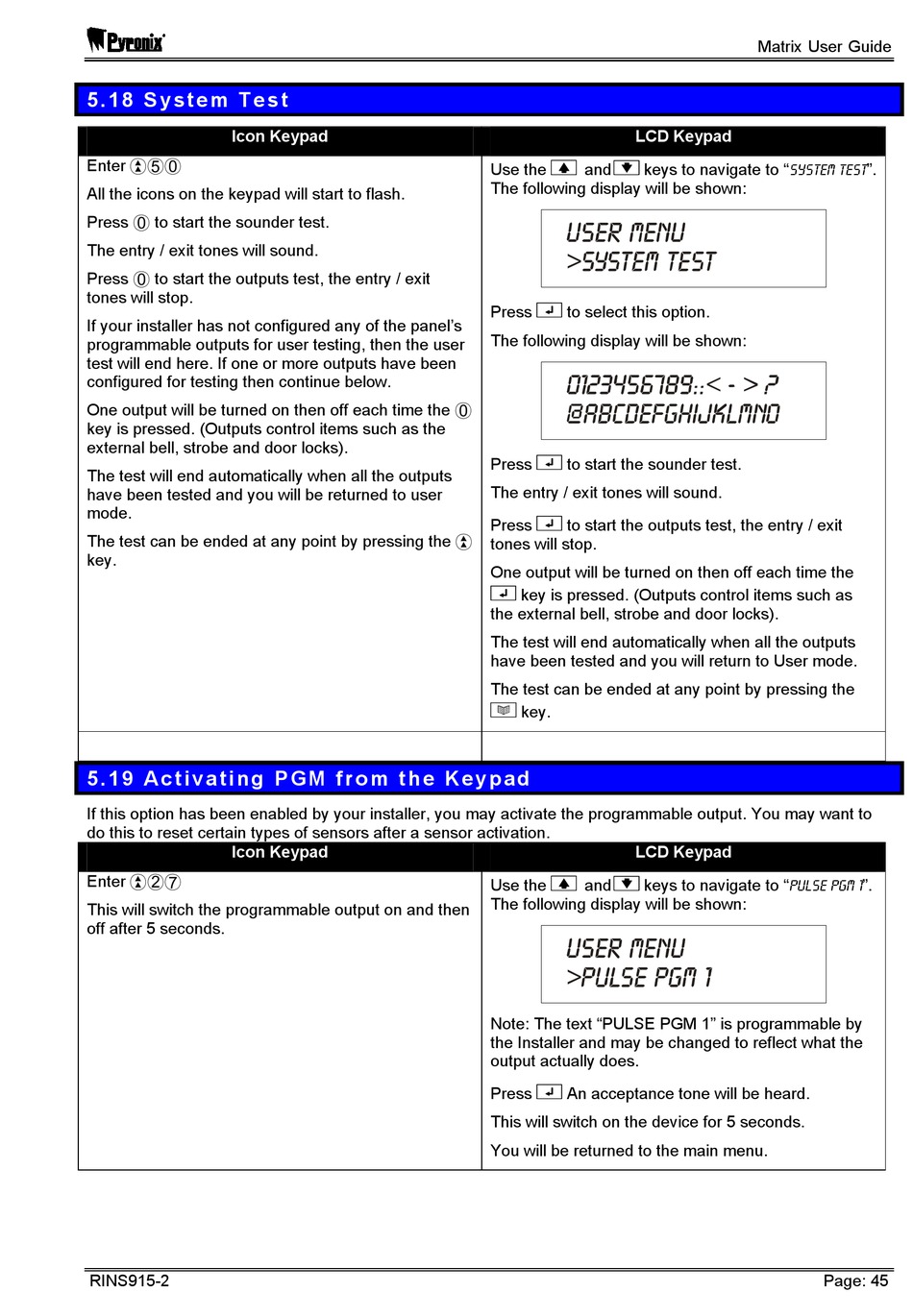

5 . 1 8 S y s t e m T e s t
Icon Keypad
Enter W
All the icons on the keypad will start to flash.
Press to start the sounder test.
The entry / exit tones will sound.
Press to start the outputs test, the entry / exit
tones will stop.
If your installer has not configured any of the panel's
programmable outputs for user testing, then the user
test will end here. If one or more outputs have been
configured for testing then continue below.
One output will be turned on then off each time the
key is pressed. (Outputs control items such as the
external bell, strobe and door locks).
The test will end automatically when all the outputs
have been tested and you will be returned to user
mode.
The test can be ended at any point by pressing the
key.
5 . 1 9 A c t i v a t i n g P G M f r o m t h e K e y p a d
If this option has been enabled by your installer, you may activate the programmable output. You may want to
do this to reset certain types of sensors after a sensor activation.
Icon Keypad
Enter TY
This will switch the programmable output on and then
off after 5 seconds.
RINS915-2
LCD Keypad
keys to navigate to "SYSTEM TEST".
Use the and
The following display will be shown:
Press to select this option.
The following display will be shown:
Press to start the sounder test.
The entry / exit tones will sound.
Press to start the outputs test, the entry / exit
tones will stop.
One output will be turned on then off each time the
key is pressed. (Outputs control items such as
the external bell, strobe and door locks).
The test will end automatically when all the outputs
have been tested and you will return to User mode.
The test can be ended at any point by pressing the
key.
LCD Keypad
keys to navigate to "PULSE PGM 1".
Use the and
The following display will be shown:
Note: The text "PULSE PGM 1" is programmable by
the Installer and may be changed to reflect what the
output actually does.
Press An acceptance tone will be heard.
This will switch on the device for 5 seconds.
You will be returned to the main menu.
