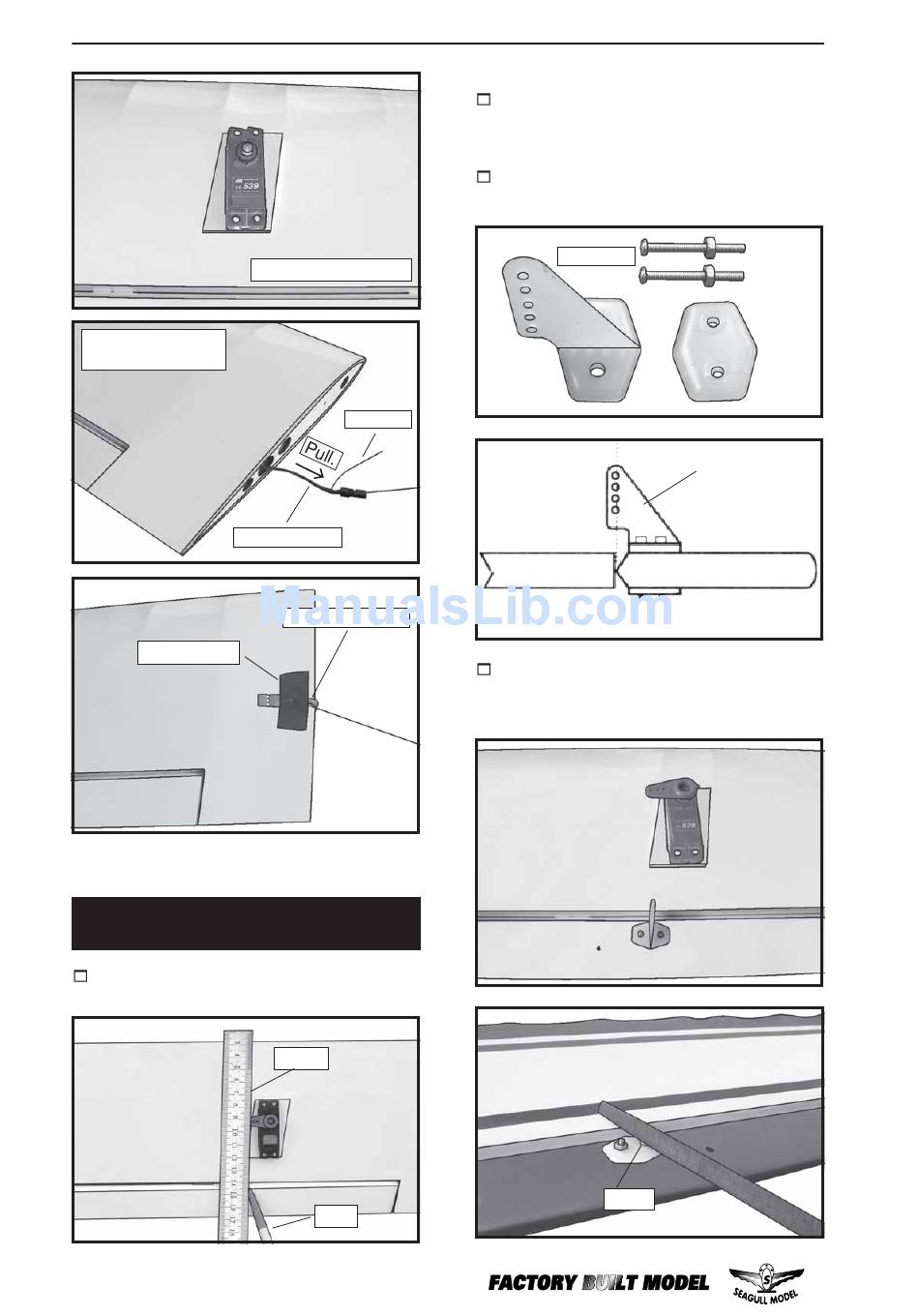

INSTALLING THE AILERON LINKAGE

(LOWER WING).
1) Using a ruler & pen to draw a straight
line as below picture.
6
Lower wing bottom.
Thread.
Aileron electric.
Ruler.
Pen.
Instruction Manual.
2) Locate the nylon control horns,nylon
control horn backplates and two machine
screws.
3) Position the aileron horn on the bottom
side of aileron.
2x20mm.
Wing.
Mounting Screws.
4) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the aileron halves.
Grind.
Control Horn.
Aileron.
Mounting Plate.
