ULTIMATE.

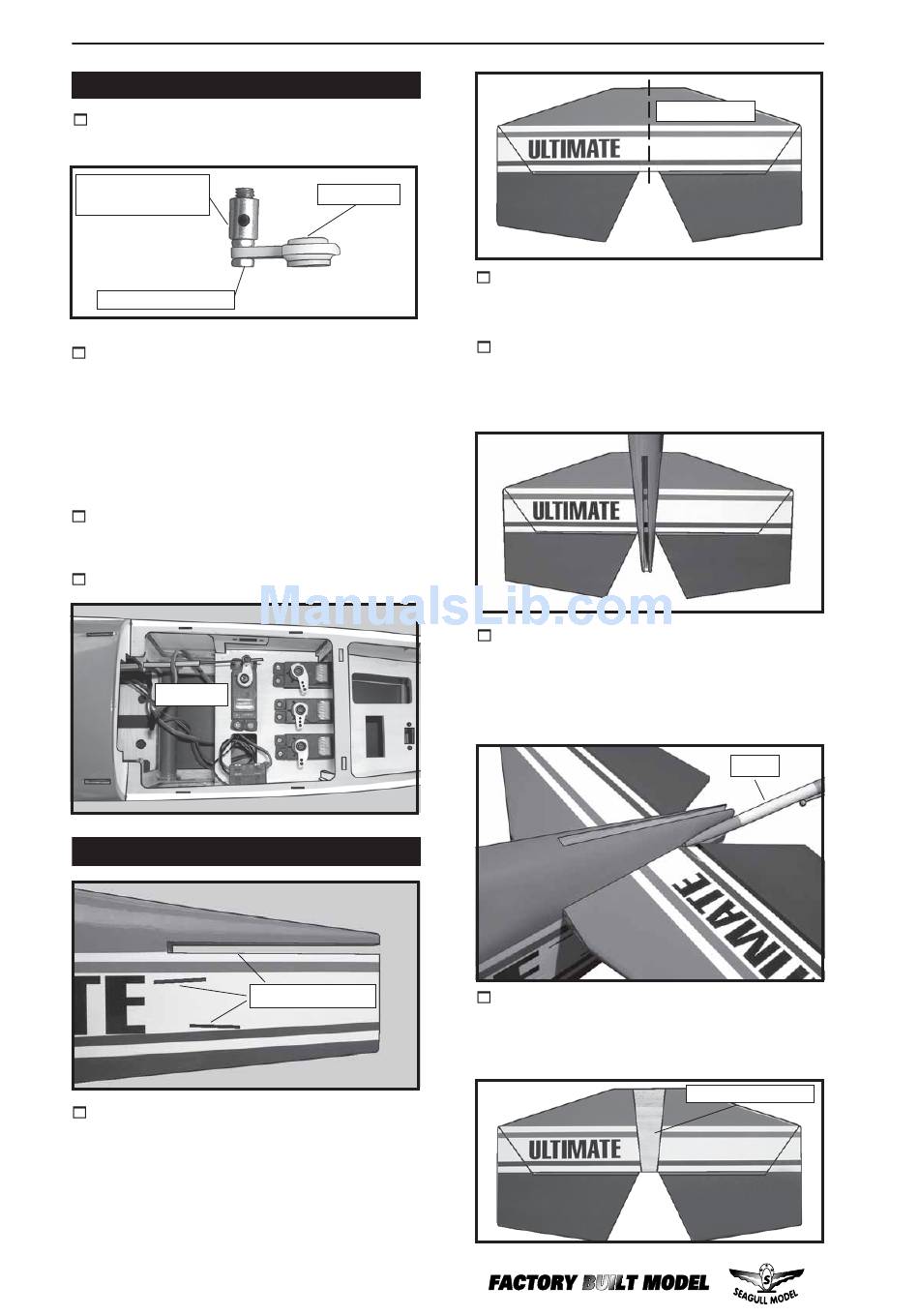

THROTTLE SERVO ARM INSTALLATION.
) Install adjustable servo connector in
1
the servo arm.
Adjustable servo
connector.
Thread locker glue.
2) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the throttle servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
3) Secure the servos with the screws pro-
vided with your radio system.
4) Install the pushrod throttle.
Throttle.

HORIZONTAL STABILIZER.

1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
14
Servo arm.
Remove covering.
Instruction Manual.
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal sta-
bilizer ( both side of fuselage).
3) Slide the stabilizer into place in the pre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a model-
ing knife.
Center line.
Pen.
Remove covering.
