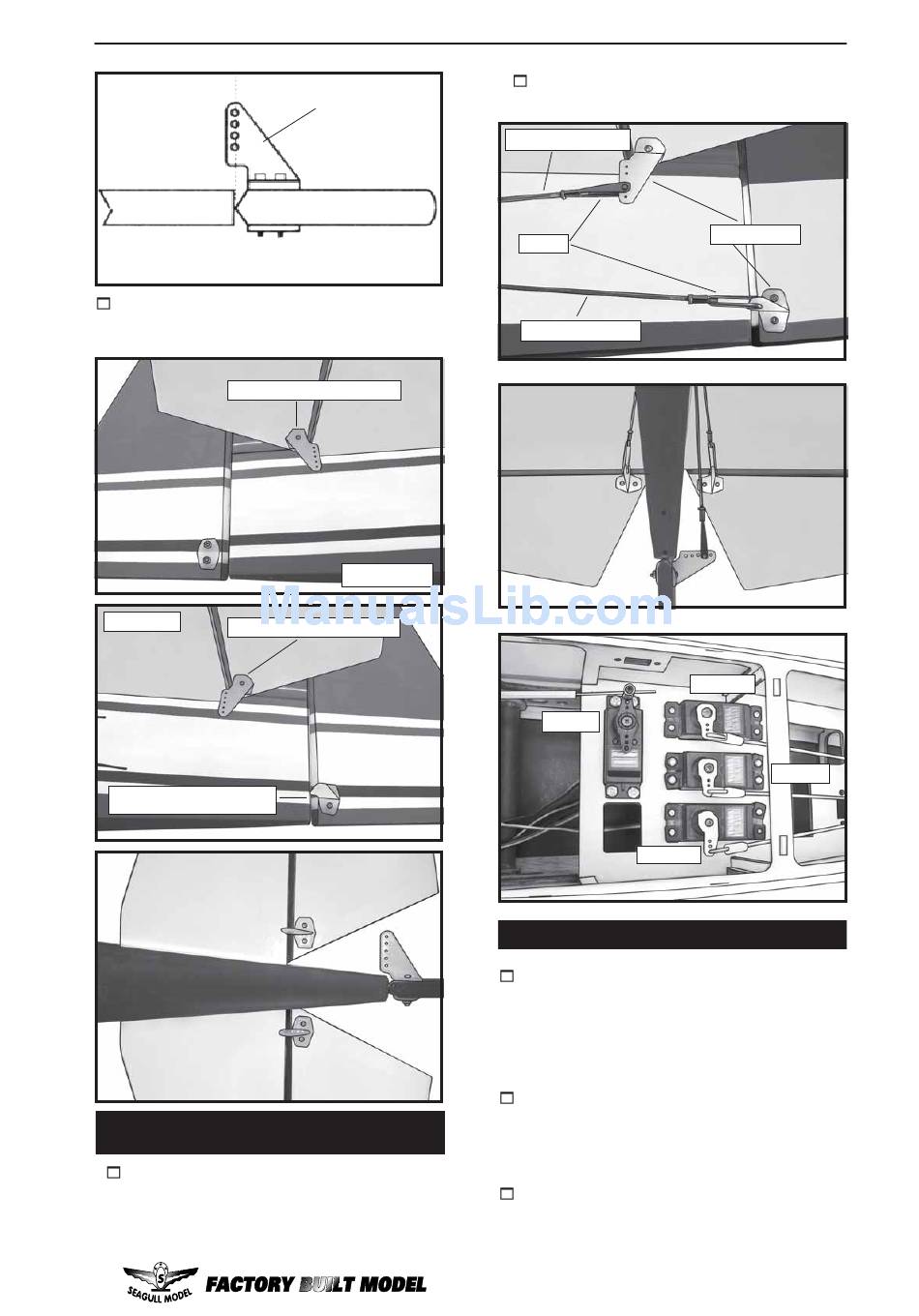

Fin.
Mounting Screws.
4) Install the rudder control horn using the
same method as with the elevator control
horns.
Elevator control horn.
Left side.
Elevator control horn.
Rudder control horn.
ELEVATOR - RUDDER PUSHROD
INSTALLATION.
1) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
www.seagullmodels.com
Control Horn.
Elevator.
Mounting Plate.
Right side.
2) Elevator pushrods assembly follow
pictures below.
Elevator pushrod.
Clevis.
Rudder pushrod.
Throttle.
Elevator.

MOUNTING THE TAIL WHEEL BRACKET.

1) Set the tail wheel assembly in place on
the plywood plate. The pivot point of the tail
wheel wire should be even with the rudder
hinge line and the tail wheel bracket should be
centered on the plywood plate.
2) Using a pen, mark the locations of the
two mounting screws. Remove the tail wheel
bracket and drill 1mm pilot holes at the loca-
tions marked.
3) Secure the tail wheel bracket in place
using two 2x20mm wood screws. Be careful
not to overtighten the screws.
Control horn.
Elevator.
Rudder.
17
