Installing The Aileron Linkage - Seagull Models Laser 200 Assembly Manual

LASER 200
Repeat the procedure for the other wing
half.

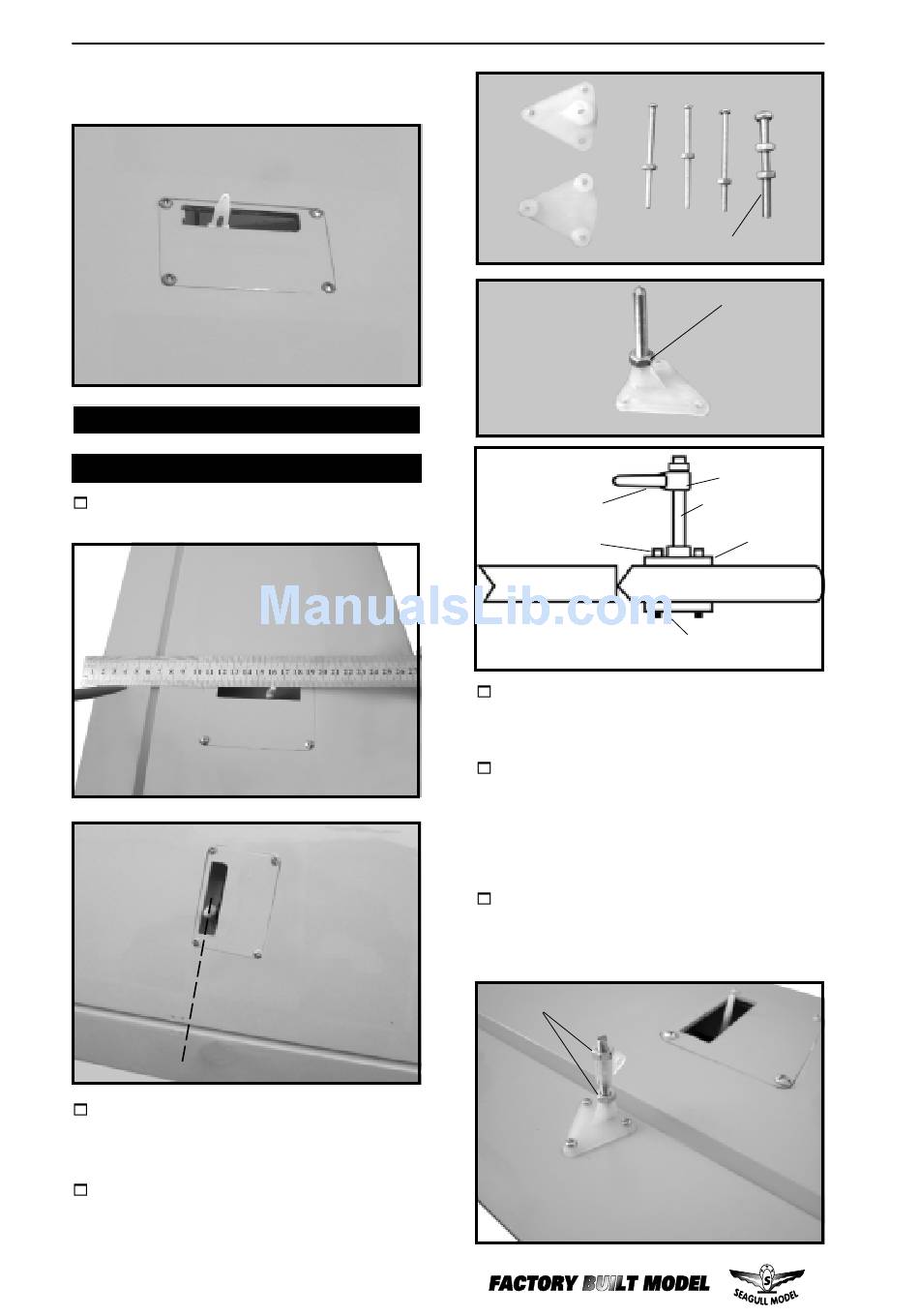

AILERON LINKAGE.

INSTALLING THE AILERON LINKAGE.

1) Using a ruler & pen to draw a straight
line as below picture.
Straight line.
2) Locate the two nylon control horns, two
nylon control horn backplates and six machine
screws.
3) Position the aileron horn on the bottom
side of aileron. The clevis attachment holes
should be positioned over the hinge line.
6
Instruction Manual
2MM x 30mm.
Control Horn.
2MM x 30mm.
4) Using a 1mm drill bit and the control
horns as a guide, drill the mounting holes
through the aileron halves.
5) Mount the control horns by inserting the
screws through the control horn bases and
aileron halves, then into the mounting
backplates. Do Not overtighten the screws or
the backplates may crush the wood.
6) Thread one nylon adjustable control horn
onto each aileron control rod. Thread the
horns on until they are flush with the ends of
the control rods.
M3 lock nut.
3MM x 30mm.
M3 lock nut.
C/A glue attach.
3MM x 30mm.
Mounting Screws.
Mounting Plate.
