Cable routing

An optional cable management bracket kit is available to help with cable
management. This kit consists of six brackets (enough for three chassis) which
attach to the front left and right of the chassis. To use the bracket, it is likely that
the front door of the rack must be removed because the bracket can extend

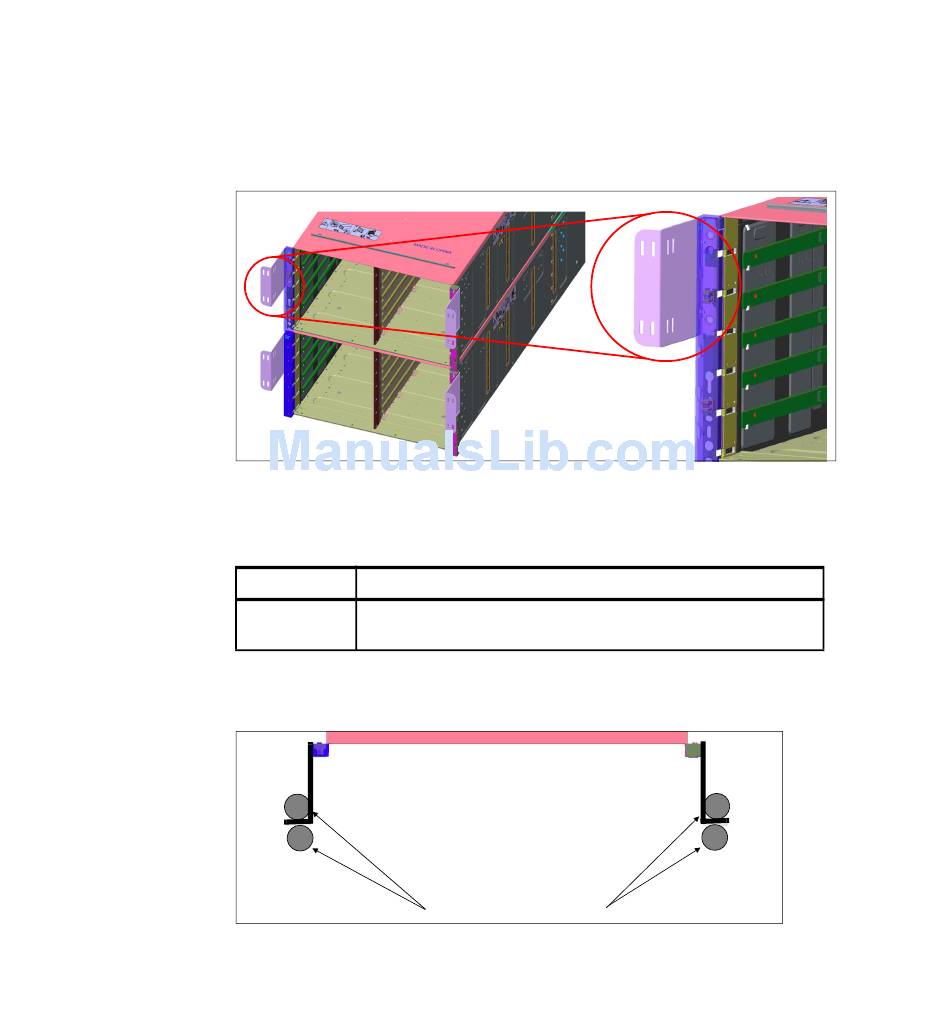

beyond the front of the rack. Figure 5-11 shows the cable bracket.
Figure 5-11 Cable management bracket kit for third-party racks, part 00Y3040
The part number of the Cable Management Bracket kit is listed in Table 5-7.
Table 5-7 Cable Management Bracket Kit part number
Part number
00Y3040
Figure 5-12 shows a top view of the bracket and potential location for cable
bundles.
Figure 5-12 Top view of cable management bracket kit, showing cable bundles
134
IBM NeXtScale System Planning and Implementation Guide
Description
Cable management bracket kit
(contains 6 brackets and 20 hook-and-loop fasteners)
Front of the switch
Potential locations for
cable bundles
Potential Location for Cable Bundles
