Installing the cable-management arm and connecting and routing power cables
The cable-management arm is used to efficiently route cables so that you have proper access to the rear
of the system. After you install the cable-management arm, connect and route power cables.
About this task
Note: If you are installing more than one system now, install the cable-management arm after you install
the other systems into the rack.
Procedure
1. Ensure that you have the following parts.

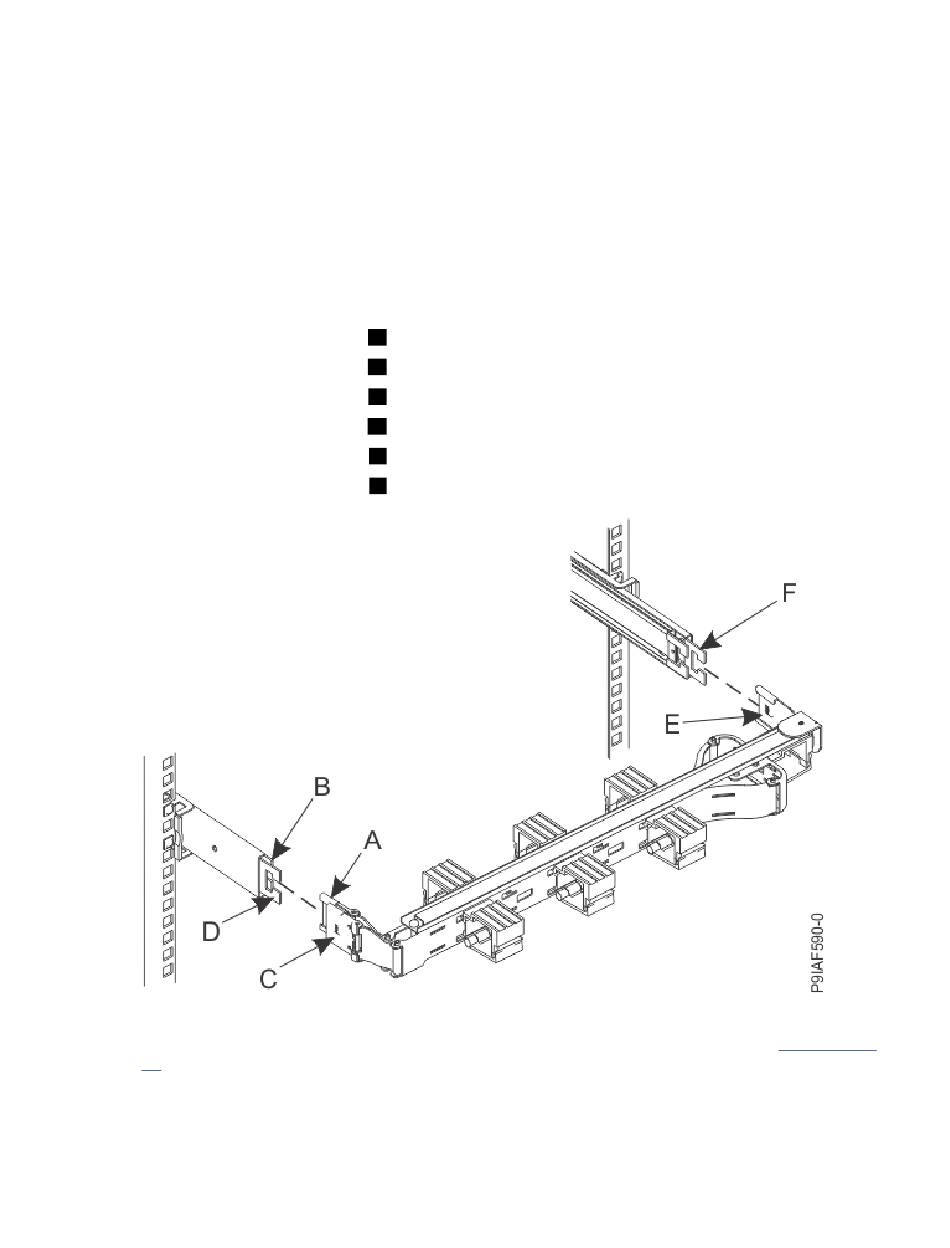

Figure 5. Relative positions of the parts of the cable-management arm before assembly
2. If you are installing the system into a 7014-T42 or 9363-RC4 rack, continue with step "10" on page
10.
3. Insert the inner cable management arm tab (A) to the inner mounting bracket (B) until the outer
mounting bracket (D) clicks into place.
Note: To avoid damage when the system is placed in the service position, ensure that the middle pin
is between each arm.
Item Description
A
Inner cable management arm tab
B
Inner mounting bracket
C
Outer cable management arm tab
D
Outer mounting bracket
E
CMA latch
F
Outer cable management arm tab
Installing and configuring the 9183-22X 7
