Ethernet port link LED
When this LED is lit (green), it indicates that there is an active connection
through the remote management and console (Ethernet) port to the
management network.
Remote management and console (Ethernet) connector
The remote management and console RJ45 connector is the management
network connector for all chassis components. This 10/100 Mbps Ethernet
connector is connected to the management network through a top-of-rack
switch.
Note: The FPC is not a point of failure for the chassis by design. If the FPC
fails, the compute nodes, power supplies, and fans remain functional to keep
the systems running. The power capping policies that are set to the chassis
and compute nodes remain in place. The fan speeds up to maximum speed to
provide maximum cooling protection for the compute nodes until the FPC is
replaced.
3.7.2 Internal USB memory key
The FPC also includes a USB key that is housed inside the unit, as shown in
Figure 3-14.

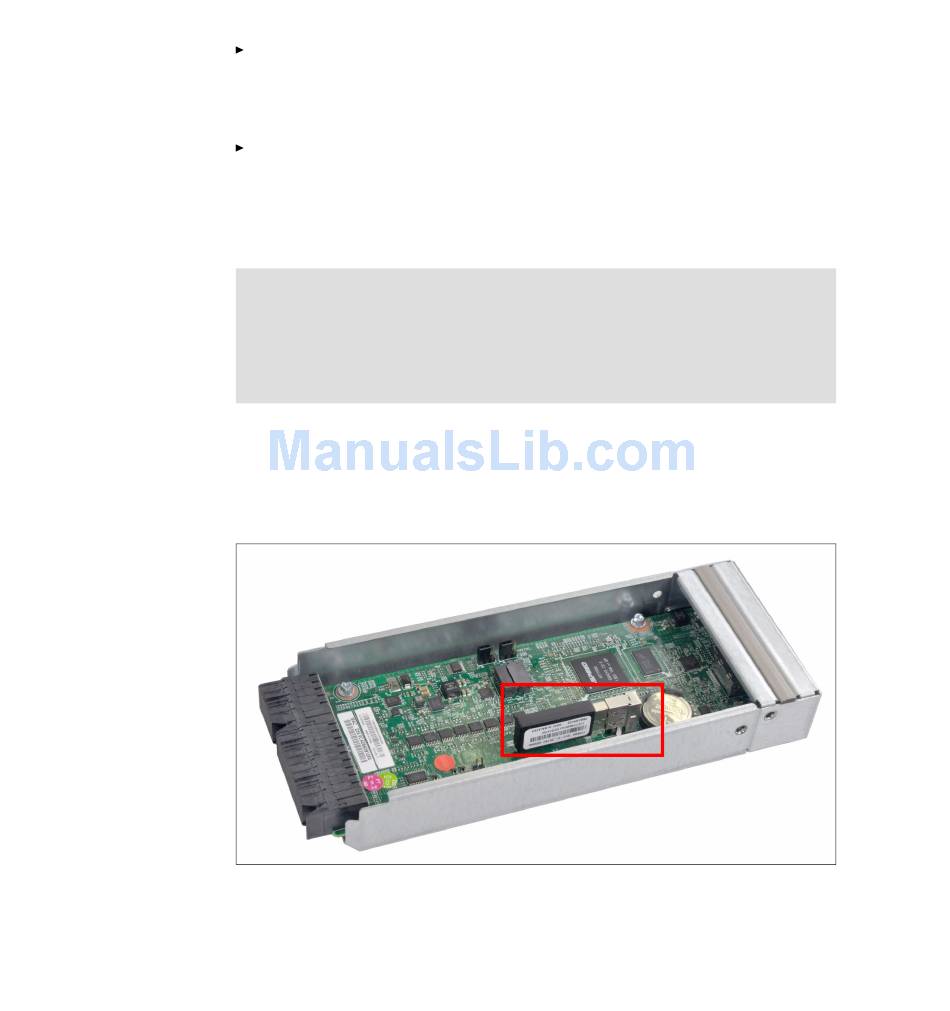

Figure 3-14 Internal view of the FPC
Chapter 3. IBM NeXtScale n1200 Enclosure
49
