1: Introduction

SATA Backplane/Drives

Optional SGI Remote Services (SGI RS)

SGI Remote Services Primary Capabilities

8
As a system, the C2112-4KL1 server supports the use of twelve SATA drives. A single SATA
backplane works to apply system-based control for power and fan speed functions but, at the same
time, logically connects a set of three SATA drives to each serverboard. Consequently, RAID
setup is limited to a three-drive scheme—that is, RAID cannot be spread across all twelve drives.
See section "Installing and Removing Disk Drives" on page 38
configuration.
Drive Bay A2
Drive Bay A1
Drive Bay A0

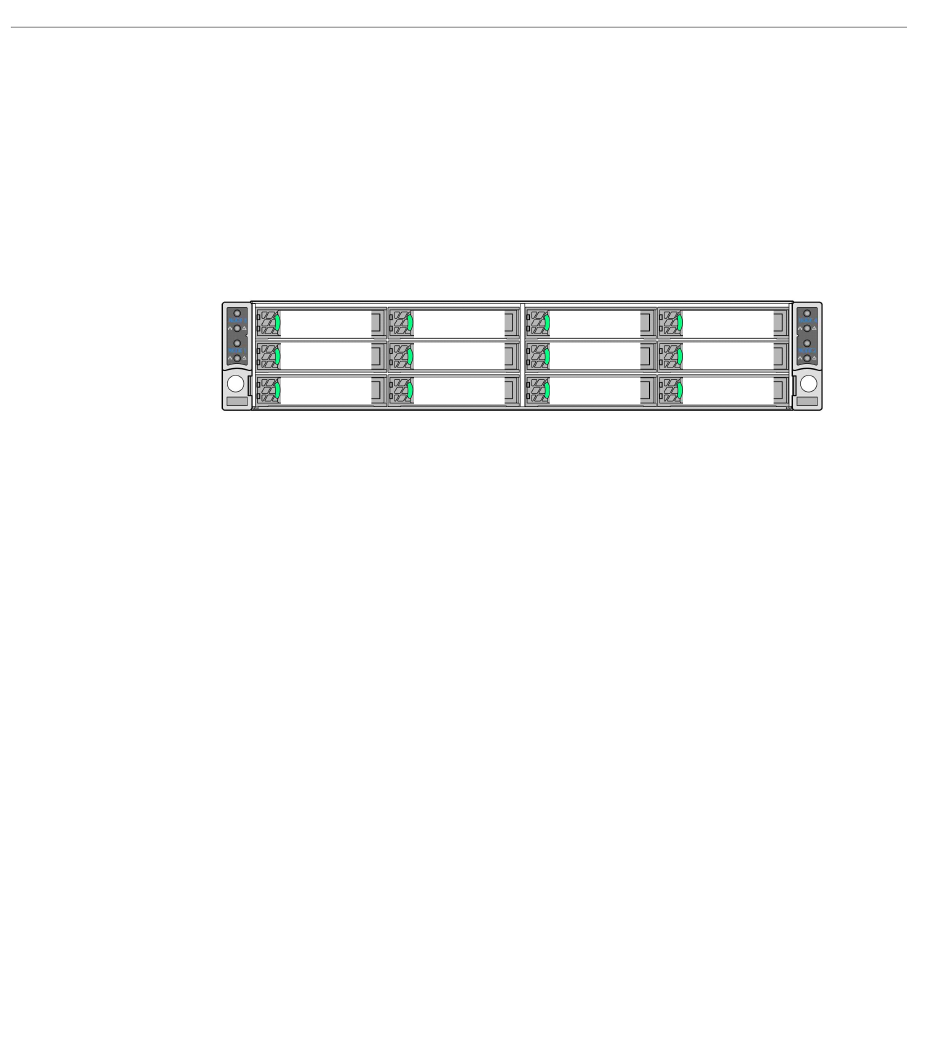

Figure 1-5
Drive and Node Board Physical Assignment
The optional SGI RS system automatically detects system conditions that indicate potential future
problems and then notifies the appropriate personnel. This enables you and SGI global support
teams to pro-actively support systems and resolve issues before they develop into actual failures.
SGI Remote Services provides a secure connection to SGI Customer Support - on demand. This
can ensure business continuance with SGI systems management and optimization.
• 24x7 remote monitoring and data gathering of SGI customer systems
• Alerts and notification on changes, failures and potential failures
• Log files immediately available
• Configuration fingerprint
• Secure file transfer
• Optional secure remote access to customer systems
Drive Bay B2 Drive Bay C2
Drive Bay B1 Drive Bay C1
Drive Bay B0 Drive Bay C0
for the logical hard drive and node
Drive Bay D2
Drive Bay D1
Drive Bay D0
007-6471-001
