~HONDA
~V30MAGNA

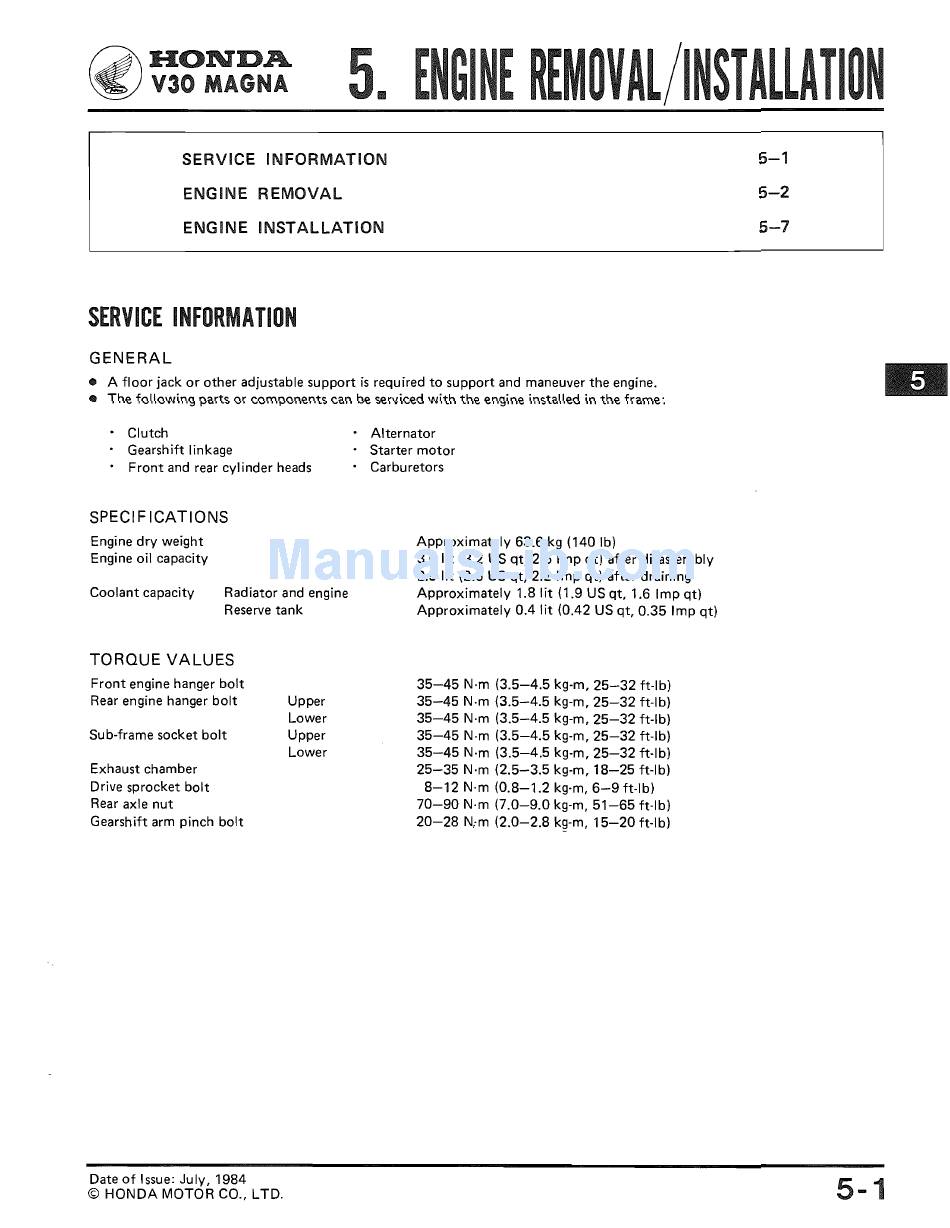

5. ENGINE REMOVAl/INSTAllATION
SERVICE INFORMATION
ENGINE REMOVAL
ENGINE INSTALLATION
SERVICE INFORMATION
GENERAL
• A floor jack or other adjustable support is required to support and maneuver the engine .
• The following parts or components can be serviced with the engine installed in the frame:
• Clutch
Gearshift linkage
Front and rear cylinder heads
SPECI F ICATIONS
Engine dry weight
Engine oil capacity
Coolant capacity Radiator and engine
Reserve tank
TORQUE VALUES
Front engine hanger bolt
Rear engine hanger bolt
Sub-frame socket bolt
Exhaust chamber
Drive sprocket bolt
Rear axle nut
Gearshift arm pinch bolt
Date of Issue: July, 1984
©
HONDA MOTOR CO., LTD.
Upper
Lower
Upper
Lower
Alternator
Starter motor
Carburetors
Approximately
63.6
kg
(140
Ib)
3.0
lit
(3.2
US qt,
2.6
Imp qt) after disassembly
2.5 lit (2.6 US qt, 2.2 Imp qt) after draining
Approximately
1.8
lit
(1.9
US qt,
1.6
Imp qt)
Approximately
0.4
lit
(0.42
US qt,
0.35
Imp qt)
35-45
N·m
(3.5-4.5
kg-m,
25-32
ft·lb)
35-45 N·m (3.5-4.5 kg-m, 25-32 ft-Ib)
35-45
N·m
(3.5-4.5
kg-m,
25-32
ft-Ib)
35-45 N·m (3.5-4.5 kg-m, 25-32 ft-Ib)
35-45 N·m (3.5-4.5 kg-m, 25-32 ft-Ib)
25-35 N·m (2.5-3.5 kg-m, 18-25 ft-Ib)
8-12
N·m
(0.8-1.2
kg·m,
6-9
ft-Ib)
70-90 N·m (7.0-9.0 kg-m, 51-65 ft·lb)
20-28
N,m
(2.0-2.8
k~-m,
15-20
ft-Ib)
5-1
5-2
5-7
5-1
