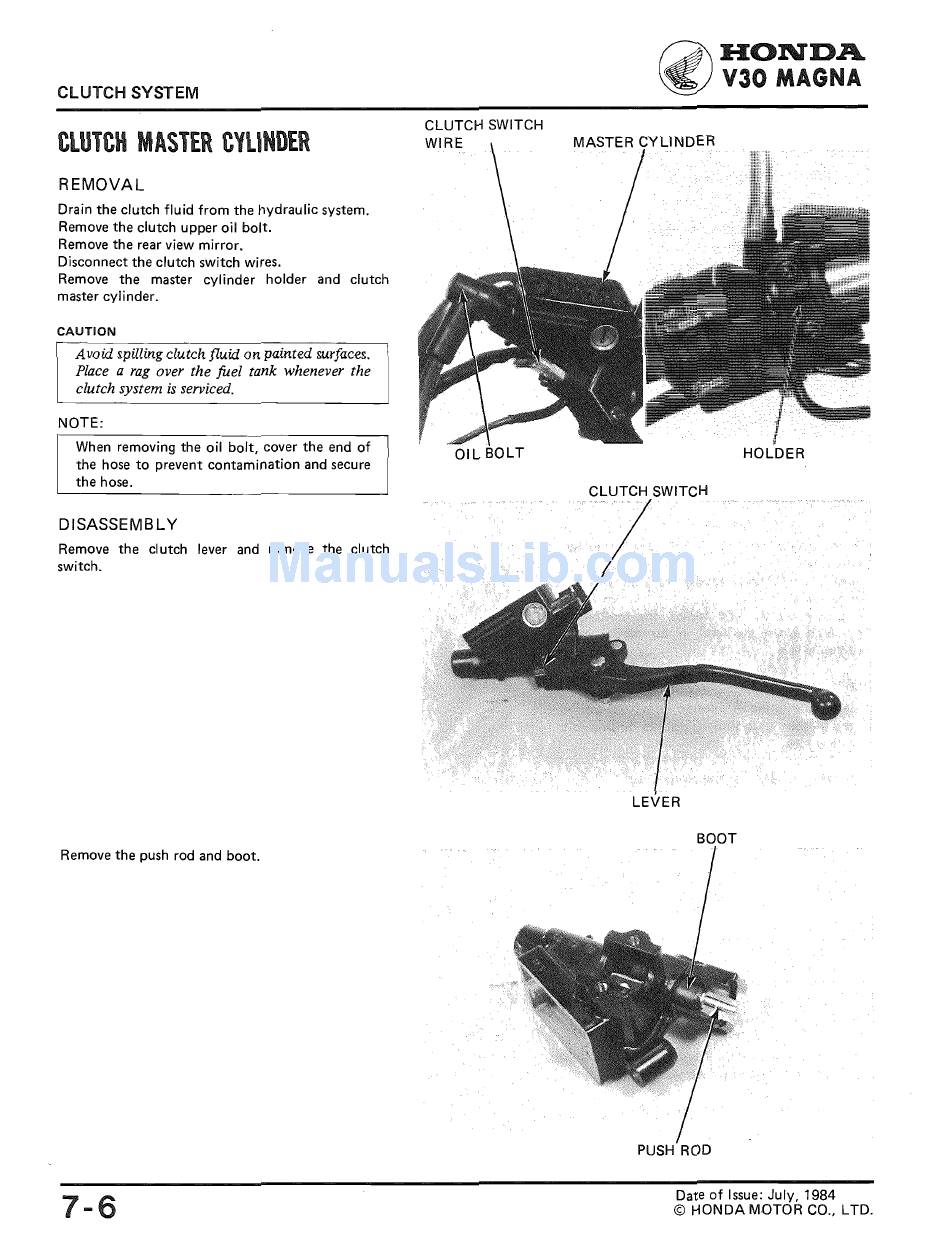

CLUTCH SYSTEM
CLUTCH MASTER CYLINDER
REMOVAL
Drain the clutch fluid from the hydraulic system.
Remove the clutch upper oil bolt.
Remove the rear view mirror.
Disconnect the clutch switch wires.
Remove the master cylinder holder and clutch
master cylinder.
CAUTION
A void spilling clutch fluid on painted surfaces.
Place a rag over the fuel tank whenever the
clutch system is serviced.
NOTE:
When removing the oil bolt, cover the end of
the hose to prevent contamination and secure
the hose.
DISASSEMBLY
Remove the clutch lever and remove the clutch
switch.
Remove the push rod and boot.
7-6
CLUTCH SWITCH
WIRE
~HONDA
~V30MAGNA
CLUTCH SWITCH
LEVER
PUSH ROD
Date of Issue: July, 1984
© HONDA MOTOR CO., LTD.
