MAINTENANCE

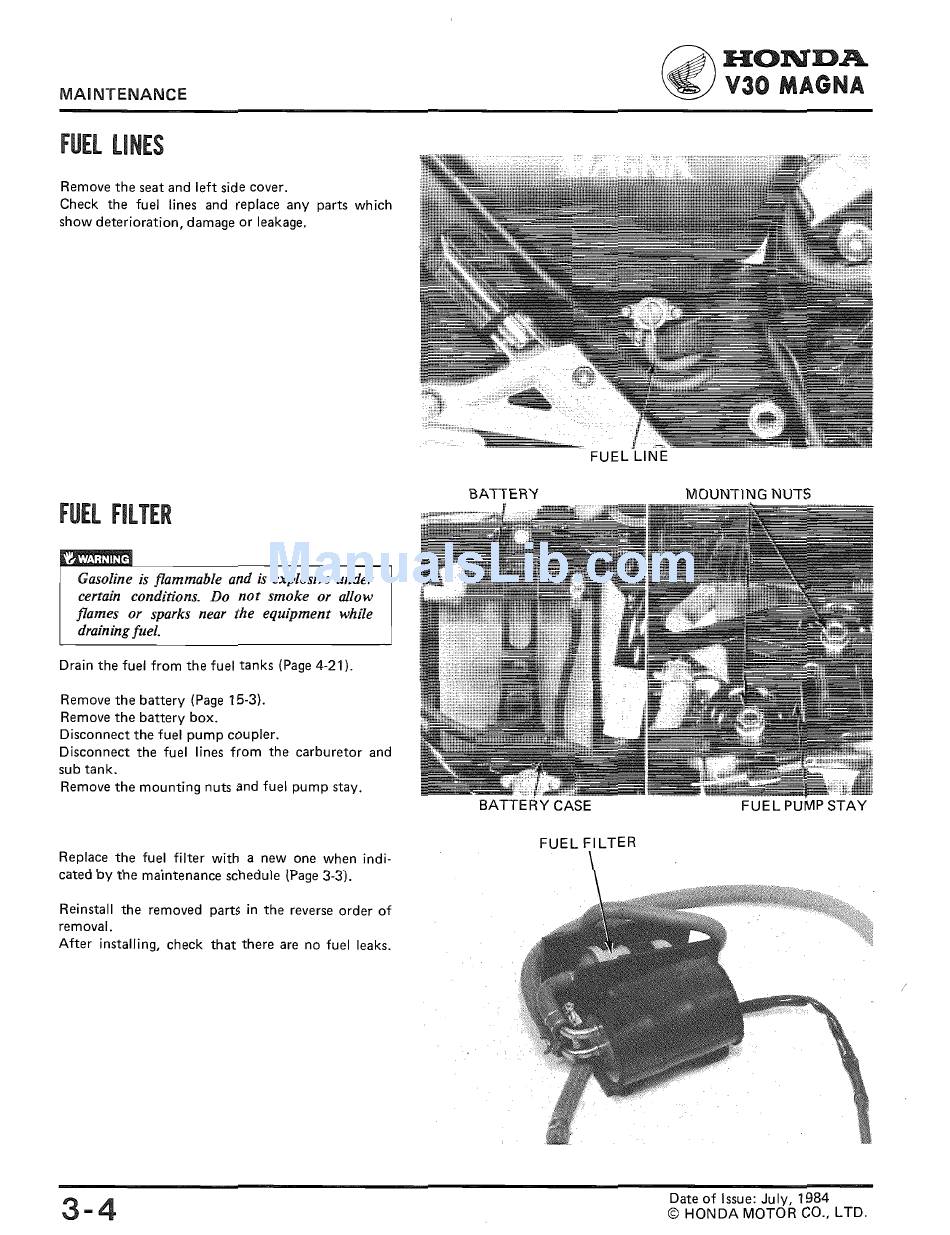

FUEL LINES
Remove the seat and left side cover.
Check the fuel lines and replace any parts which
show deterioration, damage or leakage.
FUEL FILTER
.~
·mr.rcll
Gasoline is flammable and is explosive under
certain conditions. Do not smoke or allow
flames or sparks near the equipment while
draining fuel.
Drain the fuel from the fuel tanks (Page 4-21).
Remove the battery (Page 15-3).
Remove the battery box.
Disconnect the fuel pump coupler.
Disconnect the fuel lines from the carburetor and
sub tank.
Remove the mounting nuts and fuel pump stay.
Replace the fuel filter with a new one when indi-
cated by the maintenance schedule (Page 3-3).
Reinstall the removed parts in the reverse order of
removal.
After installing, check that there are no fuel leaks.
3-4
BATTERY
BATTERY CASE
FUEL FILTER
~HONDA
~V30MAGNA
MOUNTING NUTS
FUEL PUMP STAY
Date of Issue: July, 1984
©
HONDA MOTOR CO., LTD.
