rack Mounting
The DMP 128 is delivered with rack mounting brackets attached. For rack mounting,
do not install the rubber feet. Use the rack ears to mount the DMP 128 in a standard
equipment rack. The DMP 128 can be mounted on a 19 inch Universal 1U or Basic rack
shelf.
To rack mount the DmP 128 on a rack shelf:
1.
If rubber feet are installed on the bottom of the DMP 128, remove them.
2.
Mount the DMP 128 on the rack shelf, using two 4-40 x 3/16 inch screws in opposite
(diagonal) corners to secure the unit to the shelf. In a standard equipment rack, mount
the DMP 128 using the installed rack mounting brackets.

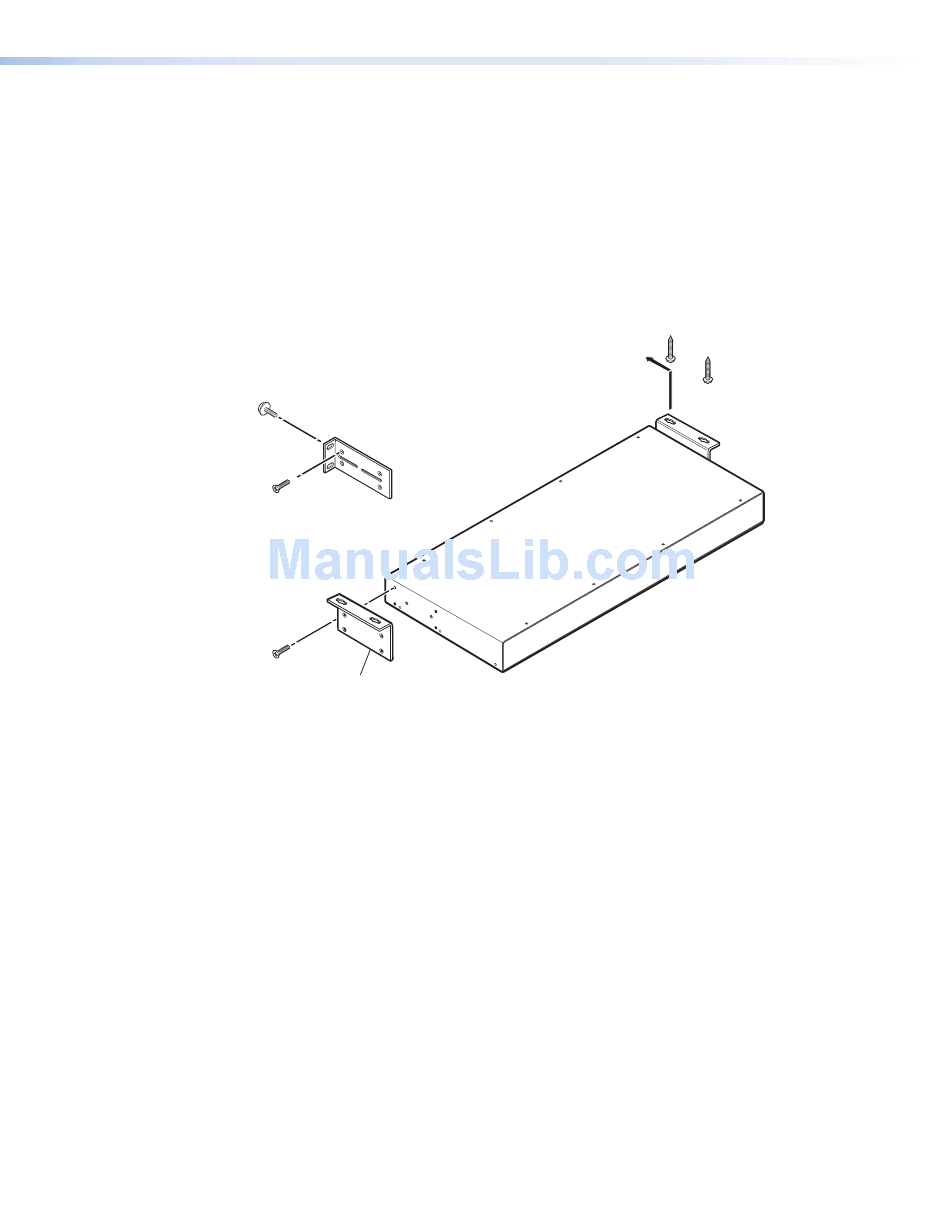

Supplied Rack Mounting Bracket
#8 Screw
(4) Places
Each Side
Figure 94.
3.
Install blank panels or other units on the rack shelf.
or
MBU 149
Mounting Bracket
mounting the DmP 128 on a Universal Rack Shelf
Mounting Screws
(2) Places
Each Side
DMP 128 • Reference Information
166
