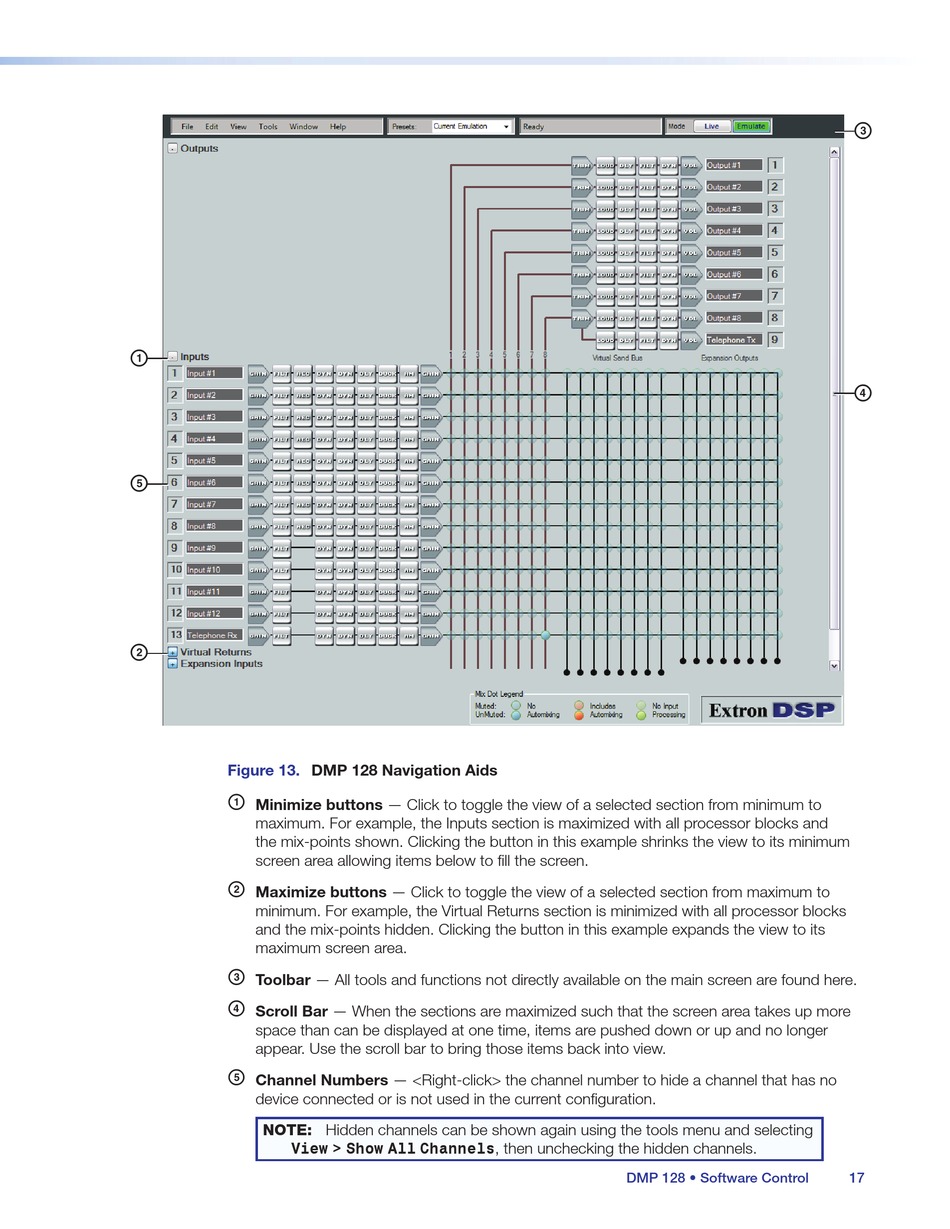

Figure 13.
a
minimize buttons — Click to toggle the view of a selected section from minimum to
maximum. For example, the Inputs section is maximized with all processor blocks and
the mix-points shown. Clicking the button in this example shrinks the view to its minimum
screen area allowing items below to fill the screen.
b
maximize buttons — Click to toggle the view of a selected section from maximum to
minimum. For example, the Virtual Returns section is minimized with all processor blocks
and the mix-points hidden. Clicking the button in this example expands the view to its
maximum screen area.
c
Toolbar — All tools and functions not directly available on the main screen are found here.
d
Scroll Bar — When the sections are maximized such that the screen area takes up more
space than can be displayed at one time, items are pushed down or up and no longer
appear. Use the scroll bar to bring those items back into view.
e
Channel Numbers — <Right-click> the channel number to hide a channel that has no
device connected or is not used in the current configuration.
notE: Hidden channels can be shown again using the tools menu and selecting
View > Show All Channels, then unchecking the hidden channels.
