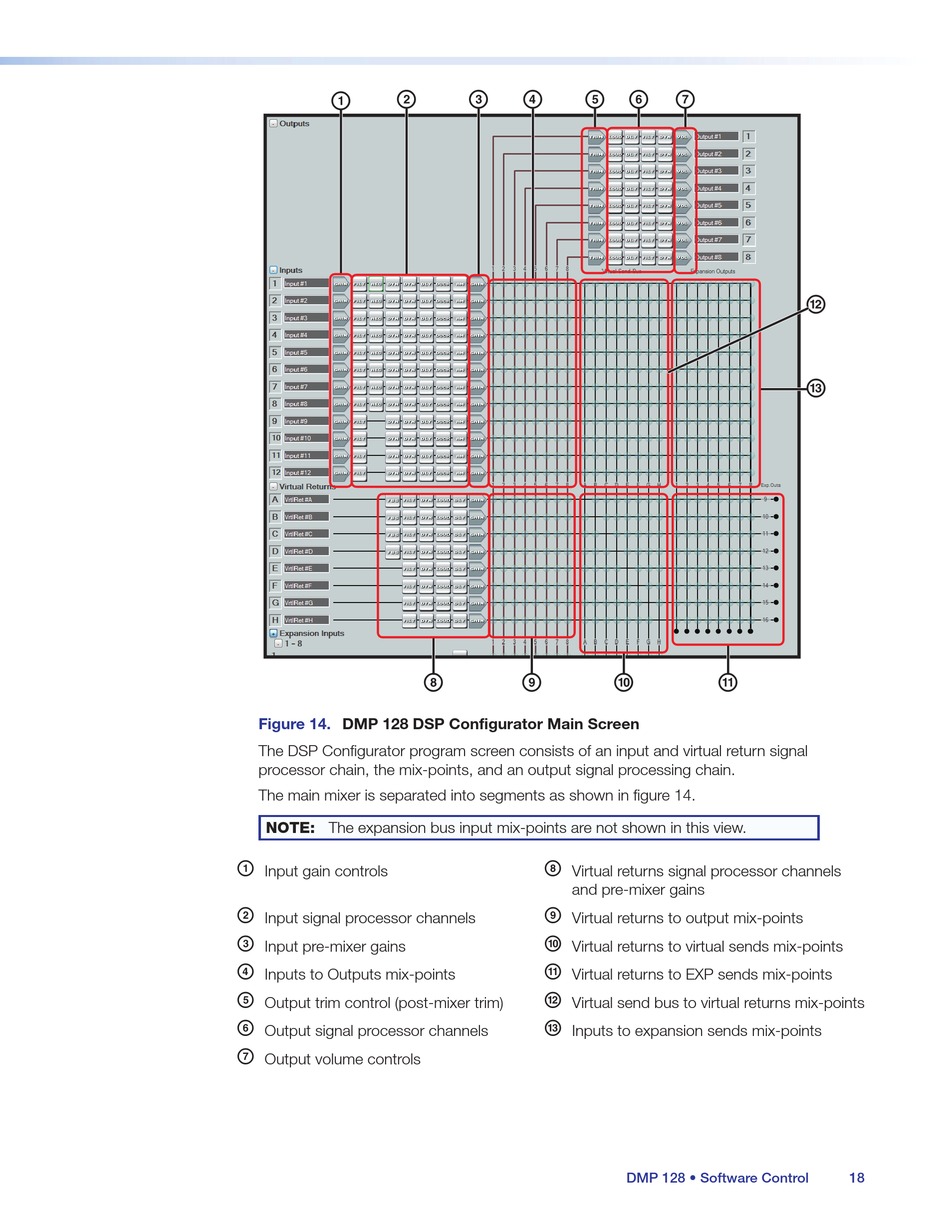

Figure 14. DmP 128 DSP Configurator main Screen
The DSP Configurator program screen consists of an input and virtual return signal
processor chain, the mix-points, and an output signal processing chain.
The main mixer is separated into segments as shown in figure 14.
notE: The expansion bus input mix-points are not shown in this view.
a
Input gain controls
b
Input signal processor channels
c
Input pre-mixer gains
d
Inputs to Outputs mix-points
e
Output trim control (post-mixer trim)
f
Output signal processor channels
g
Output volume controls
c d e
h i
h
Virtual returns signal processor channels
and pre-mixer gains
i
Virtual returns to output mix-points
j
Virtual returns to virtual sends mix-points
k
Virtual returns to EXP sends mix-points
l
Virtual send bus to virtual returns mix-points
m
Inputs to expansion sends mix-points
f g
j k
DMP 128 • Software Control
l
m
