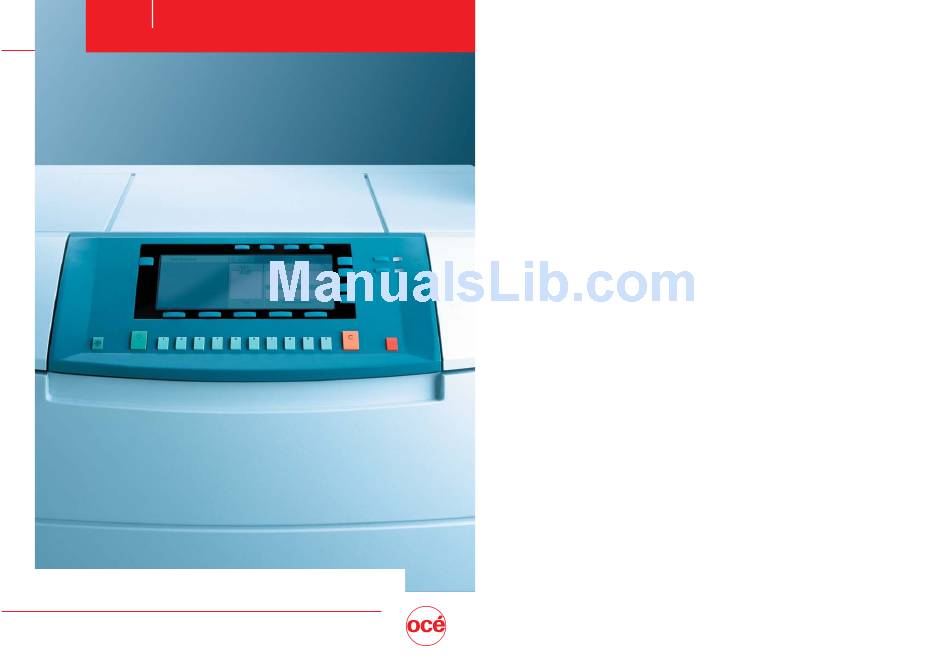

  • Page 1 VarioPrint 2090 Jobmanual...
  • Page 2 VarioPrint 2090 Printer parts Left front door Printer top left cover Output trays Upper output tray Finisher front door Paper trays Front doors Scanner parts Scanner top left cover Automatic document feeder Original receiving tray Cover handle...
  • Page 3 Operator Panel Printer ready to copy or print. douma linp rach Copy Print from mailbox... Set-build key Start key Job queue manager key Function keys Help key System information key Arrow keys Stop key Correction key The numeric keys Function keys...
  • Page 4 Printing for Professionals VP2090 JOB MAN GB *1060002595* 1 Piece Made in : The Netherlands cé- Technologies B.V.
  • Page 5 Océ VarioPrint 2090 Job manual...
  • Page 6 Océ Technologies B.V. Trademarks Products in this manual are referred to by their trade names. In most, if not all cases, these designations are claimed as trademarks or registered trademarks of their respective companies. Copyright © 2003, Océ-Technologies B.V. Venlo, The Netherlands All rights reserved.

  • Page 7: Notes For The Reader

    Notes for the reader Definition This manual helps you to use the Océ VarioPrint 2090 . The manual contains a description of the Océ VarioPrint 2090 and guidelines to use and operate the Océ VarioPrint 2090 . There are also tips to increase your knowledge of the Océ...
  • Page 8 Océ VarioPrint 2090 Job manual...

  • Page 9: Table Of Contents

    About the system 14 Océ VarioPrint 2090 configuration 14 Chapter 2 Get started Power modes on the Océ VarioPrint 2090 22 Turn on the Océ VarioPrint 2090 25 Shut down the Océ VarioPrint 2090 28 Restart the Océ Smart Imager 31...
  • Page 10 The job queue About the job queue 94 Chapter 7 Error handling Handle contradictions 98 Handle errors on the Océ VarioPrint 2090 101 Clear the paper jams 103 Clear the staple jams 106 Appendix A Overview and tables 107 Product specifications 108...

  • Page 11: Introduction

    Océ VarioPrint 2090 User manual Chapter 1 Introduction...

  • Page 12: General Information

    General information Available documentation Documentation set The documentation set for the Océ VarioPrint 2090 consists of the following. [1] Documentation set Document Description Job manual Describes the workflow of print and copy jobs for the operator. Print from the mailbox.
  • Page 13 NERGY ■ Quick reference On this card you find the following instructions. card How to print from the mailbox of the Océ VarioPrint ■ 2090 . How to copy on the Océ VarioPrint 2090 . ■ [1] Documentation set Introduction...

  • Page 14: Océ Varioprint 2090 Concepts And Philosophy

    Océ VarioPrint 2090 concepts and philosophy Introduction The Océ VarioPrint 2090 is a high-volume black and white system. The system is based on the successful Océ 31x5. It has improvements in productivity, in paper input, document finishing and document output.
  • Page 15 ■ You can change 1-sided originals into 2-sided documents. If the originals result in an odd number of pages, the Océ VarioPrint 2090 will detect this. An odd number of pages can result in an empty page between the subsets.
  • Page 16 The paper trays For the Océ VarioPrint 2090 a complete new paper unit is introduced. The following table shows the changes and advantages of this new concept. Feature...
  • Page 17 The finisher The finisher has two general output destinations, there are four output trays and there is one upper output tray. Jobs that only use long edge feed (LEF) paper (A4 or Letter Standard) go ■ into the output trays. Jobs that only use short edge feed (SEF) paper and jobs that need multiple ■...

  • Page 18: About The System

    About the system Océ VarioPrint 2090 configuration Introduction The Océ VarioPrint 2090 can be divided in functional units. Operator panel ■ Printer (includes paper unit and finisher unit) ■ Scanner ■ Océ Smart Imager ■ Océ VarioPrint 2090 Job manual...
  • Page 19 The operator panel [2] The operator panel [2] The operator panel Part Description Set-build key The key to define subsets within the document (page programming). To join different originals, subsets, into one digital document, for example a report or book that contains some of the following items.
  • Page 20 The key to stop the active, current print job. Press one time to stop the job after a complete set. ■ Press two times to stop the job as soon as possible, within a set. ■ Océ VarioPrint 2090 Job manual...
  • Page 21 Part Description Correction key The key to make corrections when you edit a job. Press one time to set the number of prints to 1. ■ Press two times to reset all the job settings to the default values. ■ Press three times to cancel the job or a last subset.
  • Page 22 Refill staplers and handle errors inside the finisher in the areas labelled D and E. Paper trays Refill paper in 4 trays. Front doors Access the areas inside the system labelled A, B and C to handle errors. Océ VarioPrint 2090 Job manual...
  • Page 23 The scanner [4] The scanner [4] The scanner Part Description Scanner top left cover Handle original errors. Automatic document feeder Feed the originals. Original receiving tray Hold the scanned originals. Cover handle Open the scanner cover to copy from the glass plate. Introduction...
  • Page 24 Océ VarioPrint 2090 Job manual...

  • Page 25: Get Started

    Océ VarioPrint 2090 User manual Chapter 2 Get started...

  • Page 26: Power Modes On The Océ Varioprint 2090

    (amber). When the controller initialisation is ready, the message 'Press to switch on the Océ VarioPrint 2090 ' appears. The LEDs on the right-hand side of the operator panel turn off. The LED in the On/Off button becomes amber.
  • Page 27 The system needs a couple of minutes to return to the stand-by mode. The system goes to sleep mode in the following situations. If you do not use the Océ VarioPrint 2090 for a defined time (EPA setting). ■ To change the EPA ( Environmental Protection Agency) setting for the sleep mode delay, change the sleep mode timer (see the Configuration and maintenance manual See Set the EPA timers).
  • Page 28 KOS. See Set the EPA timers The system returns from the low power mode in the following situations. The Océ VarioPrint 2090 must be active to print a document. The system ■ automatically returns to the 'Printer warming up' status (the system will not return to warming up when the job is forced to the mailbox or when the job queue is set to stop in KOS).

  • Page 29: Turn On The Océ Varioprint 2090

    Turn on the Océ VarioPrint 2090 Introduction The system has the following switches and buttons (see the illustration for the correct location). Power switch ■ The power switch cuts and connects the power to the complete system. On/Off button with amber and green LED ■...
  • Page 30 When you turn the system on or off with the power switch, the Océ Smart Imager will also be turned on or off. Océ VarioPrint 2090 Job manual...
  • Page 31 ■ The screen of the operator panel is off/black. ■ Wait a few minutes, then the screen displays the Océ VarioPrint 2090 logo. After the screen displays the message to press the On/Off button , you can follow this instruction.

  • Page 32: Shut Down The Océ Varioprint 2090

    Smart Imager and eventually the complete system. When to do When you shut down the Océ VarioPrint 2090 at the end of the day, the information in the mailbox will remain available after you start up the Océ VarioPrint 2090 again.
  • Page 33 - The LED next to the goes off. Press the power switch How to put the Océ VarioPrint 2090 into sleep mode Press the On/Off button . The system switches to sleep mode. The LED in the button changes from green to amber,...
  • Page 34 Start the Océ VarioPrint 2090 Settings Editor in your web browser in the key operator mode see Access the Océ VarioPrint 2090 Settings Editor. [7] Turn into sleep mode [7] Turn into sleep mode Select 'System' in the title bar of the Océ VarioPrint 2090 Settings Editor.

  • Page 35: Restart The Océ Smart Imager

    1. ■ You can restart the Océ Smart Imager if you use the Océ VarioPrint 2090 Settings Editor. Follow the procedure below to restart the Océ Smart Imager.
  • Page 36 [8] Restart the Océ Smart Imager [8] Restart the Océ Smart Imager How to restart the Océ Smart Imager Select 'System' in the title bar of the Océ VarioPrint 2090 Settings Editor. Select 'Restart Océ Smart Imager'. Click 'OK' to restart the Océ Smart Imager.

  • Page 37: Print Jobs (Mailbox)

    Océ VarioPrint 2090 User manual Chapter 3 Print jobs (mailbox)

  • Page 38: About The Mailbox

    When you print a document from your desktop, there are 2 options. The print job is sent to the mailbox of the Océ VarioPrint 2090 . The print job is sent to the job queue of the Océ VarioPrint 2090 (not available yet in this version).
  • Page 39 The total number of jobs in the mailbox. The number of jobs that you select. [3] Information in the header of the mailbox The mailbox of the Océ VarioPrint 2090 displays the following job information. [4] Presentation of the jobs in the mailbox...
  • Page 40 1-sided or 2-sided Document orientation Document type Document size (variable for copy jobs only) Margin shift Number of prints [5] graphical information [10] graphical feedback in the job editor [10] graphical feedback in the job editor Océ VarioPrint 2090 Job manual...

  • Page 41: Print A Job From The Mailbox

    Print a job from the mailbox Introduction If you send a print job from your desktop to the Océ VarioPrint 2090 , the job goes to the job queue or the mailbox. A job that goes to the job queue is an automatic print job (AP).
  • Page 42 Result A copy of the mailbox job is sent to the job queue of the Océ VarioPrint 2090. The mailbox job gets a check mark . This check mark indicates that the job has been sent to the job queue. The job remains in the mailbox and you can use the job again until you delete the job.

  • Page 43: Edit A Mailbox Job

    Edit a mailbox job Introduction When you start a job from the mailbox, a copy of this mailbox job is sent to the job queue. You can change the settings of that job in the job editor before you send the job to the job queue. Your changes are not applied to the original job that you sent to the mailbox.
  • Page 44 'Print' Indicates if the original is 1-sided or 2-sided. ■ 'Staple' Allows you to set the number of staples, 0, 1 or 2 staples for the ■ print job. Océ VarioPrint 2090 Job manual...
  • Page 45 Press the function key above the display and select the 'Paper' section. [14] Paper section [14] Paper section Press the function key below the operator panel to set the following setting. ■ 'Paper' Allows you to select the paper tray for the print job. ■...
  • Page 46 Result After you have checked and changed the settings on the 4 sections, you can press start to send the modified job to the job queue. Océ VarioPrint 2090 Job manual...

  • Page 47: Stop Printing

    Stop printing Introduction Press the stop key one time if you want to stop a print job at the end of a set. Press the stop key two times to stop within a set (end of page). After you press the stop key , the printing stops and a dialogue is displayed.
  • Page 48 If you stopped printing at the end of a page, the partial set must be removed from the output destination. The Océ VarioPrint 2090 prints the next job in the job queue (if any). 'No' The Océ...

  • Page 49: Remove Jobs From The Mailbox

    Remove jobs from the mailbox When to do The jobs in the mailbox are not automatically deleted after they are started to the queue. If a mailbox job is not needed anymore, you must manually remove the job. Illustration [18] Delete a job from the mailbox [18] Delete a job from the mailbox How to remove jobs from the mailbox Open the mailbox to access your print jobs.

  • Page 50: My Paper In A Print Job

    My Paper in a print job Introduction The Océ VarioPrint 2090 offers a function that allows you to use your personal paper for print jobs. This function is called 'My Paper'. 'My Paper' refers to paper that is not available as standard in the paper trays. If you want to use this paper type, you must load the paper tray when the Océ...
  • Page 51 Select the print option in your application. The print application window appears. Select the required settings in the print application window. Select the name of the printer, for example Océ VarioPrint 2090 . Select 'Properties' to access the settings in the printer driver. Click the 'Job' tab.
  • Page 52 [20] My Paper message dialogue How to print a job on My Paper Open your personal mailbox on the operator panel of the Océ VarioPrint 2090 . Select the print job and check the settings if necessary. Set the number of prints with the numeric keys.

  • Page 53: Print Jobs With Special Paper

    Print jobs with special paper Introduction Special paper can be any kind of paper that you choose to use in a print job. Before you begin Create a print job on your desktop. Indicate on the 'Job tab' of the printer driver that you want to use special paper.
  • Page 54 [22] Special paper dialogue How to print a job on special paper Open your personal mailbox on the operator panel of the Océ VarioPrint 2090 . Select the print job and check the settings if necessary. Press the start key A message appears, that asks you to indicate the paper tray that contains the special paper.

  • Page 55: Secure Print Jobs

    Logic. The PIN code has a length of 1-5 digits. After you send the print job to the Océ VarioPrint 2090 , you can not change the PIN code of the print job. The secure print job goes to the mailbox on the Océ VarioPrint 2090 . You can open the job editor to modify the job settings.
  • Page 56 If you edit a secure print job and then enter the wrong PIN code, the job Note: is not started. The job editor view with the changed settings stays open. The display does not return to the mailbox view. Océ VarioPrint 2090 Job manual...

  • Page 57: Print To The Océ Varioprint 2090

    Océ VarioPrint 2090 User manual Chapter 4 Print to the Océ VarioPrint 2090...

  • Page 58: About The Printer Driver

    Functions of the Océ VarioPrint 2090 printer driver If you want to print a document to the Océ VarioPrint 2090 you first access the print window of the application. If you click on 'Properties' the print window of the Océ...
  • Page 59 The 'Job' tab is an Océ specific tab that allows you to define the following settings. 'Copies' ■ 'Print method' ■ 'Security' ■ '1-sided or 2-sided' ■ 'Staple' ■ 'Media type' ■ 'Page program' ■ Print to the Océ VarioPrint 2090...
  • Page 60 [24] the page tab The 'Page' tab is an Océ specific tab that allows you to define the following settings. 'Paper size' ■ 'Scale' ■ 'Watermark' ■ 'Image' ■ 'Binding edge' ■ 'Show settings before printing' ■ Océ VarioPrint 2090 Job manual...
  • Page 61 The settings for Image/quality [25] The image/quality tab [25] The image/quality tab The 'Image/quality' tab is an Océ specific tab that allows you to define the following setting. 'Halftone' ■ Print to the Océ VarioPrint 2090...

  • Page 62: Create A Print Job With The Printer Driver

    If you want to print a document from your desktop application, you can define the print settings before you send the job to the Océ VarioPrint 2090 . The settings that you define are set in the printer driver dialog box.
  • Page 63 VarioPrint 2090 . Result The print job arrives in your personal mailbox on the Océ VarioPrint 2090 . Access the print job on the operator panel to check the settings you made in the printer driver or start the print job. (see ‘Print a job from the mailbox’ on page 37) Print to the Océ...

  • Page 64: Create A Secure Print Job With The Printer Driver

    1-5 digits. After you send the print job to the Océ VarioPrint 2090 , you can not change the PIN code of the print job. The secure print job goes to the mailbox on the Océ VarioPrint 2090 . Enter the correct PIN code to print this job.
  • Page 65 Click 'OK' after you have set all the settings. The printer driver window closes. Click 'OK' to close the print window of the application. Result The print job is sent to the mailbox on the Océ VarioPrint 2090 (see ‘Secure print jobs’ on page 51). Print to the Océ VarioPrint 2090...

  • Page 66: About The Page Programmer

    A page program can contain a maximum of 100 subsets. If you define Note: more than 100 subsets, the boxes for the page range will be disabled and you can not add subsets. Océ VarioPrint 2090 Job manual...
  • Page 67 ■ needs to put into the paper tray when the user starts a print job with 'My paper' on the Océ VarioPrint 2090 . The maximum number of preferred media types is 3. You can define and select the preferred media types in the 'Media type definition' window.
  • Page 68 Covers are not programmed in the 'Page programmer 'window. You can Note: define the use of covers on the 'Job' tab in the 'Page program' box in the lower part of the window. Océ VarioPrint 2090 Job manual...

  • Page 69: About Océ Intra Logic

    That means efficient reproduction, handling and distribution of digital documents. But also - with convenient scan to email and other scan to office applications - the ability to do all the same tasks with hard-copy documents. Print to the Océ VarioPrint 2090...
  • Page 70 Océ Intra Logic is part of Océ's wide range of solutions, focused on maximising the availability of documents and information. Comprising hardware, software and supporting services, the Océ range offers users highly flexible and modular solutions to their document needs. Océ VarioPrint 2090 Job manual...

  • Page 71: Océ Intra Logic Functions

    Next to the items listed above, you can use Océ Intra Logic to change job settings for jobs on the Océ VarioPrint 2090 . In the figure below you see an example of job settings in Océ Intra Logic.
  • Page 72 The following table gives an overview of the job settings you can change in Océ Intra Logic. In the table you see a Yes when a setting is applicable. You see a No when the setting does not influence the Océ VarioPrint 2090 . [8] Océ Intra Logic job settings Setting label Change in mailbox via Océ...

  • Page 73: Copy Jobs

    Océ VarioPrint 2090 User manual Chapter 5 Copy jobs...

  • Page 74: Basic Copies

    Make a copy Introduction The Océ VarioPrint 2090 is a network printer/copier. The print jobs are digital originals that you send from the desktop to the mailbox. The copy jobs are analogue originals that you scan and print on the Océ VarioPrint 2090 .
  • Page 75 Illustration [33] Make a copy [33] Make a copy How to make a copy Put the originals face down and in readable form into the automatic document feeder or on the glass plate. Adjust the original guides. Press the function key 'Copy'. Describe the originals in the sections 'Basic', 'Layout' and 'Extra'.

  • Page 76: Types Of Copy Job Settings

    Staple indication, 0, 1 or 2 staples 1-sided or 2-sided Document orientation Document type Document size (variable for copy jobs only) Margin shift Subset number (for copy jobs only) Number of copies [9] Graphical information Océ VarioPrint 2090 Job manual...
  • Page 77 [34] Graphical feedback [34] Graphical feedback Settings on the Basic section [10] The settings on the Basic section Settings Description 'Original' This setting describes if the originals must be scanned 1-sided or 2-sided 'Copy' This setting describes if the copies must be 1-sided or 2-sided 'Staple' This setting allows you to set the number of staples.
  • Page 78 This setting allows you to indicate the paper tray. The setting also describes the paper in the paper tray and the orientation of the paper in the paper tray. [11] The settings on the Paper section [36] Paper section [36] Paper section Océ VarioPrint 2090 Job manual...
  • Page 79 Settings on the Layout section [12] The settings on the Layout section Settings Description 'Original This setting allows you to indicate how the information is document displayed on the original. A figure of the left-hand side on the type' operator panel presents the display of the information. There are 4 options (use the scroll buttons to access the 2 topmost options, the values Portrait, book or Landscape, book are displayed as standard.).
  • Page 80 When you increase the margin shift, the information on the sheet is shifted away from the binding edge of the copy. [13] The settings on the Extra section [38] Extra section [38] Extra section Océ VarioPrint 2090 Job manual...

  • Page 81: Correct The Settings For A Copy Job

    Correct the settings for a copy job Introduction You can define or change the settings of a copy job until you press the start key or the set-build key . When you create a copy job, you open the job editor.

  • Page 82: Copy Special Originals And Originals Of A Non-Standard Size

    To copy an original of a certain (non-standard) size and orientation to a different size, use the manual zoom setting to adjust the zoom factor. Use the following information as a reference for standard conversions. [14] Zoom factors Original Print Zoom factor in % [14] Zoom factors Océ VarioPrint 2090 Job manual...
  • Page 83 Before you begin Open the cover of the scan station. Put the original face down, in horizontal or vertical orientation on the glass plate (in readable form). Put the original in the upper left corner on the glass plate. Note: When you use the glass plate, you must use the set-build key to make Note:...
  • Page 84 [42] Extra settings [42] Extra settings This setting is greyed out if you use the automatic document feeder. Note: Press the start key to send the copy job to the job queue. Océ VarioPrint 2090 Job manual...

  • Page 85: Stapled Copies

    Stapled copies Introduction The finisher of the Océ VarioPrint 2090 has two staplers to staple sets. The finisher can also have an optional off-line stapler. You can staple as follows. 1 staple in portrait direction ■ 2 staples ■ 1 staple in landscape direction.
  • Page 86 Set the number of staples. Select 0, 1 or 2 staples in the 'Basic' section. Set the required settings in the other 3 sections ('Paper', 'Layout' and 'Extra') (see ‘Types of copy job settings’ on page 72). Enter the number of copies. Press the start key Océ VarioPrint 2090 Job manual...
  • Page 87 How to staple a landscape oriented document Follow the steps 1-3 from the previous paragraph. You can use only 1 staple for a landscape oriented document. Note: Select the 'Layout' section. Set the 'Original document type' setting to landscape. Set the 'Copy document type' setting to landscape. This setting allows you to describe the orientation and binding edge of the copy.

  • Page 88: Extended Copies

    Combine subsets into one document Introduction The Océ VarioPrint 2090 allows you to create your documents and make a report, a manual or a brochure. Combined (built) documents can include different parts like a title page, the table of contents, the various chapters and the appendices.
  • Page 89 The automatic document feeder Use the automatic document feeder to copy a set of originals. You can put a maximum of 50 originals into the automatic document feeder. This number refers to originals of 80 g/m , size A4. The originals must have the same size. ■...
  • Page 90 After the last subset you must define the staple settings for the whole document. Set the number of copies with the numeric keys. Press the start key to send the job to the job queue. Océ VarioPrint 2090 Job manual...

  • Page 91: Concatenation And Chapterization

    For example a report or book. You can change 1-sided originals into 2-sided documents. If the originals result in an odd number of pages the Océ VarioPrint 2090 detects this. An odd number of pages can result in an empty page between the subsets.
  • Page 92 Put the second subset into the automatic document feeder or put the first sheet on the glass plate. Repeat teh steps 2 and 3 of the previous paragraph. Press the set-build key to scan the subset. Océ VarioPrint 2090 Job manual...
  • Page 93 Result After you press the set-build key, a message appears. An empty page is detected. The last page of the first subset is printed on the front of a sheet. The rear of the sheet is empty. You can select to start the subset on a new sheet or not. [48] Start subset on a new sheet [48] Start subset on a new sheet [15] Concatenation and chapterization settings...

  • Page 94: Delete Subsets

    Every time you press the correction key, you remove one subset. You can delete as many subsets as needed, starting with the last subset. Illustration [49] Delete a subset [49] Delete a subset Océ VarioPrint 2090 Job manual...
  • Page 95 How to delete subsets Press the correction key . See the table below for the correction key behaviour. [16] Correction key behaviour If you press the correction Then key... One time The number of copies is reset to one. If the number of copies was already one, Note: the system resets the job settings to the default value with just one press of the correction key.

  • Page 96: Stop Scanning

    Stop scanning Introduction When you make a copy, the Océ VarioPrint 2090 starts by scanning the documents that are in the automatic document feeder or on the glass plate. You can stop the scanning with the correction key on the operator panel. If you...

  • Page 97: The Job Queue

    Océ VarioPrint 2090 User manual Chapter 6 The job queue...

  • Page 98: About The Job Queue

    The job queue and the job queueu manager allow you to manage the print jobs and the copy jobs. The Océ VarioPrint 2090 handles multiple tasks which makes the machine a highly productive system.
  • Page 99 [17] Job queue information Information displayed in Description the job queue Status icon The icon indicates wheter the job isprinting or scanning. The icon can also indicate if there is a problem, for example, the stapler runs empty (e.g. runtime contradiction, start contradiction). Number of originals The number of sheets of the original document is indicated.
  • Page 100 You cannot use this function to delete a job Note: that is currently being printed. Move to top This function is available in a future release. The function allows you to give priority to a job. [19] Job queue manager functions Océ VarioPrint 2090 Job manual...

  • Page 101: Error Handling

    Océ VarioPrint 2090 User manual Chapter 7 Error handling...

  • Page 102: Handle Contradictions

    Handle contradictions Introduction Three types of contradictions can occur on the Océ VarioPrint 2090 . Specification contradictions ■ Specification contradictions refer to combinations of settings that are not possible. For example, you want to make a 2-sided scan from the glass plate (not possible, change the original setting from 2-sided to 1-sided).
  • Page 103 Illustration [53] Specification contradiction [53] Specification contradiction [54] Start contradiction [54] Start contradiction [55] Run-time contradiction [55] Run-time contradiction Error handling...
  • Page 104 The screen displays a contradiction message. Add the needed resources. The job starts if there are no more contradictions. How to correct a run-time contradiction Add the required supplies. The job starts if there are no more contradictions. Océ VarioPrint 2090 Job manual...

  • Page 105: Handle Errors On The Océ Varioprint 2090

    Handle errors on the Océ VarioPrint 2090 Introduction If an error occurs, the Océ VarioPrint 2090 stops to process. There are three types of errors that can occur on the Océ VarioPrint 2090 . ORE (operator recoverable error) ■ You must resolve the error locations before scanning or printing can continue.
  • Page 106 The screen on the operator panel displays a message. You are asked to wait for more instructions. The Océ VarioPrint 2090 stops to feed sheets from the input tray of the automatic document feeder when a scan error occurs. If possible, the prints in the paper path are flushed. Error sheets go into the upper output tray.

  • Page 107: Clear The Paper Jams

    The graphics on the screen indicate in which part of the Océ VarioPrint 2090 the paper stopped. The operator panel guides you through a sequence of steps to correct the problem.
  • Page 108 Note: closed. Paper path The operator must open the front doors of the Océ VarioPrint 2090 to access the areas marked with the labels A1 and B1-3. The paper path cover A1 is difficult to reach. A Note: small lamp switches on when an error is detected. The lamp improves the visibility of area A.
  • Page 109 Location Description Finisher There are 3 global areas in the finisher that the operator must check for paper jams. The operator must open the top covers left of the ■ finisher and below the output trays of the finisher for paper jams.

  • Page 110: Clear The Staple Jams

    Add the staples to correct a staple jam. Remove any loose staples. Make sure that the staples do not fall into the Océ VarioPrint 2090 . Keep the stapler cartridge which caused the problems. Give the stapler cartridge to the Océ service technician.

  • Page 111: Overview And Tables

    Océ VarioPrint 2090 User manual Appendix A Overview and tables...

  • Page 112: Product Specifications

    Product specifications Introduction This table describes the main features of the Océ VarioPrint 2090 . Part Specification Process Paper Logic, for reliable productivity through contstant feed of materials from the paper trays Image Logic, for high copy quality Bin Logic, for intelligent use of flexible output...

  • Page 113: Originals That Can Be Used

    Originals that can be used Introduction The table below describes the main requirements for the originals that are suitable for the Océ VarioPrint 2090 . Originals Specifications Original sizes Glass plate max. 297 x 432 mm Automatic min. 127 x 203 mm document max.

  • Page 114: Materials That Can Be Used

    Materials that can be used Introduction The Océ VarioPrint 2090 has 4 paper trays that you can refill during a print job. The paper trays have auto-size detection and you can reload the paper one tray at a time. The paper trays open to the front side. All 4 trays can handle a variety of copy materials.
  • Page 115 The information in the table below refers to all 4 paper trays. [23] Requirements for the copy materials Excellent Good Do not use materials: materials materials: Océ brand paper Océ Green or Grey Paper with extreme ■ ■ ■ Plain paper of Label properties (e.g.
  • Page 116 Océ VarioPrint 2090 Job manual...

  • Page 117: Appendix B Miscellaneous

    Océ VarioPrint 2090 User manual Appendix B Miscellaneous...

  • Page 118: Reader's Comment Sheet

    Are you satisfied with this manual? O Yes O No Thank you for evaluating this manual. If you have other comments or concerns, please explain or suggest improvements overleaf or on a separate sheet. 1060002595 Océ VarioPrint 2090 Job manual...
  • Page 119 Country: Please return this sheet to: Océ-Technologies B.V. For the attention of ITC User Documentation. P.O. Box 101, 5900 MA Venlo The Netherlands Send your comments by E-mail to: itc-userdoc@oce.nl For the addresses of local Océ organisations see: http://www.oce.com Miscellaneous...

  • Page 120: Addresses Of Local Océ Organisations

    Chaoyang District 1495 Algés Beijing 100028 Portugal China Océ-Ceská republika s.r.o. Océ (Far East) Pte. Ltd./ Hanusova 18 Océ (Singapore) Pte. Ltd., 14021 Praha 4 #03-00 Wisma Gulab Pankrác, 190 MacPherson Road Czech Republic Singapore 348548 Océ VarioPrint 2090 Job manual...
  • Page 121 Océ-Danmark A.S. Océ España SA Kornmarksvej 6 Business Park MAS BLAU DK 2605 Brøndby C/Osona2, 2-3a Planta Denmark 08820 El Prat del Llobregat (Barcelona) Spain Océ-France S.A. Océ-Svenska AB 32, Avenue du Pavé Neuf, P.O.box 1231 93161 Noisy-le-grand, Cedex S-164 28 Kista France Sweden Océ-Deutschland GmbH...
  • Page 122 Océ VarioPrint 2090 Job manual...
  • Page 123 concatenation 11 concatenation and chapterization 87 Index concepts 10 configuration 14 continue a print job 43 contradictions 98 controller initialising 22 2-sided from the glass plate 87 copy 73 copy document type 75 copy job 70 basic section 73 extra section 76 job settings 72 about the job queue 94 layout section 75...
  • Page 124 50 empty page between subsets 87 print a secure print job 51 error screens 101 put the océ varioprint 2090 into sleep mode extra section 76 image type 76 restart the océ smart imager 32...
  • Page 125 ® 65 maibox océ smart imager 14 graphical information 36 restart 31 mailbox 34 océ varioprint 2090 54 basic settings 39 off 22 create a new job in the job queue 40 offset stacking 13 delete jobs 45...
  • Page 126 43 platforms 108 resume a scan job 92 postscript print jobs 54 run-time contradictions 98 power modes 22 power state indicators 25 power switch 25 ppd 54 ppd (postscript printer description) 54 Océ VarioPrint 2090 Job manual...
  • Page 127 stop scanning 92 subsets 84 system information key 15 safety sleep mode 22 scan speed 108 scanner 14 scanner top left cover 19 scanning toner 108 stop 92 turn into sleep mode 29 secure print job 60 turn on the system 25 secure print jobs 51 types of copy job settings 72 pin code 51...

  • Page 128: Code Number

    Documentation Status Form Manual Name Océ VarioPrint 2090 Job manual INAP-name VP2090 JOB MAN GB 1060002595 Océ Codenumber Language Documentation Version 2003-04 Identified codenumber 28/09/99 Reviewed Planned Release Dates Approved/Final Reviewed Approved February 26, 2003 Status Final February 26, 2003...

Table of Contents
