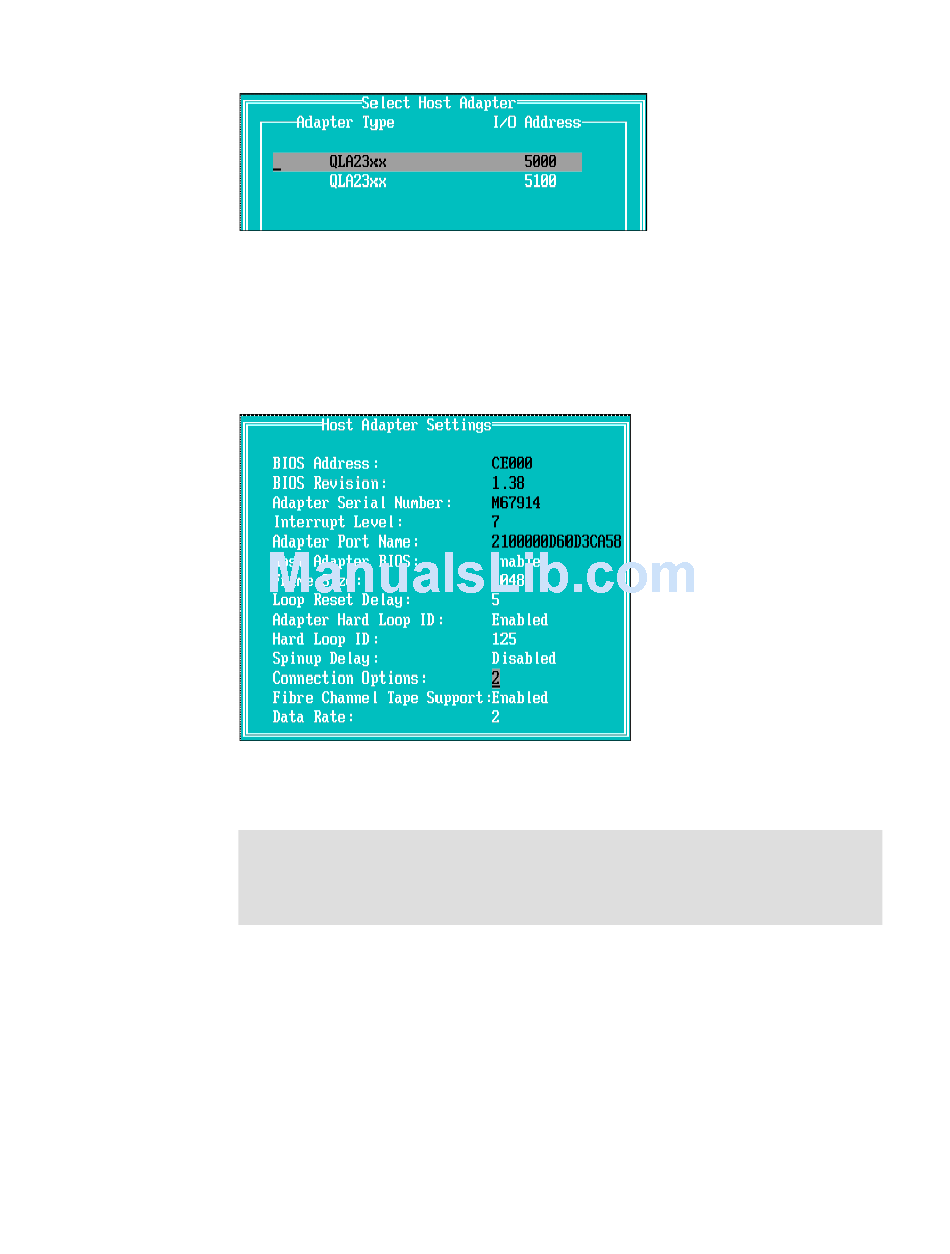

Figure 20-26 Use the cursor to select the HBA
c. In the Fast!UTIL Options screen, select Configuration Settings and press ENTER.
d. In the Host Adapter Settings screen, select Host Adapter BIOS and press ENTER to
set the value to Enabled and shown in Figure 20-27. While on this screen, you can
make a note of the Adapter Port Name. It will be necessary in order to do the zoning
configuration and do the mapping in Storage Manager.
Figure 20-27 Select Enabled for Host Adapter Bios
e. Repeat the steps from step c for the second adapter with the I/O Address 5100.
4. Consider to disable the planar SAS if it won't be used anymore. To do that, the procedure
is the following:
a. Press "F1" when the system is booting up as shown in Figure 20-28 on page 629 to
enter BIOS configuration menu.
628
IBM System Storage DS3500: Introduction and Implementation Guide
Note: Boot level failover is not supported in the HBA Bios. Booting from SAN
requires selecting the Logical Drive with the lowest LUN number. This storage
subsystem is active-passive type, because of that, the selected Logical Drive
must also be in its preferred controller.
