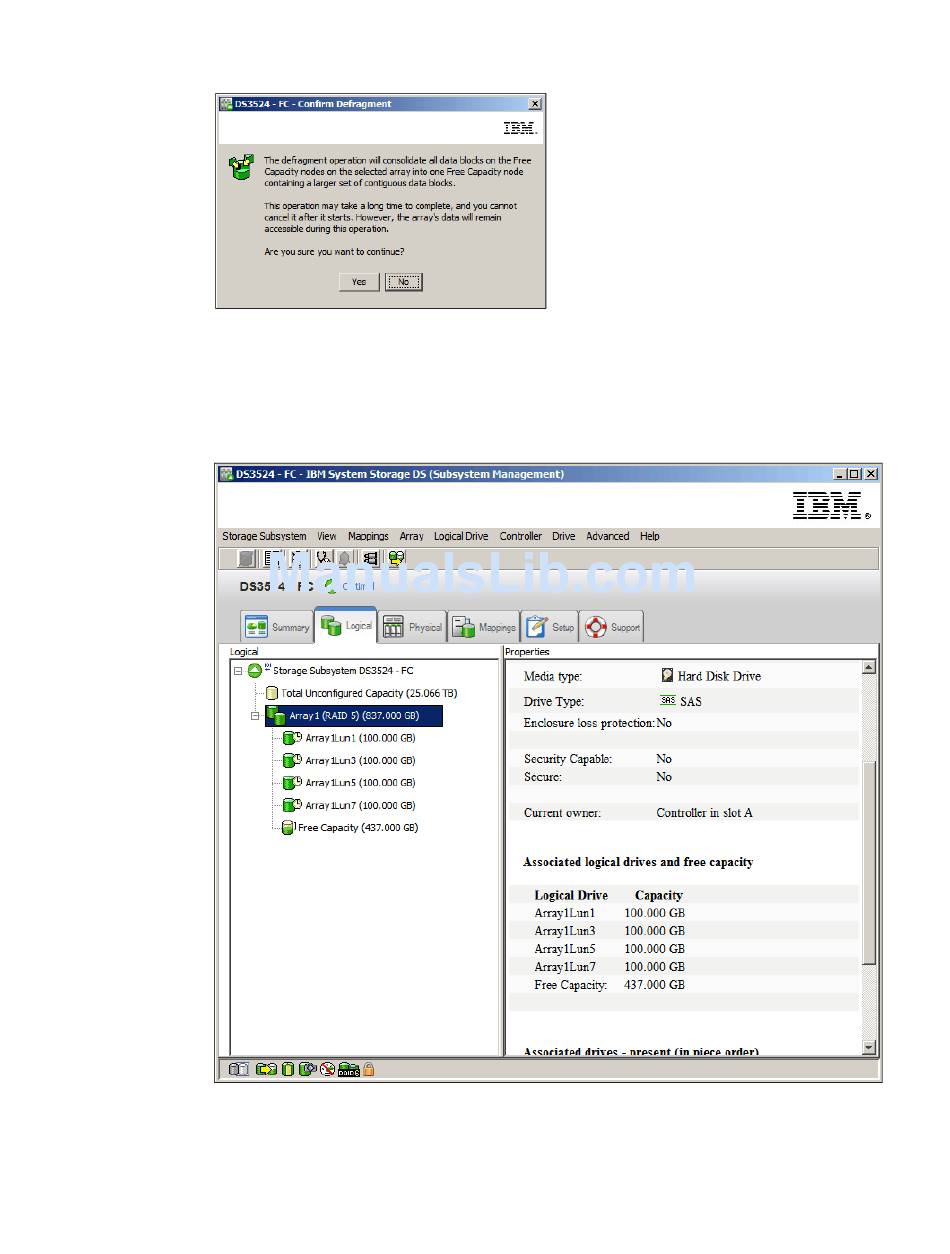

Figure 14-149 Defragment Array - confirm
3. Click the Yes button. All of the free data blocks on the Free Capacity nodes are
consolidated into one Free Capacity node that contains a larger set of contiguous data
blocks. The Logical tab is updated to show the larger, single Free Capacity node as shown
in Figure 14-150. You can select this Free Capacity node for logical drive creation.
Figure 14-150 Defragment Array completed
