Export The Array - IBM System Storage DS3500 Introduction And Implementation Manual

Draft Document for Review March 28, 2011 12:24 pm
Save the security key file, as discussed in 15.4.2, "Save security key file" on page 469.
Obtain blank canisters or new drives to be inserted in the DS3500 when the drives are
removed.
On the target DS3500:
Verify that there are available drive slots to host the disk drives.
Check that the drives that are being moved are supported. The Drive Security premium
feature should be already enabled, as shown in Figure 15-5 on page 456.
Verify that the firmware is the same on the target DS3500 as the source DS3500, and is
up to date.
Unlock drives before importing the array.

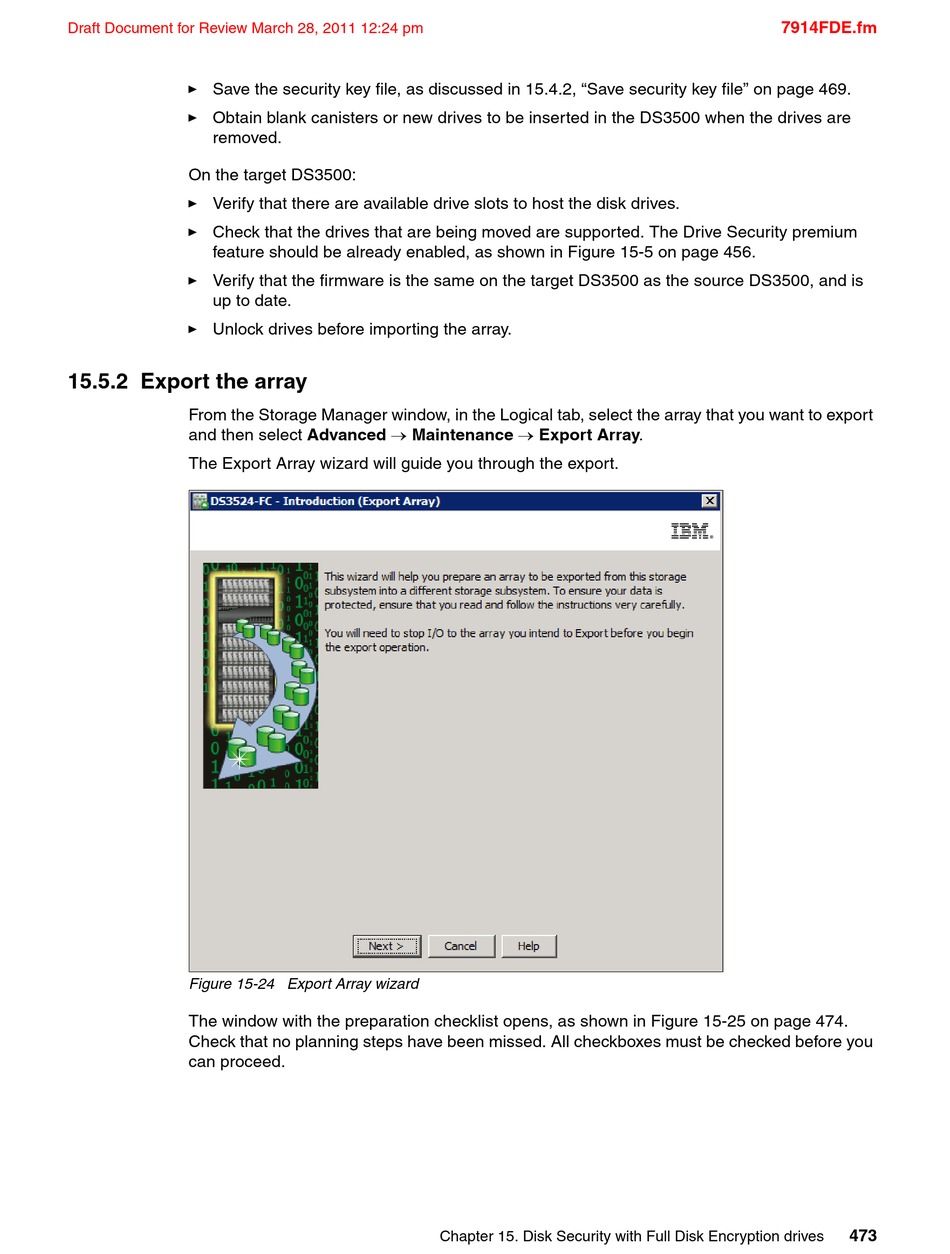

15.5.2 Export the array

From the Storage Manager window, in the Logical tab, select the array that you want to export
and then select Advanced  Maintenance  Export Array.
The Export Array wizard will guide you through the export.
Figure 15-24 Export Array wizard
The window with the preparation checklist opens, as shown in Figure 15-25 on page 474.
Check that no planning steps have been missed. All checkboxes must be checked before you
can proceed.
Chapter 15. Disk Security with Full Disk Encryption drives
7914FDE.fm
473
