Access Control - Draytek VIGOR3300V+ User Manual

4.1.4 Access Control

This page allows you to determine which services (HTTP/Telnet/SSH) is used for the user to
access Vigor router. In addition, you can also limit some hosts to access router Series with
specified IP address.

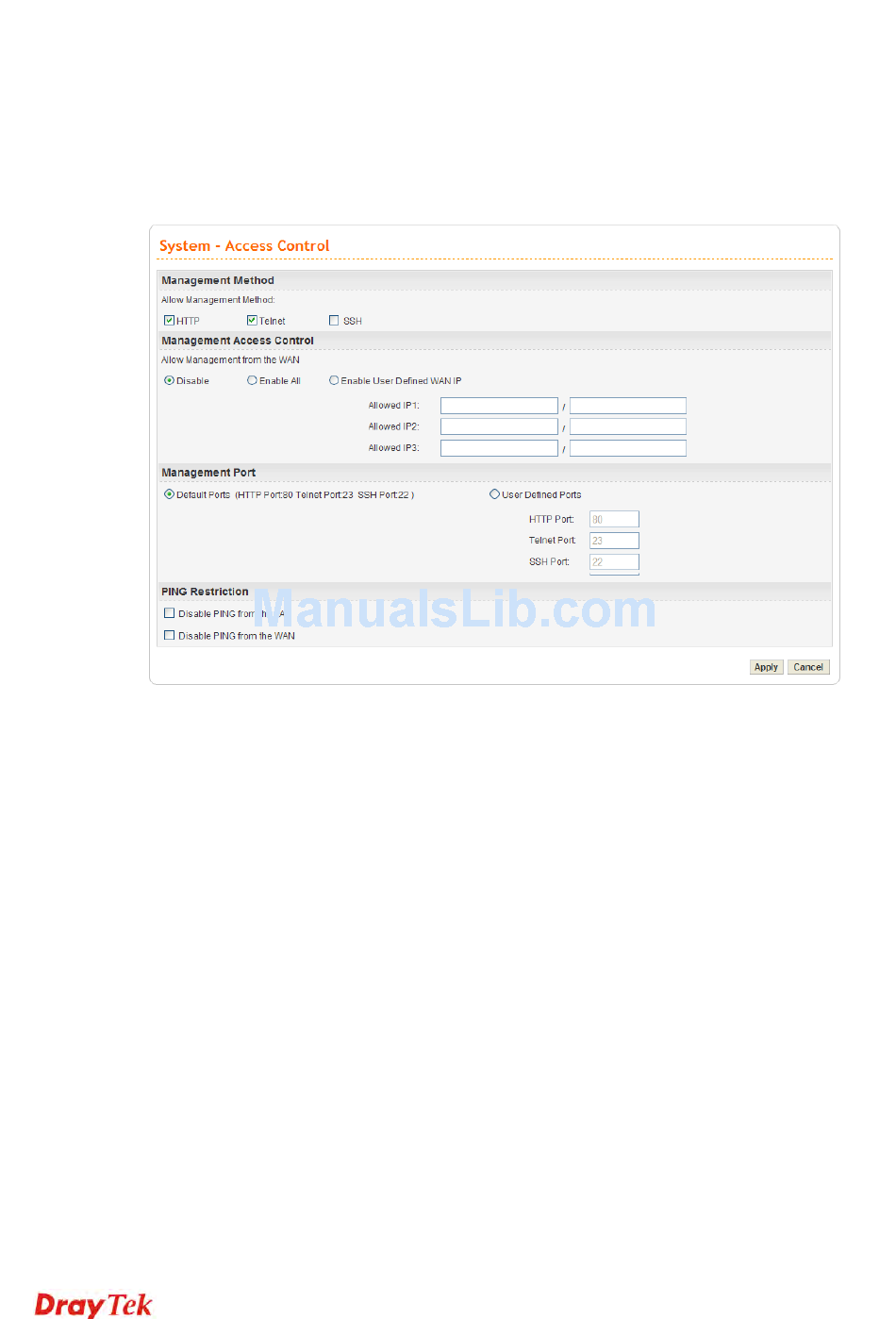

Open System>> Access Control. You will get the following page:
Management Method
Allow Management from
the WAN
Management Port
PING Restriction
There are several servers provided by the system to allow you
managing the router from Internet. Check the box(es) to
specify.
You could specify that the system administrator can only
login from a specific host or network defined in the list. A
maximum of three IPs/subnet masks is allowed.
Disable - Disable the management from the WAN interface.
Enable All - Enable all management (through
HTTP/Telnet/SSH) from the WAN interface.
Enable User Defined WAN IP - System can be managed by
these three IP addresses via WAN.
Allowed IP1 ~ IP3 – The former box indicates an IP address
allowed to login to the router, and the later box indicates a
subnet mask allowed to login to the router.
Default Ports - Use the default ports for HTTP and Telnet if
you choose HTTP and Telnet as management methods.
User Defined Ports - Or you can assign new port numbers for
HTTP, Telnet and SSH respectively.
Disable PING from the LAN -Choose this function to reject
all ICMP packets from LAN side.
Disable PING from the WAN - Choose this function to
reject all ICMP packets from WAN side.
92
Vigor3300V+ Series User's Guide
