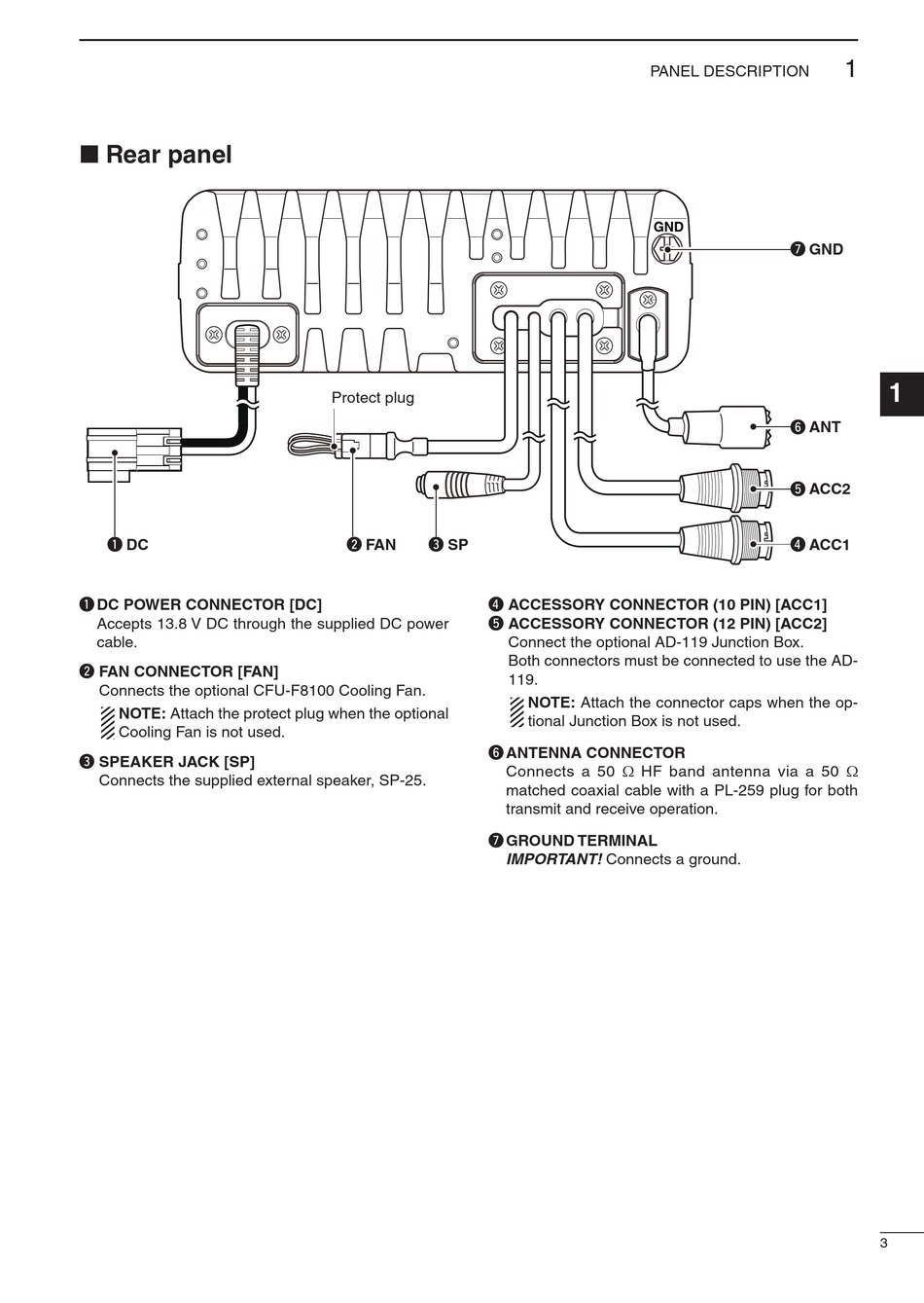

■ Rear panel

DC
q
q DC POWER CONNECTOR [DC]
Accepts 13.8 V DC through the supplied DC power
cable.
w FAN CONNECTOR [FAN]
Connects the optional CFU-F8100 Cooling Fan.
NOTE: Attach the protect plug when the optional
Cooling Fan is not used.
e SPEAKER JACK [SP]
Connects the supplied external speaker, SP-25.
Protect plug
FAN SP
w e
r ACCESSORY CONNECTOR (10 PIN) [ACC1]
t ACCESSORY CONNECTOR (12 PIN) [ACC2]
y ANTENNA CONNECTOR
u GROUND TERMINAL
PANEL DESCRIPTION
Connect the optional AD-119 Junction Box.
Both connectors must be connected to use the AD-
119.
NOTE: Attach the connector caps when the op-
tional Junction Box is not used.
Connects a 50 Ω HF band antenna via a 50 Ω
matched coaxial cable with a PL-259 plug for both
transmit and receive operation.
IMPORTANT! Connects a ground.
1
GND
u
1
ANT
y
2
3
ACC2
t
4
ACC1
r
5
6
7
8
9
10
11
12
13
14
15
16
17
3
