7
CONNECTION AND INSTALLATION

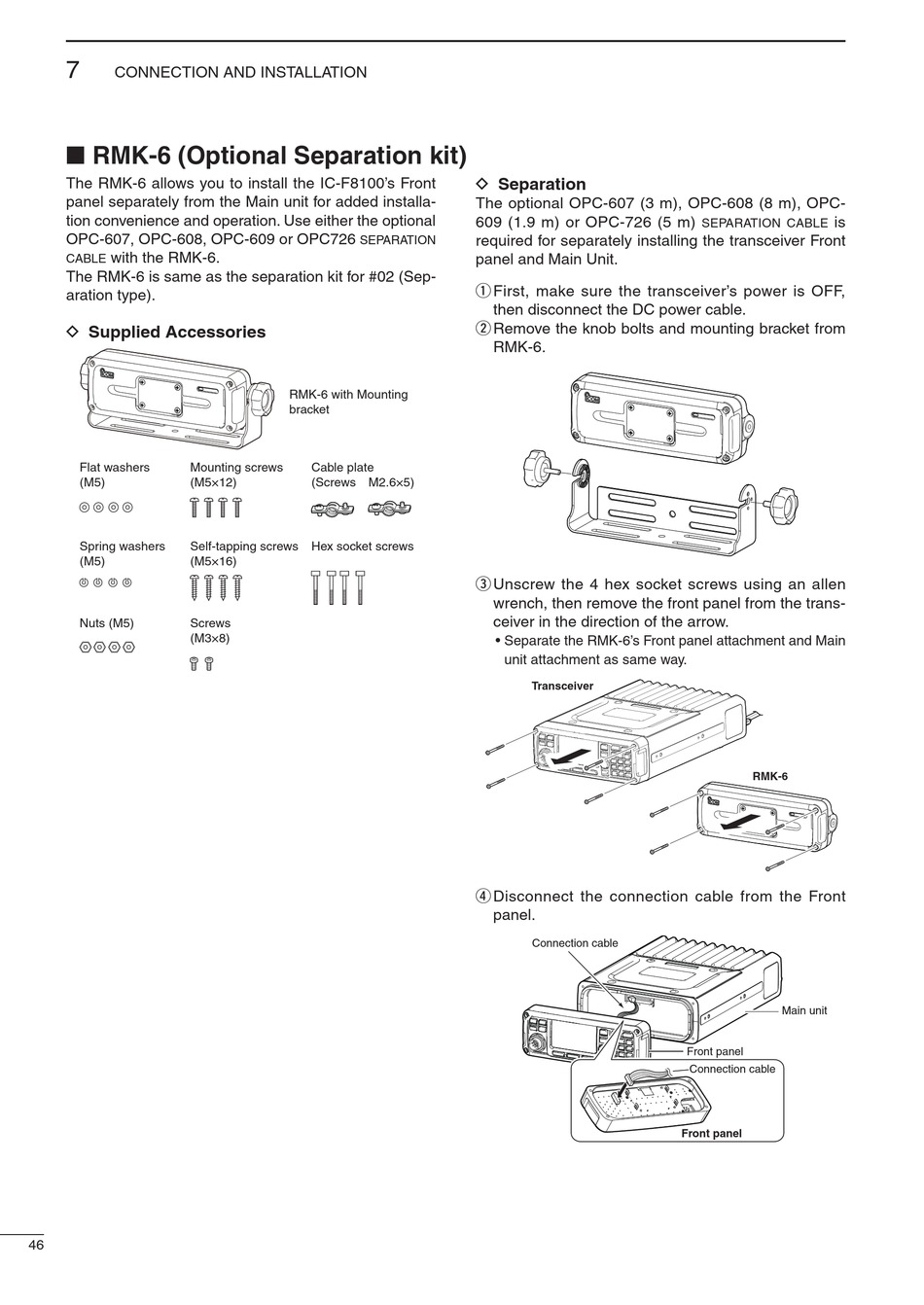

■ RMK-6 (Optional Separation kit)

The RMK-6 allows you to install the IC-F8100's Front
panel separately from the Main unit for added installa-
tion convenience and operation. Use either the optional
OPC-607, OPC-608, OPC-609 or OPC726
with the RMK-6.
cable
The RMK-6 is same as the separation kit for #02 (Sep-
aration type).
D Supplied Accessories
Flat washers Mounting screws
(M5) (M5×12)
Spring washers Self-tapping screws
(M5) (M5×16)
Nuts (M5) Screws
(M3×8)
46
separation
RMK-6 with Mounting
bracket
Cable plate
(Screws M2.6×5)
Hex socket screws
D Separation
The optional OPC-607 (3 m), OPC-608 (8 m), OPC-
609 (1.9 m) or OPC-726 (5 m)
required for separately installing the transceiver Front
panel and Main Unit.
q First, make sure the transceiver's power is OFF,
then disconnect the DC power cable.
w Remove the knob bolts and mounting bracket from
RMK-6.
e Unscrew the 4 hex socket screws using an allen
wrench, then remove the front panel from the trans-
ceiver in the direction of the arrow.
• Separate the RMK-6's Front panel attachment and Main
unit attachment as same way.
Transceiver
r Disconnect the connection cable from the Front
panel.
Connection cable
is
separation cable
RMK-6
Main unit
Front panel
Connection cable
Front panel
