Icom IC-F8100 Instruction Manual page 6

1
PANEL DESCRIPTION

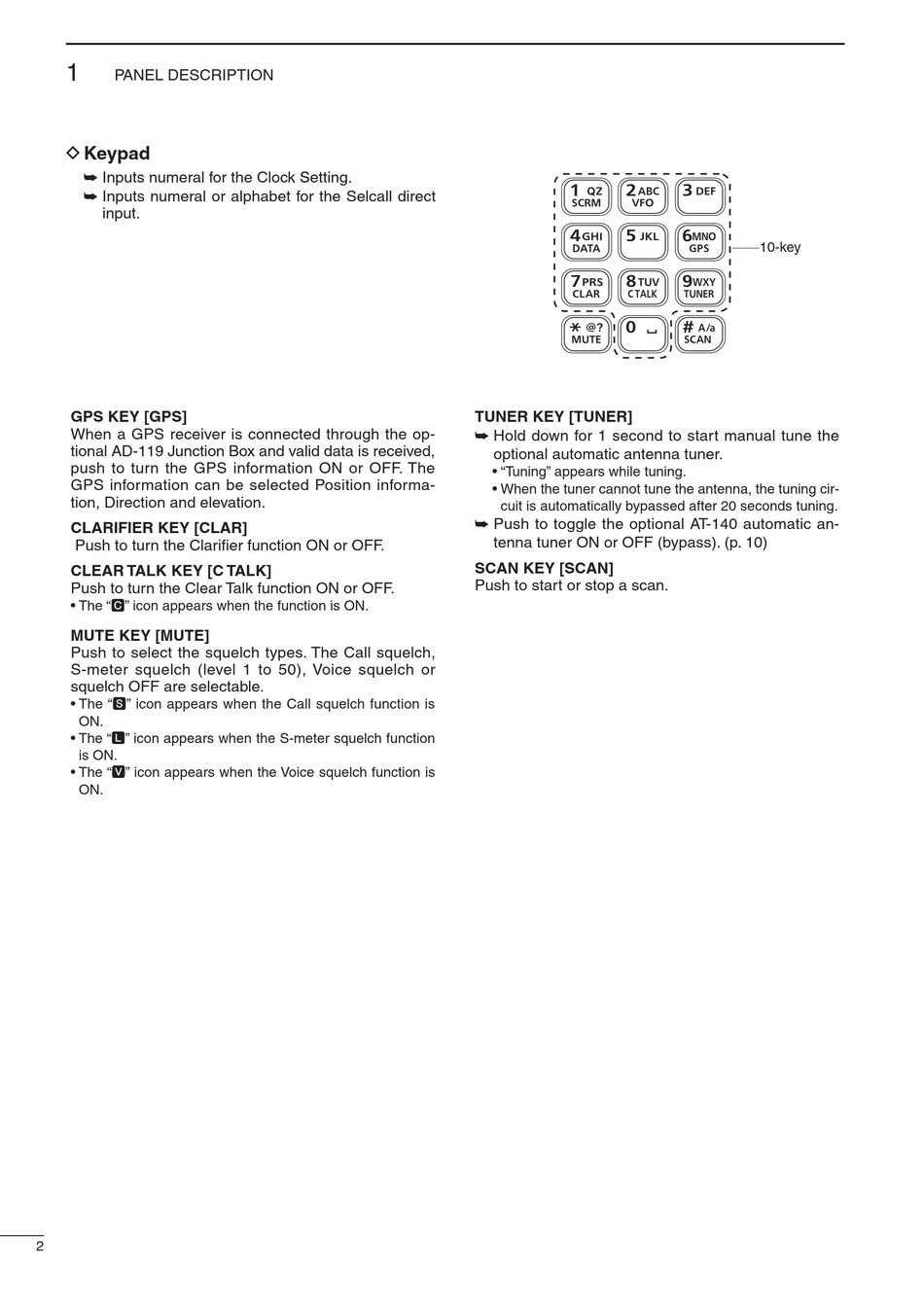

D Keypad
➥ Inputs numeral for the Clock Setting.
➥ Inputs numeral or alphabet for the Selcall direct
input.
GPS KEY [GPS]
When a GPS receiver is connected through the op-
tional AD-119 Junction Box and valid data is received,
push to turn the GPS information ON or OFF. The
GPS information can be selected Position informa-
tion, Direction and elevation.
CLARIFIER KEY [CLAR]
Push to turn the Clarifier function ON or OFF.
CLEAR TALK KEY [C TALK]
Push to turn the Clear Talk function ON or OFF.
• The "C" icon appears when the function is ON.
MUTE KEY [MUTE]
Push to select the squelch types. The Call squelch,
S-meter squelch (level 1 to 50), Voice squelch or
squelch OFF are selectable.
• The "S" icon appears when the Call squelch function is
ON.
• The "L" icon appears when the S-meter squelch function
is ON.
• The "V" icon appears when the Voice squelch function is
ON.
2
TUNER KEY [TUNER]
➥ Hold down for 1 second to start manual tune the
optional automatic antenna tuner.
• "Tuning" appears while tuning.
• When the tuner cannot tune the antenna, the tuning cir-
cuit is automatically bypassed after 20 seconds tuning.
➥ Push to toggle the optional AT-140 automatic an-
tenna tuner ON or OFF (bypass). (p. 10)
SCAN KEY [SCAN]
Push to start or stop a scan.
10-key
