7
CONNECTION AND INSTALLATION

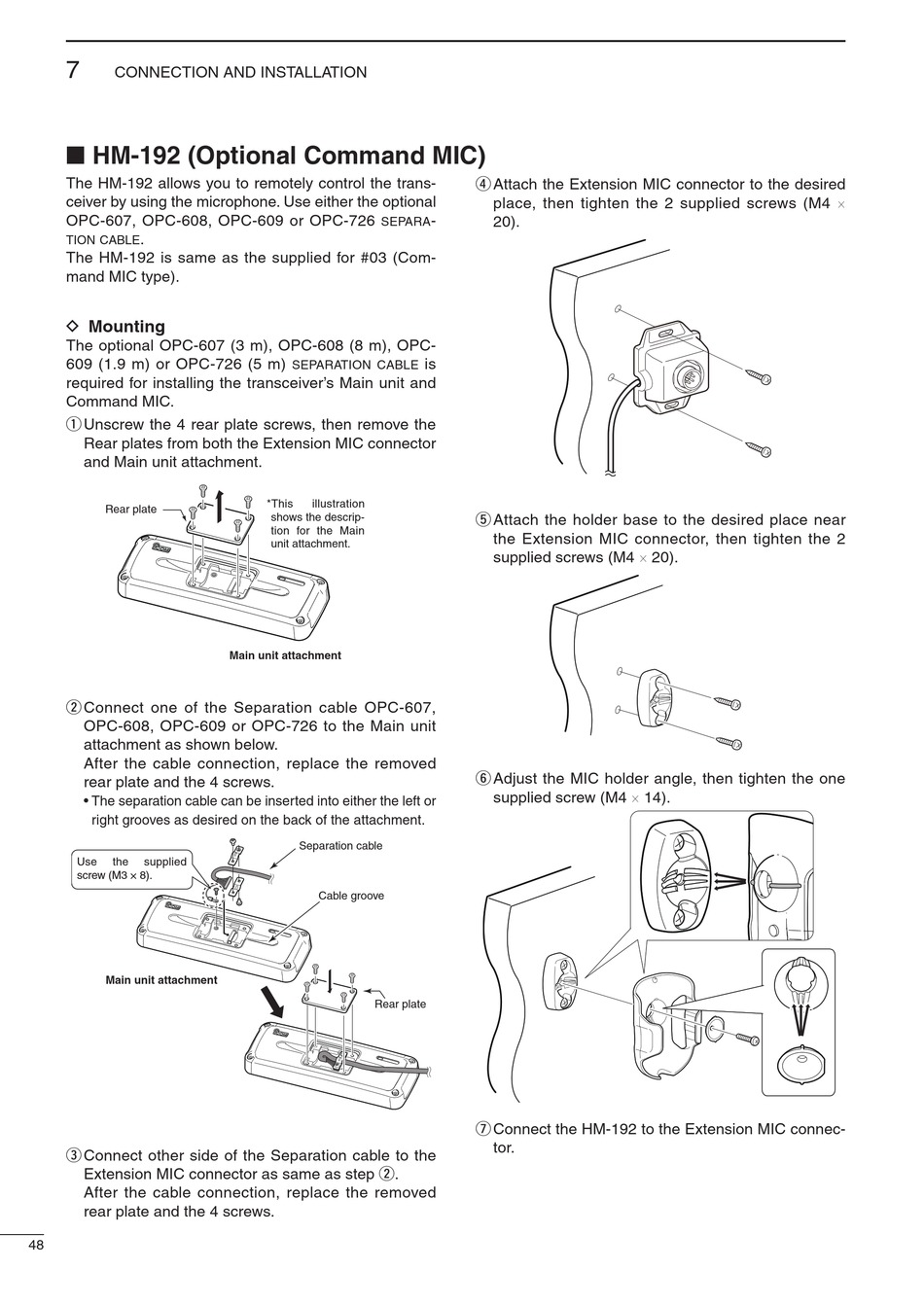

■ HM-192 (Optional Command MIC)

The HM-192 allows you to remotely control the trans-
ceiver by using the microphone. Use either the optional
OPC-607, OPC-608, OPC-609 or OPC-726
.
tion cable
The HM-192 is same as the supplied for #03 (Com-
mand MIC type).
D Mounting
The optional OPC-607 (3 m), OPC-608 (8 m), OPC-
609 (1.9 m) or OPC-726 (5 m)
required for installing the transceiver's Main unit and
Command MIC.
q Unscrew the 4 rear plate screws, then remove the
Rear plates from both the Extension MIC connector
and Main unit attachment.
Rear plate
w Connect one of the Separation cable OPC-607,
OPC-608, OPC-609 or OPC-726 to the Main unit
attachment as shown below.
After the cable connection, replace the removed
rear plate and the 4 screws.
• The separation cable can be inserted into either the left or
right grooves as desired on the back of the attachment.
Use the supplied
screw (M3 × 8).
Main unit attachment
e Connect other side of the Separation cable to the
Extension MIC connector as same as step w.
After the cable connection, replace the removed
rear plate and the 4 screws.
48
separa
separation cable
*This illustration
shows the descrip-
tion for the Main
unit attachment.
Main unit attachment
Separation cable
Cable groove
Rear plate
r Attach the Extension MIC connector to the desired
place, then tighten the 2 supplied screws (M4 ×
-
20).
is
t Attach the holder base to the desired place near
the Extension MIC connector, then tighten the 2
supplied screws (M4 × 20).
y Adjust the MIC holder angle, then tighten the one
supplied screw (M4 × 14).
u Connect the HM-192 to the Extension MIC connec-
tor.
