1
PANEL DESCRIPTION

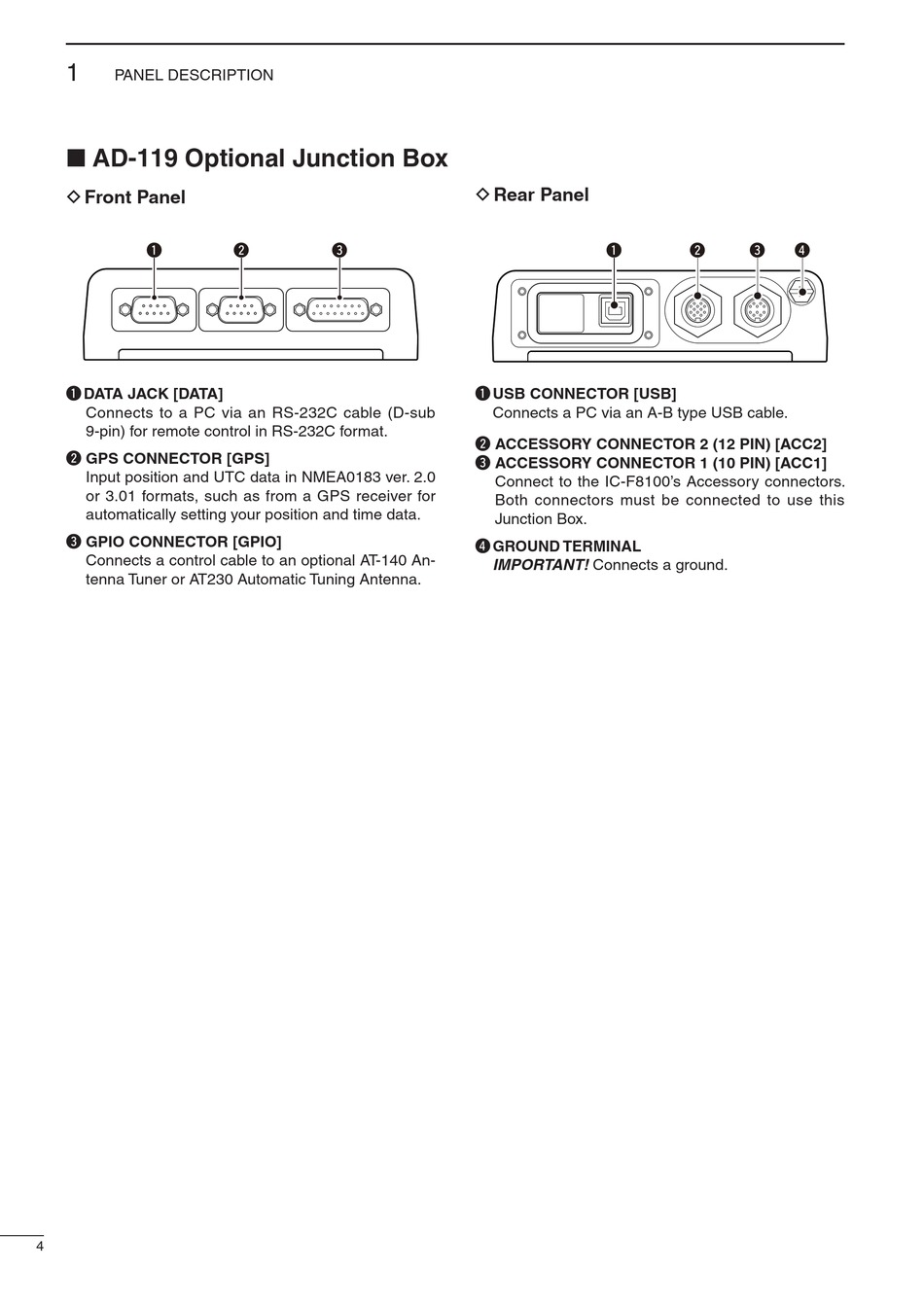

■ AD-119 Optional Junction Box

D Front Panel
q
q DATA JACK [DATA]
Connects to a PC via an RS-232C cable (D-sub
9-pin) for remote control in RS-232C format.
w GPS CONNECTOR [GPS]
Input position and UTC data in NMEA0183 ver. 2.0
or 3.01 formats, such as from a GPS receiver for
automatically setting your position and time data.
e GPIO CONNECTOR [GPIO]
Connects a control cable to an optional AT-140 An-
tenna Tuner or AT230 Automatic Tuning Antenna.
4
w e
D Rear Panel
q
q USB CONNECTOR [USB]
Connects a PC via an A-B type USB cable.
w ACCESSORY CONNECTOR 2 (12 PIN) [ACC2]
e ACCESSORY CONNECTOR 1 (10 PIN) [ACC1]
Connect to the IC-F8100's Accessory connectors.
Both connectors must be connected to use this
Junction Box.
r GROUND TERMINAL
IMPORTANT! Connects a ground.
w e r
